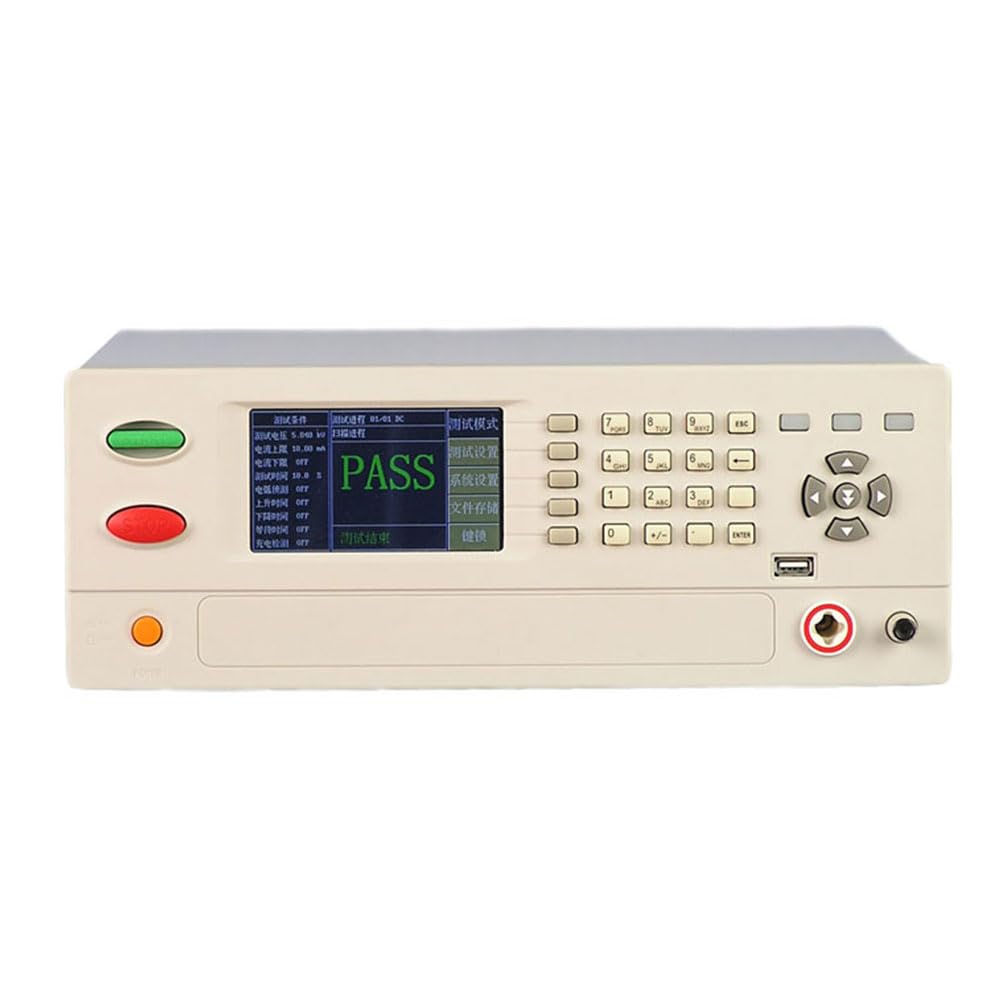

ZC7252 Single Channel Withstanding Voltage Insulation Resistance Tester 0.1MΩ~50GΩ AC 5kV 20mA DC 6kV 10mA

The withstand voltage tester is used to perform insulation strength tests on various electrical equipment, insulation materials, and insulation structures under specified voltages. It serves to:Evaluate the insulation performance of products,Identify insulation defects in test samples,Measure the capability to withstand overvoltage conditions

• 4.3-inch 16:9 color TFT LCD display;Fast discharge and arc detection function;Stores 9 test steps per group (5 groups total) for quick parameter switching; supports synchronized result saving and detailed statistical operations
• Output Voltage:AC 0.05kV ~ 5kV±(2%rdg+0.2%f.s.) (50Hz/60Hz selectable),DC 0.05kV ~ 6kV±(2%rdg+0.2%f.s.)
• Current Test Range:AC 0.01mA~20mA ±(2%rdg+0.2%f.s.),DC 0.1μA ~ 10mA ±(2%rdg+0.2%f.s.);Discharge Function:Forced discharge after test
• Insulation Resistance Test Function:0.1MΩ ~ 50GΩ,Current Test Range:10nA ~ 10mA;Discharge Function:Forced discharge after test
• Arc Detection Function:AC 1mA ~ 15mA,DC 1mA ~ 5mA;Interfaces RS232, HANDLER
