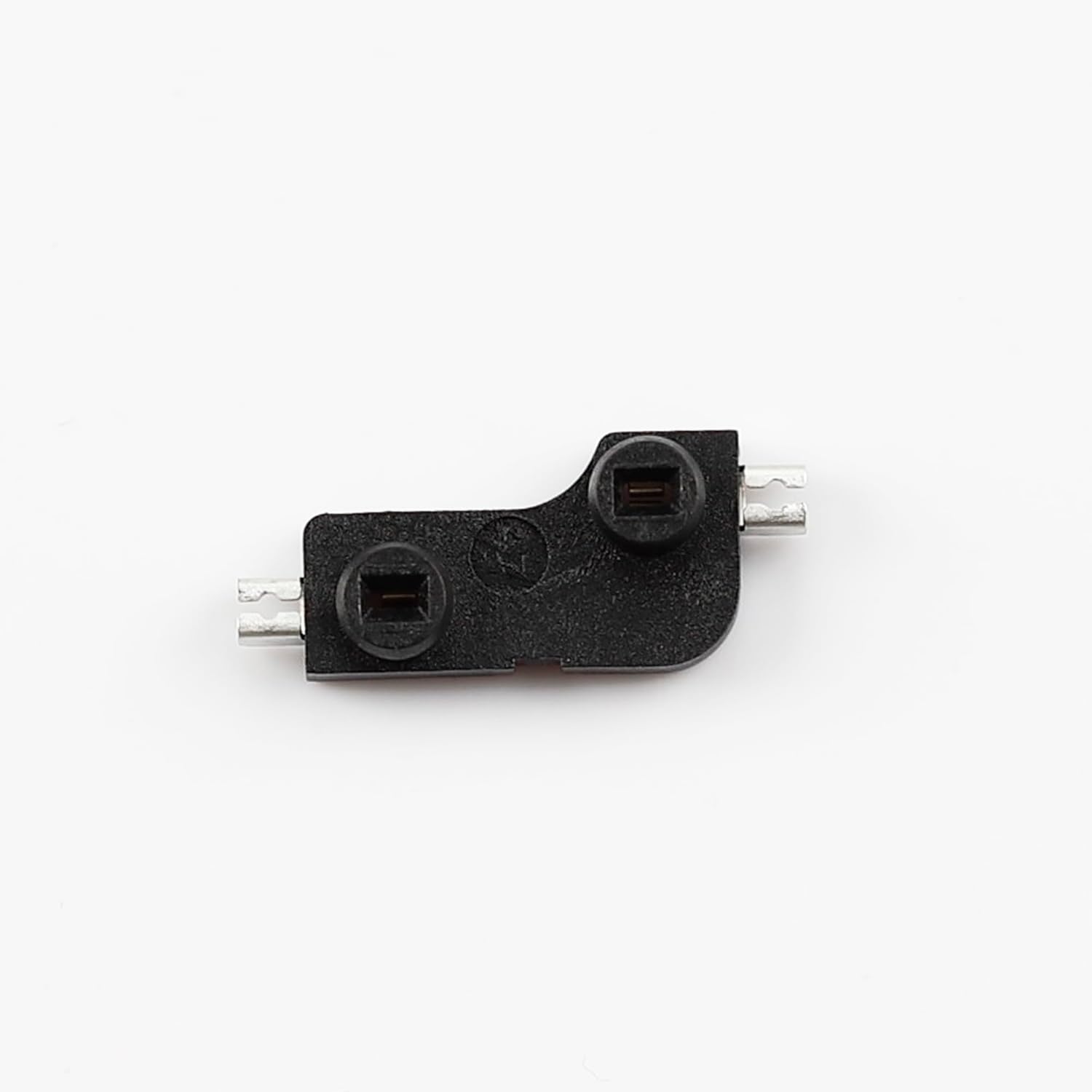

YMDK JWK SW-5-Hot-swappable PCB Socket V2 Sip Socket Hot Plug (50)

Package Included: JWK SW-5 Hot-swappable PCB Socket Sip socket Hot Plug Quantity 50/100/2000 as options Details: Alternative PCB Hot-Swappable Sockets for Kailh & Gateron It can be used to fix some problems in pcb,or some pcbs need the sockets to finish working by soldering. Mainly applied on computer keyboards,cash registers equipment and Man-Machine interface. Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum) Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum) Contact resistance: 200mΩ (maximum) Insulation resistance: 100mΩ (minimum) (100V DC) Withstand Voltage: AC100V(50-60Hz) Motion Force: 3.0kgf max Operating Life: 100 Cycles (can replace switches 100 times)

• Tool - Free Axis Swap：No soldering needed—easily change mechanical axes (Cherry/Kailh/Gateron) in seconds, perfect for quick feel customization
• Stable & Conductive：Premium metal contacts ensure reliable signal transmission; no key failure or loose connections during use
• Wide Compatibility：Fits most standard mechanical axes, letting you freely switch between tactile/linear types for gaming/typing
• Durable Build：Withstands 10,000+ insertions—tough plastic housing resists deformation from frequent axis changes
• Beginner - Friendly：Simple push/pull design for axis installation; no tech skills required to upgrade your keyboard at home
