Y.D.F Hi-Fi Audio Balun, 1 Pair Stereo RCA to Stereo AV Audio Extender Stereo Analog Audio Extender, Stereo RCA Audio Extender Over Cat5e/Cat 6/Cat7 Ethernet Cable

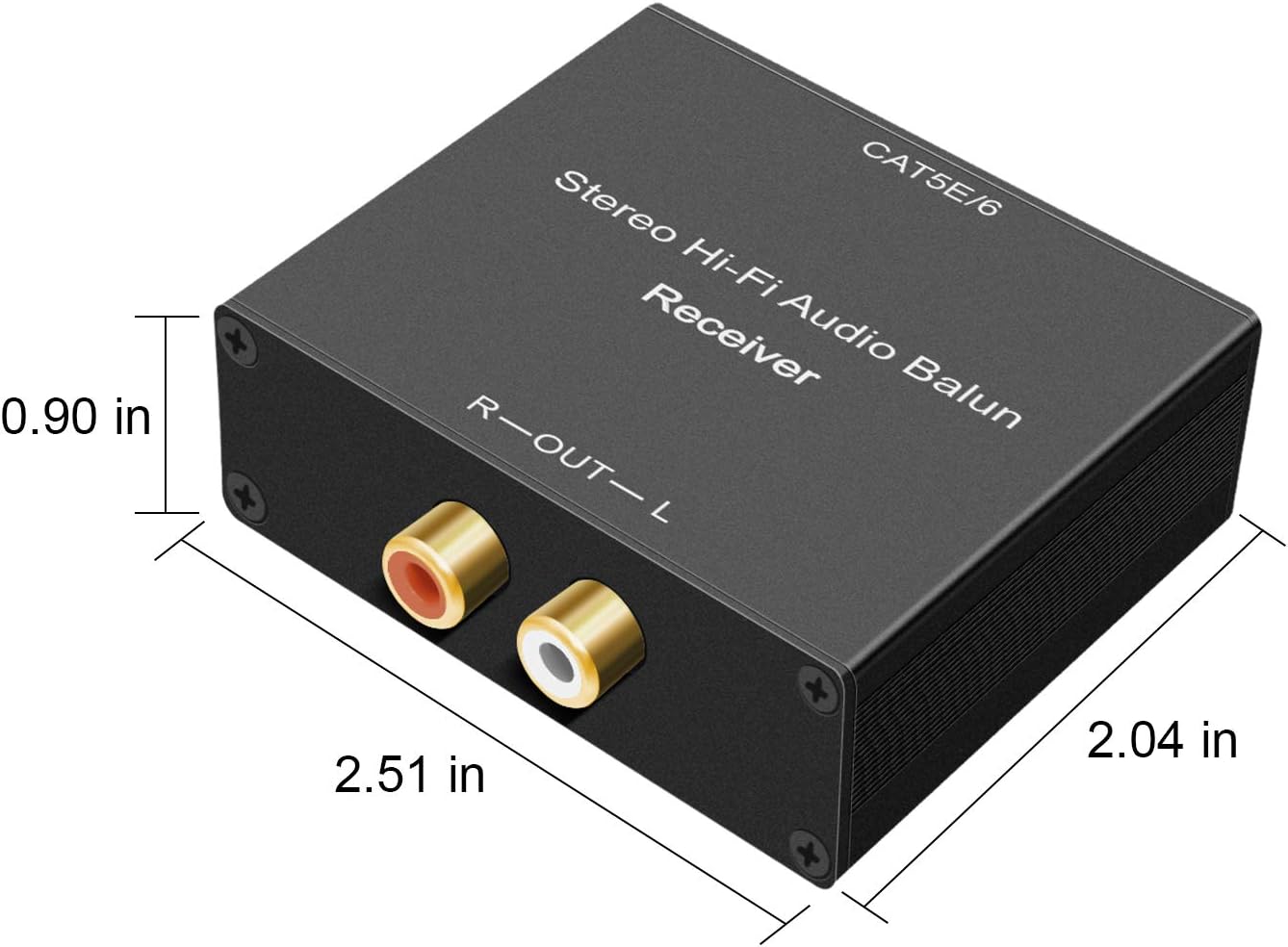

Stereo Hi-Fi Audio Balun Over Ethernet The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required. Used in pairs, the Stereo Hi-Fi Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment. The Stereo Hi - Fi Audio Balun allows one Analog Stereo Hi-Fi Audio to be transmitted Via Cat5/5e/6 Cable, up to 1000 foot-- 1600 foot in a point - to - point connection. It is built in surge suppressor to protect audio equipment against damaging voltage spikes. Its integrated ground loop isolation prevents annoying "hum-bars" common noise with long distance installations. Analog Audio Extender Applications Boardroom Systems, Classroom training, Auditoriums, Custom home installations, Intercom systems ect Sound Link Audio Maximum Input: 2V RMS Audio Source Impedance: 100 ohms maximum Audio Receiver Impedance: 10 k ohms minimum 3dB Bandwidth 20 Hz to 20 KHz over the distance range Insertion Loss per balun pair Less than 3 dB over the frequency range. Common Mode Rejection Greater than 60 dB @ 1KHz Greater than 40 dB over the frequency and distance range THDMaximum 0.007% @ 1 KHz over distance range Plug and Play: Left (White) and Right (Red) stereo audio RCA connectors Transmission Balun into the HI-FI audio output of the source component Receive Balun into your desired input component. Insert the Cat5e/Cat6 cable into both ends of the Baluns. NOTE: Usually use the length of 1000 foot--1650 foot. It can be up to 3280 foot, but there will be slight crosstalk.

• Stereo Hi-Fi Audio Balun: 2-CH Stereo Hi-Fi Audio Long Distance Transmission, Up to 1000 foot-- 1600 foot via Cat5e/Cat6
• Plug and Play Convenient and Fast, No power required.
• Audio Extender 3dB Bandwidth 20 Hz to 20 KHz over the distance range
• Audio Extender built in surge suppressor to protect audio equipment against damaging voltage spikes.
• Analog Audio Extender for DVD Players, Satellite Receivers, MPEG Players, Laptops, Hi-Fi Stereo Audio Amplifiers, Audio Switchers, AV Monitors, Powered Subwoofer other line level audio equipment
