TINGEN 1200W Grid Tie Inverter with LCD Solar Panel Input 55V-90V Battery Voltage Input 48V AC Output 90V-140V

TINGEN Solar Grid Tie Inverter

• Application: Solar panel input 55-90V, if you want to connect to battery, this grid-tied inverter battery voltage is 48V. AC output 90V-140V single phase. The grid-connected inverter can be applied to various types of photovoltaic modules, various types of batteries, DC switching power supplies, DC motors, etc. in the grid feed system or power supply type of load discharge, aging test and other systems
• High Efficiency with Built-in MPPT: MPPT efficiency is above 99%. Advanced Maximum power point tracking (MPPT) to ensure the high efficiency of system. High-efficiency and frequency transformer with sufficient patents
• Easy to Operate: This on grid inverter has LCD display, you can see the parameters on the display, clearly showing AC DC input output parameters. There are four working models (normal PV mode, PV limiter mode, battery CP mode and battery limiter mode), you can set it by yourself

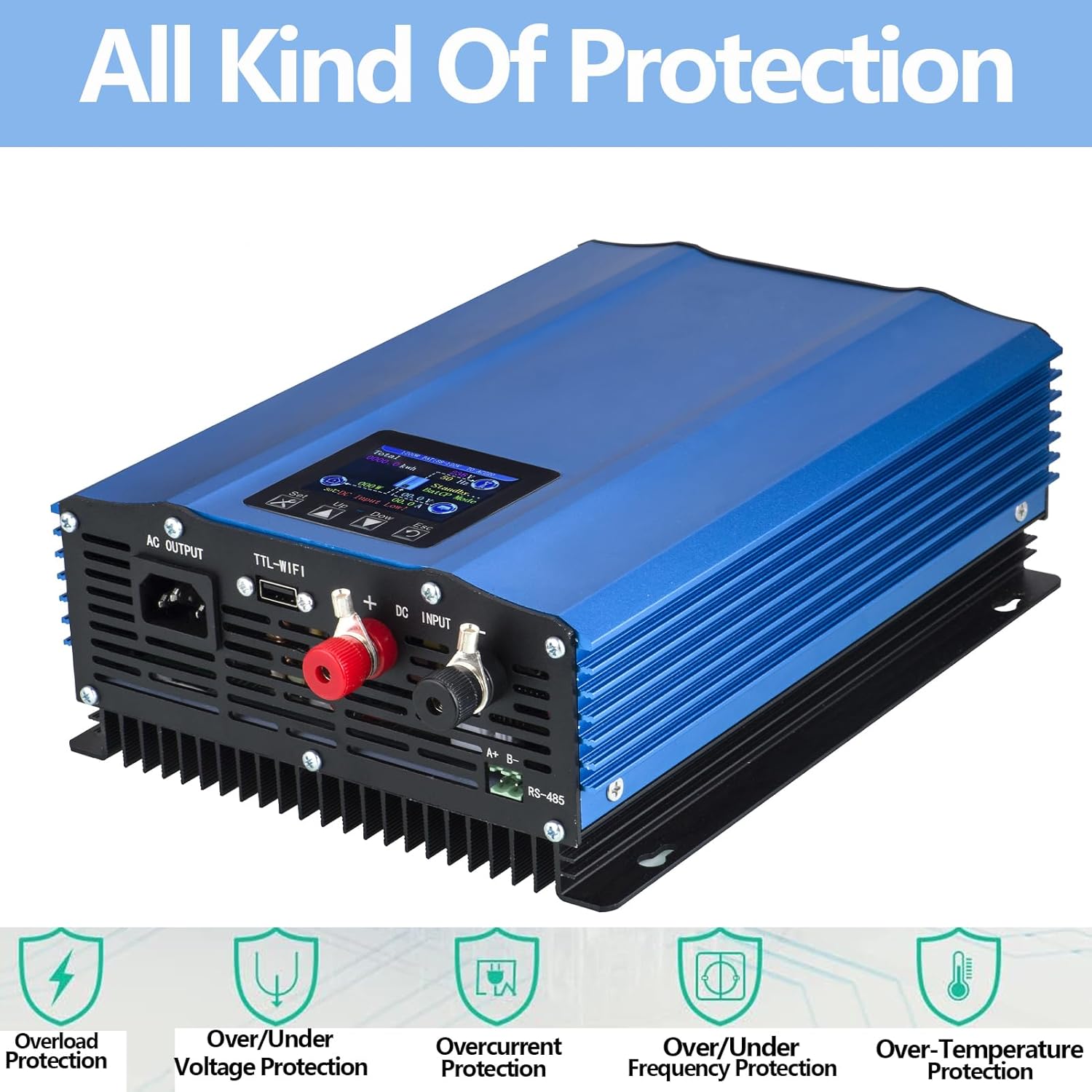

• High Quality Construction: This grid tie inverter is made of aluminum shell which is hard and difficult to damage. On grid inverter has built-in fans and aluminum shell which enables fast heat dissipation
• Power Limitation Function: The inverter has an additional function that allows it to last longer. When connected to battery, the maximum output power of a 1000W inverter is 700W, and 1200W inverter is 900W. This makes the inverter last longer when connected to battery. When connected to a solar panel, the maximum output of a 1000W inverter is 1000W, and 1200W inverter is 1200W. This design depends on the characteristics of the battery and solar panel
• Battery Protection Feature: When the inverter is connected to battery, this inverter outputs 800W due to the built-in battery protection function. Connection to solar panel is recommended for optimal performance
• LCD Display Features: The integrated LCD screen provides real-time monitoring of all critical parameters including voltage, current, power output, and operating mode status for convenient system management
