Temperature Acquisition Module 4-way PT100 RTD Ethernet RS485 with OLED Display Screen ME31-XDXX0400 Support Modbus

[Communication interface]：RJ45, RS485 [Working voltage]：DC 8~28V [Installation method]：Guide rail/screw [Introduction]：ME31-XDXX0400 is a PT100 thermal resistor temperature acquisition module with 4-channel PT100 temperature acquisition function, and supports the acquisition of 2/3-wire PT100 temperature sensors. It also has a display screen to facilitate customers to debug and configure on-site and view the temperature. This temperature acquisition module supports both network and RS485 communication interfaces, and supports Modbus TCP protocol or Modbus RTU protocol for acquisition. It can also be used as a Modbus gateway, automatically sending instructions from non-local Modbus addresses through the serial port/network port, supporting Modbus TCP and Modbus RTU protocol conversion, and convenient for expanding Modbus slave devices.

• ​​​​​​​Supports 4-channel 2/3-wire PT100 temperature sensor;High resolution: 0.1℃;High accuracy: ±1℃; Wide temperature measurement range: -200~850℃; High-precision 16-bit ADC;The sensor is not connected to the identification;

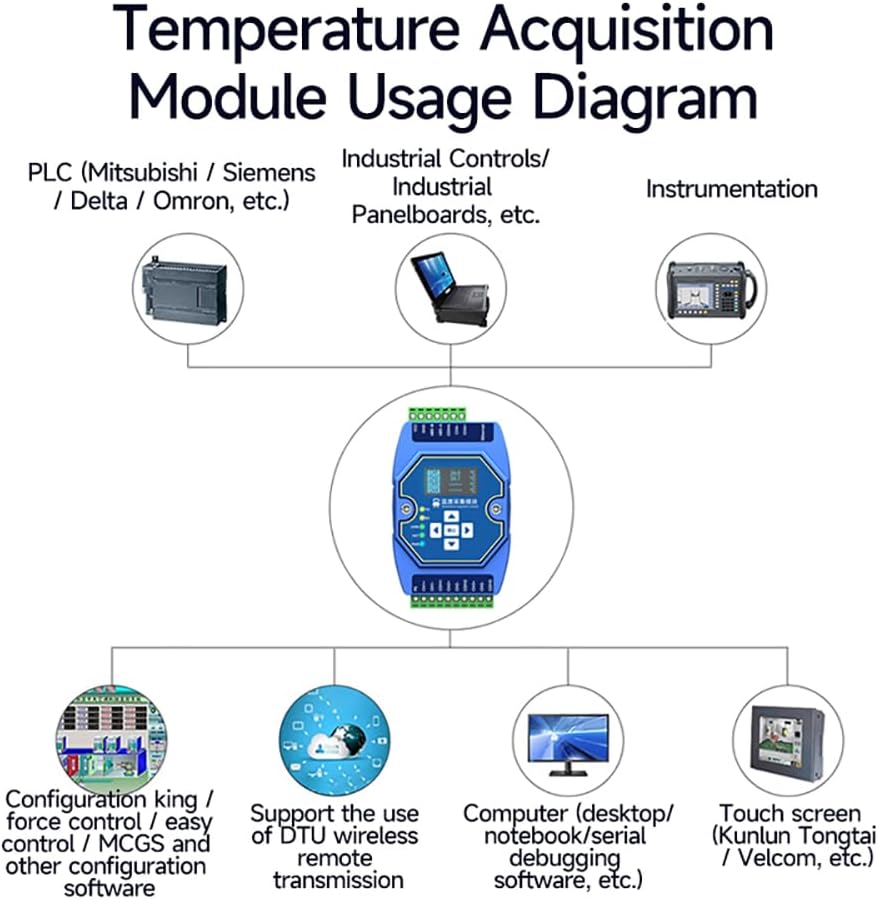

• 485 isolation, power isolation, power supply anti-reverse connection, lightning surge protection;Support rail installation or screw installation;Supports various configuration software/PLC/touch screens; Support RS485 Modbus RTU protocol acquisition;

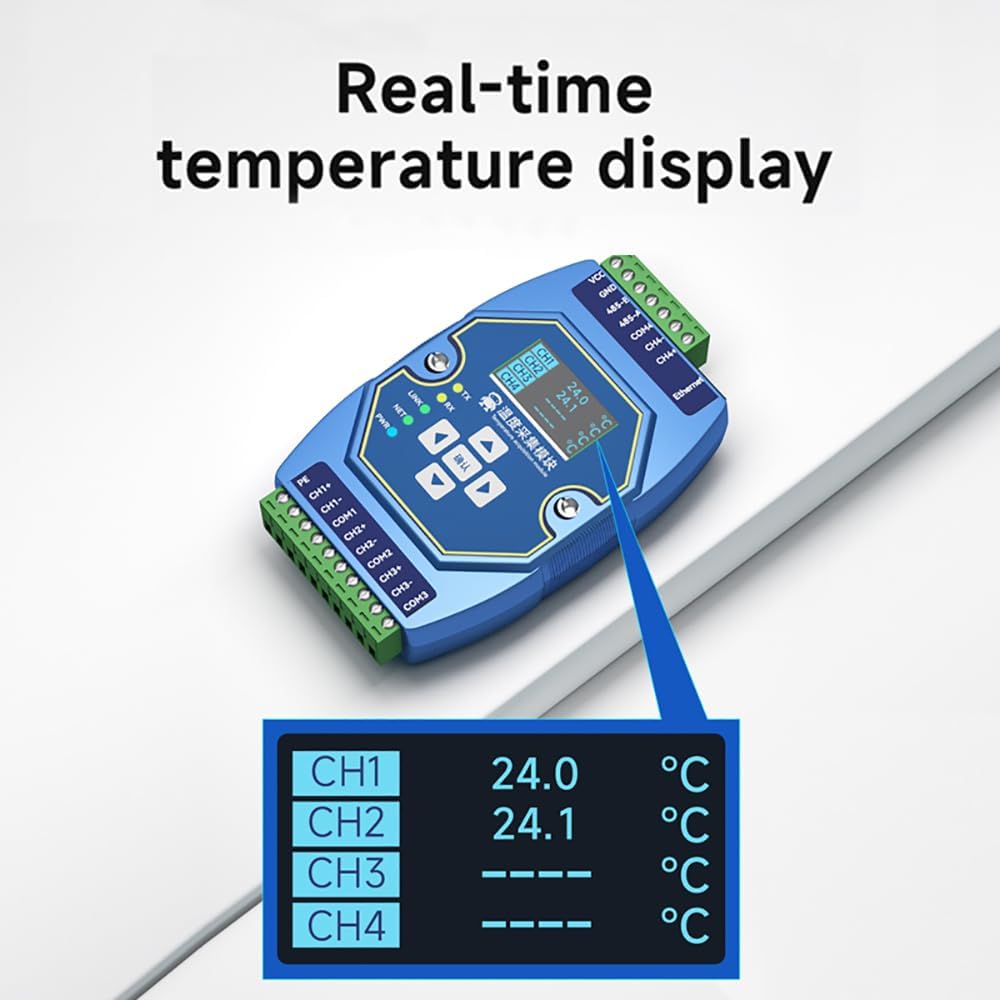

• Supports network Modbus TCP protocol collection and supports 4- way host access;Support OLED display to display channel temperature information
• Support configuring device parameters through buttons;Power, communication, and network link indicators; Supports rapid configuration of the host computer;Support custom Modbus address settings;Supports multiple baud rate configurations and verification configurations
• Support DHCP and static IP;Support DNS function and domain name resolution;Support Modbus gateway function;
