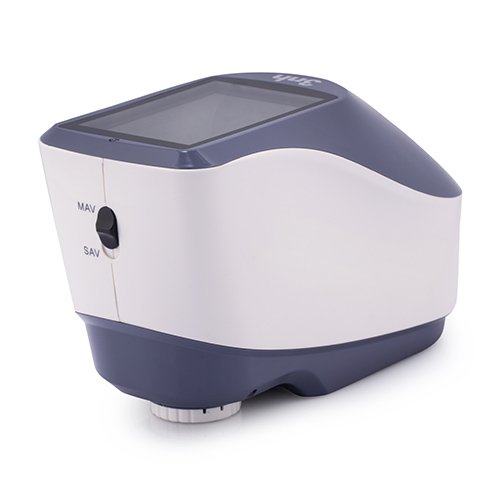

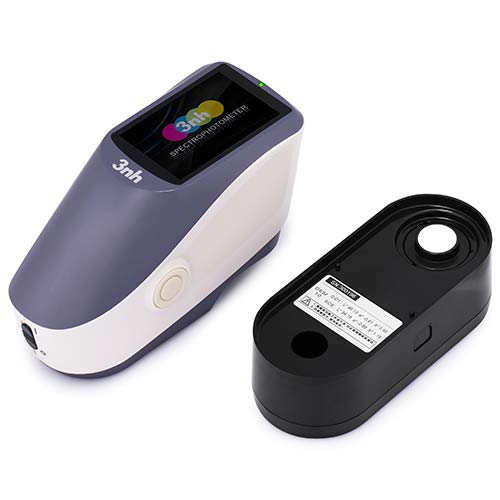

Spectrophotometer, High Precision Color Spectrophotometer with UV SCI/SCE, 8mm&4mm Apertures, PC Software

Specifications: Model: YS3060 Optical Geometry: Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) Integrating Sphere Size: 48mm Light Source: Combined LED Light, UV Light Spectrophotometric Mode: Concave Grating Sensor: 256 Image Element Double Array CMOS Image Sensor Wavelength Range: 400-700nm Wavelength Interval: 10nm Semiband Width: 10nm Measured Reflectance Range: 0-200% Measuring Aperture: Dual Aperture: 10mm/8mm & 5mm/4mm Specular Component: SCI&SCE Color Space: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Color Difference Formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter) Other Colorimetric Index: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness Observer Angle: 2°/10° Illuminant: D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 Displayed Data: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset Measuring Time: 2.6s Repeatability: MAV/SCI: ΔE*≤0.03 Inter-instrument Error: MAV/SCI: ΔE*≤0.15 Measurement Mode: Single Measurement, Average Measurement Locating Method: Camera View Finder Locating Battery: Li-ion battery. 5000 measurements within 8 hours Dimension: L*W*H=184*77*105mm Weight: 600g Illuminant Life Span: 5 years, more than 3 million times measurements Display: 3.5-inch TFT color LCD, Capacitive Touch Screen Data Port: USB Data Storage: Standard 2000 Pcs, Sample 20000 Pcs Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude <2000m Storage Environment: -20~50℃, 0~85%RH (no condensing) Standard Accessories: 1 x Power Adapter 1 x Built-In Li-ion Battery 1 x User Guide 1 x PC Software 1 x White and Black Calibration Cavity 1 x Dust Cover

• D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
• Use long life and low power consumption combined LED light source
• Switchable 8mm/4mm aperture, support both SCI and SCE at the same time
• Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission
• High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor
• Large capacity storage space, over 20,000 measurement data
• Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of demand for color measurement
• Camera Locating Function, better position

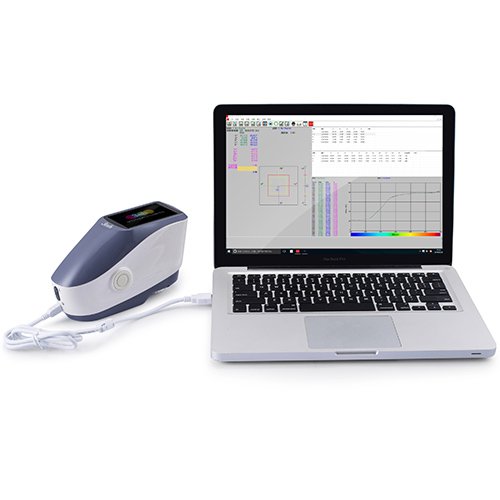

• PC software has a powerful function extension
