Smart Tweezers LCR-Reader Revision 2: Digital Multimeter LCR-Meter

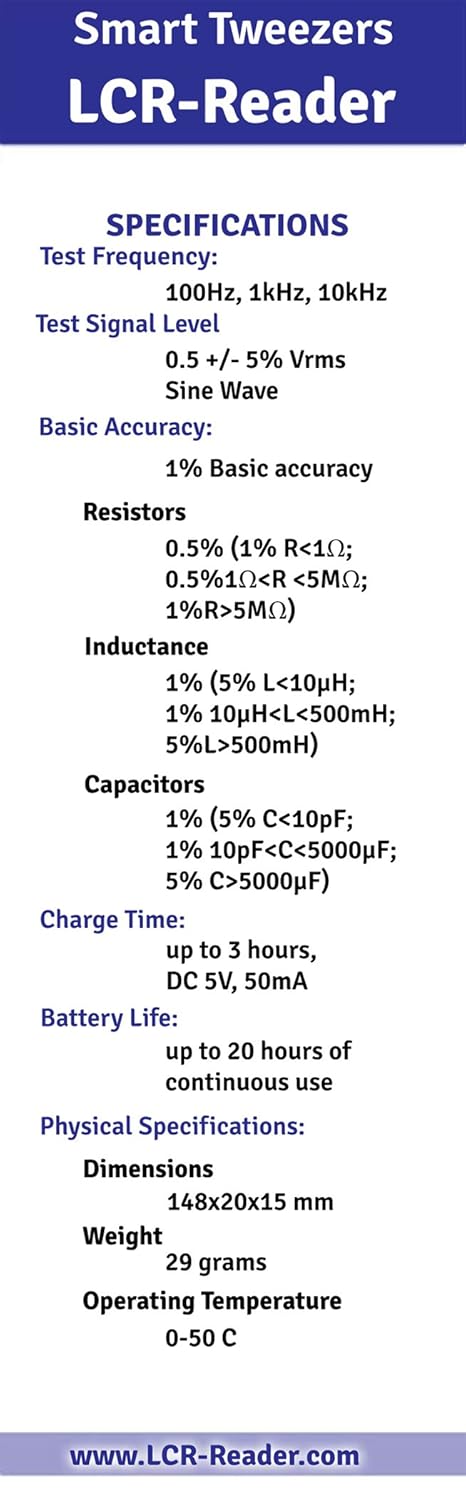

LCR-Reader is a handheld LCR- and ESR-meter with fully automatic measurements. The device will automatically determine the type of component before measuring with a 0.5% basic accuracy; LCR-Reader will also automatically measure for any secondary values, such as the Equivalent Series Resistance (ESR). The gold-plated tweezer tips can grasp and hold any component to a 0201 size (0.3 mm), including mounted components. All measurement results, including main and secondary impedance values are instantly displayed on the OLED screen. The component type, test mode and frequency used are also displayed. It has a one-button navigation that cycles through the test modes with each press. Features: Basic Accuracy of 0.5% Fully automatic L, C, R and ESR measurements Manual mode selection Instantaneous results Gold-plated tweezer probes Li-Ion battery with micro-USB charging 1 oz. weight One-button navigation Hard carrying case NIST Traceable Calibration Certificate

• Automatic and manual LCR & ESR measurements
• 0.5% Basic Accuracy
• No Set-Up Between Measurements
• Lightweight, Ergonomic Design
• Gold-Plated Tweezer Probes
