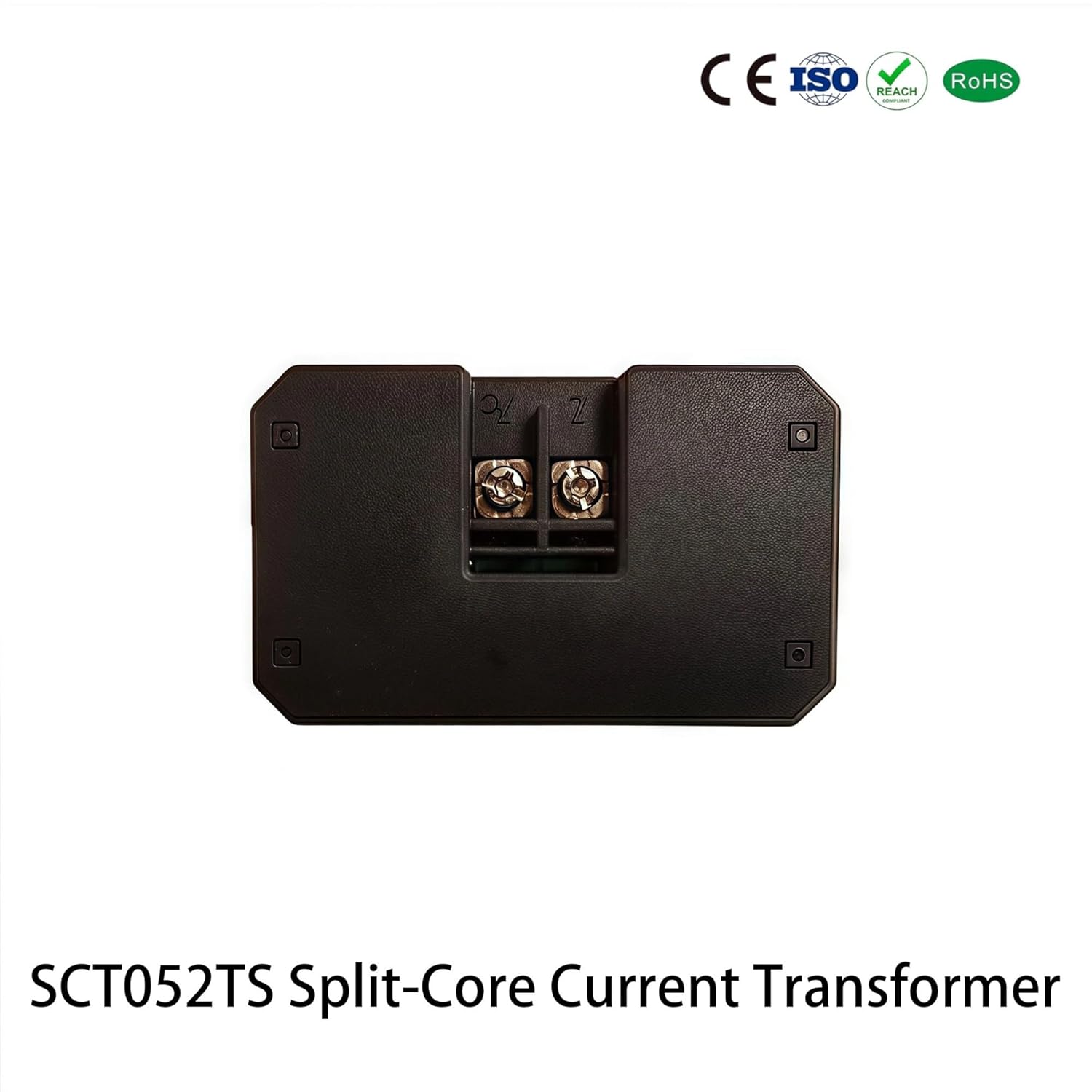

SCT052TS Input 500A/600A/800A/1000A Output 1A/5A Accuracy 1% Split Core Current Sensor AC Current(500A-5A 1)

Sensor Blocks500A-1000A Split Core Current SCT052TSSplit core current are usually installed on current intensive power lines or equipment, and output the measured current signals to users for monitor measurement or protection.Characteristic:Opening size is 52mm,safety lock buckle, easy installation, screw terminal output.Application:Current measurement, monitoring and piotection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,air-condition equipment and automation-control system.Current, power and energy monitoring device.Relay protection device.Charging pile anddata center: : YHDCMounting type: Free hanging (In-Line)Material of core:Laminated silicon steelApplicable standards:GB20840-2014Operating temperature:-25-+60Storage temperature:-30-+90Frequency range:50Hz-60HzWaterproof grade: IP00Dielectric strength:Input (bare conductor)/Output AC 800V/1min 50HzOutput/housing AC 3.5KV/1min 50Hz==========High-concerned chemical : Noneis_customized : YesCoil Structure : Split core current Model Number : SCT052TSCoil Number : current Phase : SINGLECertification : Use : Current
