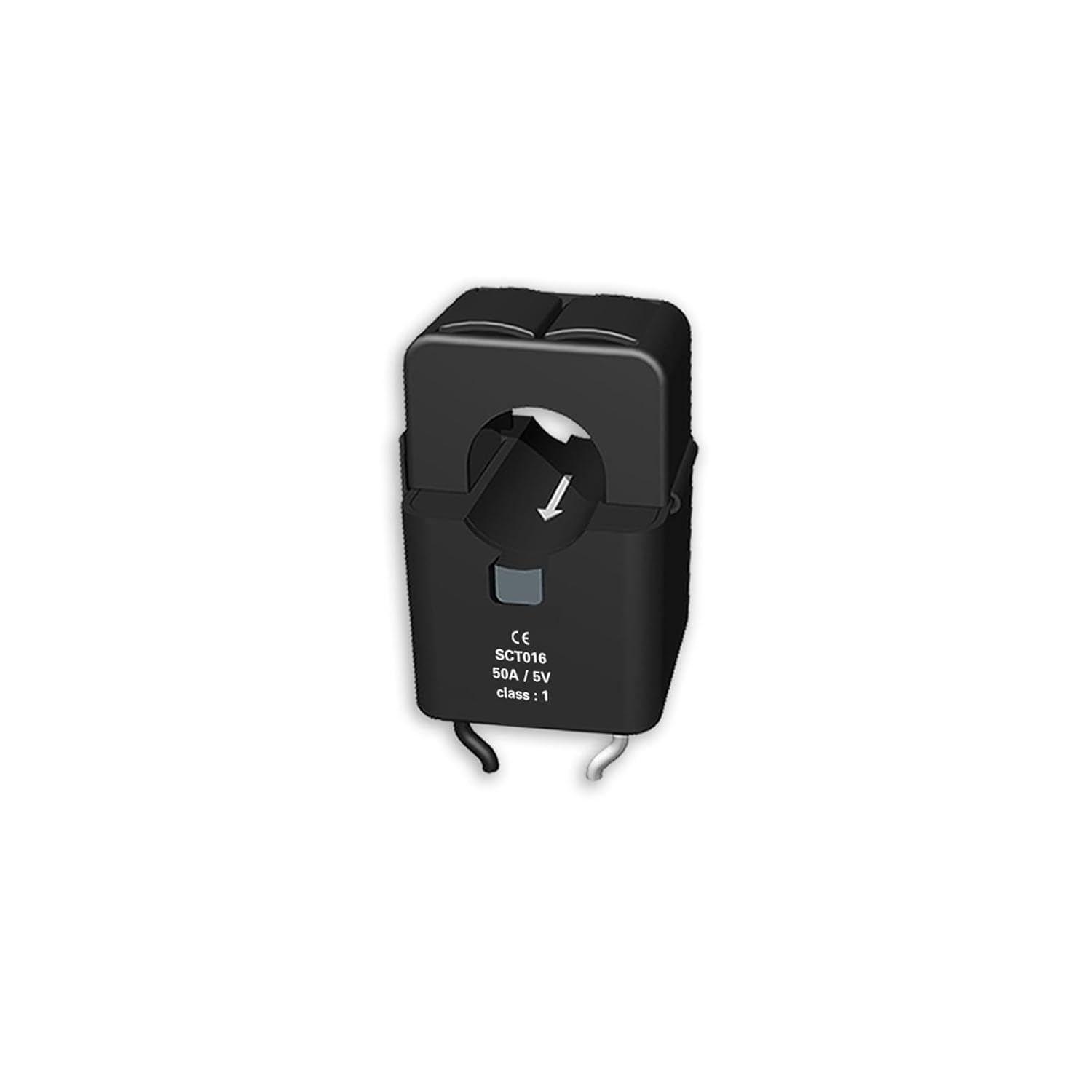

SCT016 Input 10A/30A/50A/80A100A/120A Output 0.333V Accuracy 1% Split Core Current(100A-5V 1)

Sensor BlocksSplit core current are usually installed on current intensive power lines or equipment, and output the measured current signals to users for monitor measurement or protection.Characteristic:Opening size is16mm,safety lock buckle, easy installation, cable output.Application:Current measurement, monitoring and piotection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,air-condition equipment and automation-control system.Current, power and energy monitoring device.Relay protection device.Charging pile anddata center:Mounting type: Free hanging (In-Line)Material of core:FerriteApplicable standards:GB20840-2014Operating temperature:-25-+60Storage temperature:-30-+90Frequency range:50Hz-1KHzWaterproof grade: IP00Dielectric strength:Input (bare conductor)/Output AC 800V/1min 50HzOutput/housing AC 3.5KV/1min 50HzProduct specification==========High-concerned chemical : Noneis_customized : YesCoil Structure : ToroidalModel Number : SCT016Coil Number : EncapsulatedPhase : SINGLECertification : Use : Current
