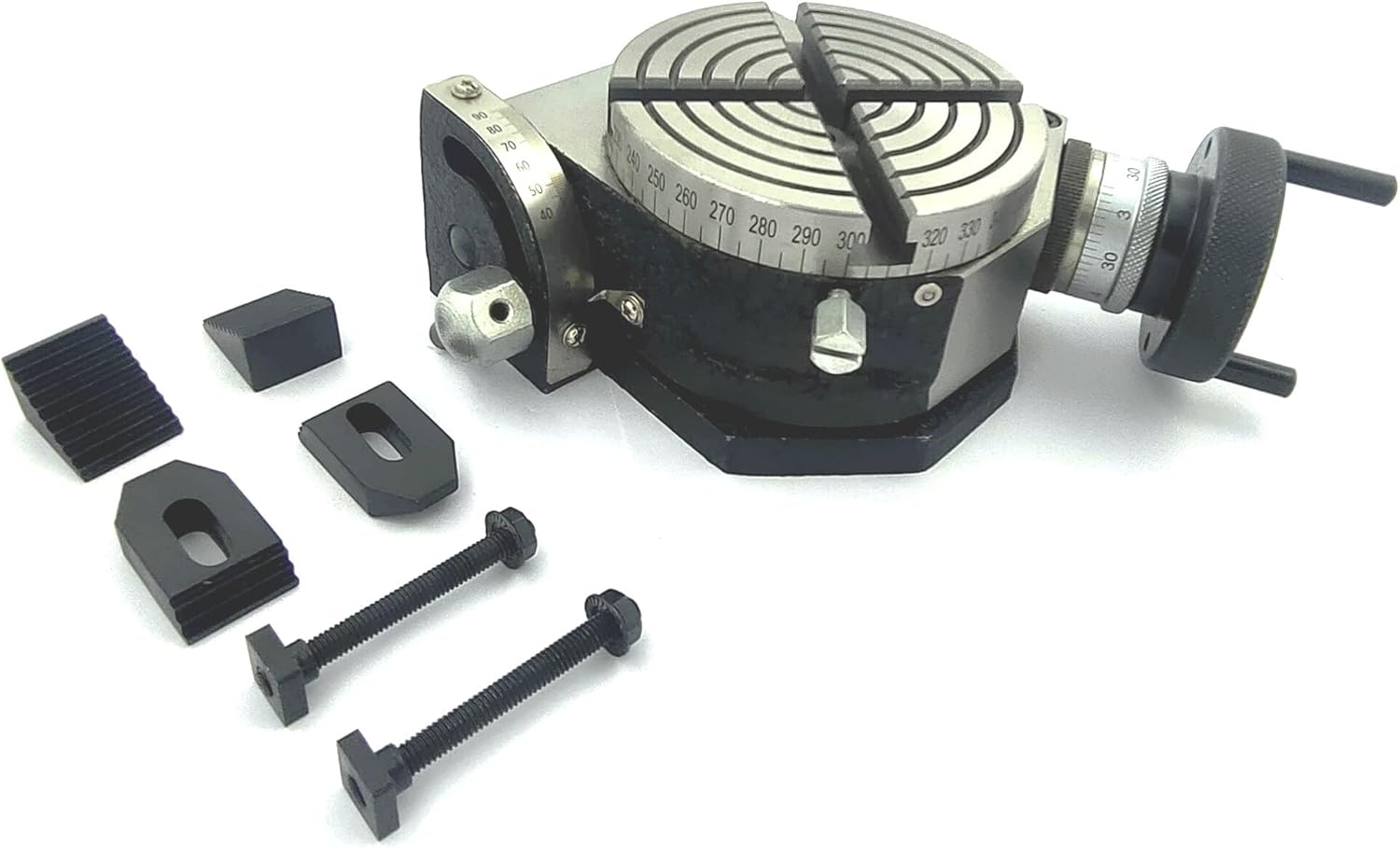

Rotary Table (4"/100 mm Tilting, with M6 Clamp Kit)

Brand New High Quality 4" /100 mm Precision Tilting Rotary Table Features to tilts between 0- 90 Degrees & can be locked at any working position. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Provided with oil nipple for oiling of inside body. Setting grub screw to dial and adjust the table to horizontal flat @ 0 degree is being given along with a locking screw to lock the table at the desired position. Center Height in horizontal position when lay flat : 2-3/4" (70 mm approx). Center Height in vertical position: 3" Inch approx (77 mm) .Can be clamped vertically and horizontally both ways. Body & table are made of caste Iron. Rest of the parts are made of tool steel. Body is painted black. Knobs, dials and locking screws are all plated and Rest of the working surface are precisely ground. Rotary's handle are knurled for firm gripping while rotating and epoxy black finish for a long rust free life. Base Dimensions : 142 x 128 mm. 2 Opposite counter drills of 9.5 mm diameter are located at a PCD of 102 mm approx for mounting. Supplied with a suitable M6 clamp kit which is hardened and precisely ground before the epoxy black finish for a rust free life. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.

• Brand New High Quality 4" /100 mm Precision Tilting Rotary Table Features to tilts between 0- 90 Degrees & can be locked at any working position.
• Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Provided with oil nipple for oiling of inside body. Setting grub screw to dial and adjust the table to horizontal flat @ 0 degree is being given along with a locking screw to lock the table at the desired position.
• Center Height in horizontal position when lay flat : 2-3/4" (70 mm approx). Center Height in vertical position: 3" Inch approx (77 mm) .Can be clamped vertically and horizontally both ways.
• Body & table are made of caste Iron. Rest of the parts are made of tool steel. Body is painted black. Knobs, dials and locking screws are all plated and Rest of the working surface are precisely ground. Rotary's handle are knurled for firm gripping while rotating and epoxy black finish for a long rust free life.
• Base Dimensions : 142 x 128 mm. 2 Opposite counter drills of 9.5 mm diameter are located at a PCD of 102 mm approx for mounting.
• Supplied with a suitable M6 clamp kit which is hardened and precisely ground before the epoxy black finish for a rust free life.
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
