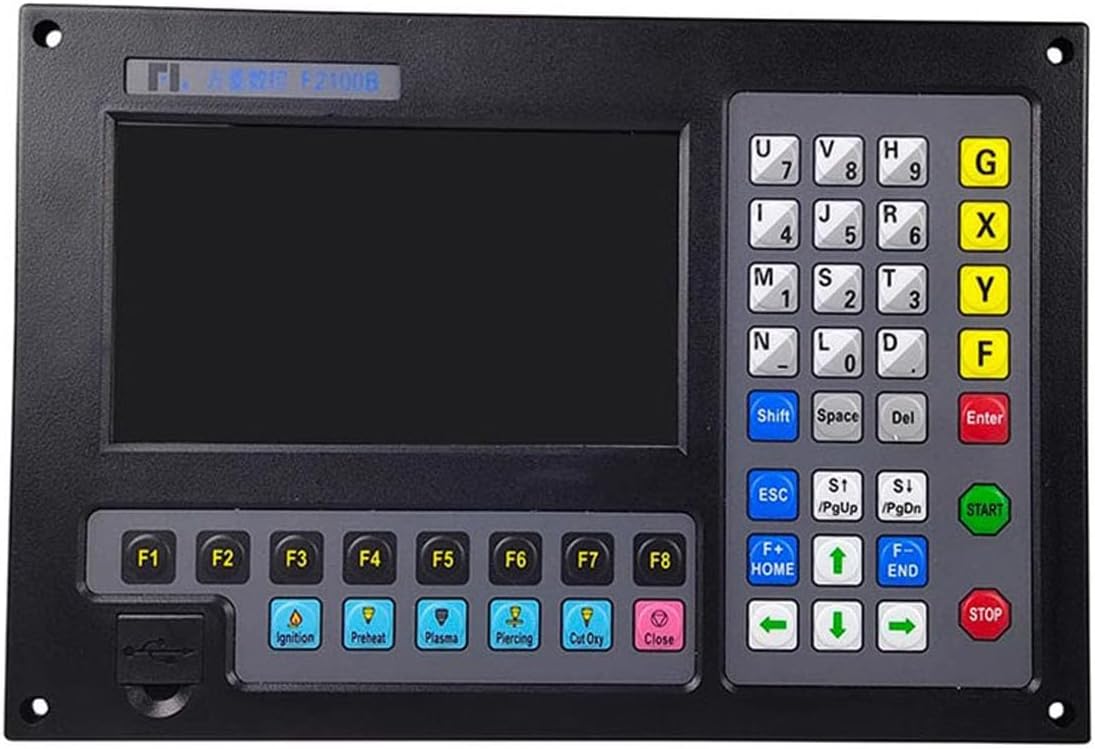

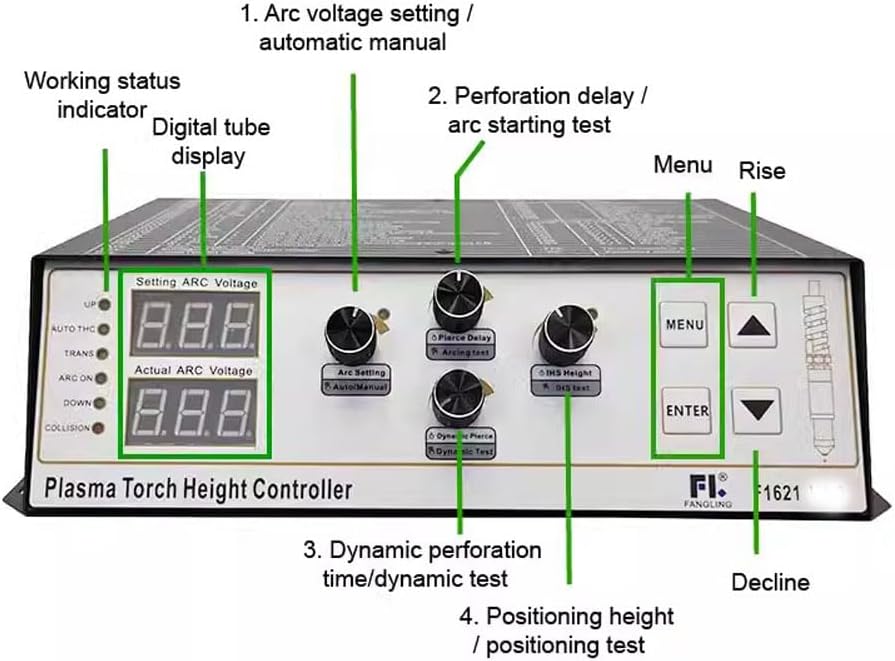

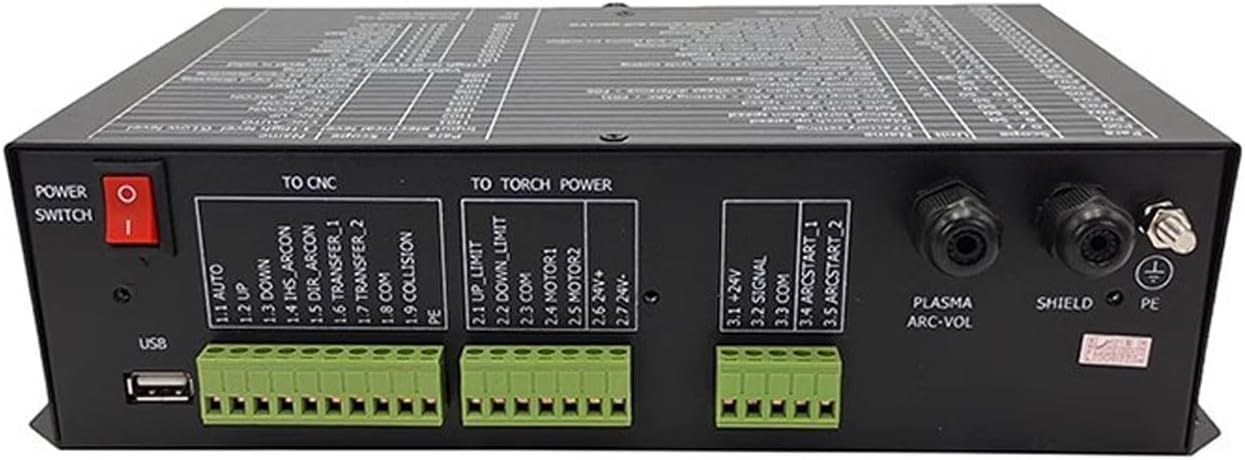

POEIRA F2100B 2-Axis Flame and Plasma CNC Controller System + F1621 THC Torch Height Controller + 1600mm/min 100mm Lifter for CNC Plasma Cutting Machine

Function Module 1. support 2 axes tube cutting machine with chuck mode 2. support 2 axes tube cutting machine with friction disc mode 3. Support tube and all-in-one plate (chuck mode) cutting machine 4. support tube and all-in-one plate (friction disc mode) cutting machine 5. automatic switch of tube/plate function 6. processing the tube part with arbitrary tube diameter. 7. tube part telos cutting function, can arbitrarily set inclined cutting angle 8. tube with equal radius process function (v-shaped saddle) 9. Tube part telos notch function, can arbitrarily set the notch size and notch angle 10. miter elbow cut, can adjust step number, bend angle 11. saddle cut, can arbitrarily set inclined angle 12. eccentric cut of the saddle 13. main tube trepanning cut, can mate with riding-brand or plug-in branch pipe 14. arbitrary trepanning cutting shape, can design the profile hole by cad 15. multiple cutting of saddle branch tubing 16. kerf compensatory function 17. Full-automatic nesting function Technical indicators: 1) number of control axes: 2)2-axis linkage (customizable three-axis or four-axis) control precision: ± 0.001mm 3) coordinate scale: 99999.99mm 4) maximum pulse frequency: 200khz; maximum working speed: 15 meters/minute 5) maximum number of program lines: 80,000 lines 6) maximum single program: 4m 7) time class resolution: 10ms 8) System working power: dc + 24v dc power input, power is greater than 80w. 9) system working environment: temperature -10°c to +60°c; 0-95% relative humidity non-condensing

• The motion controller This provides high control precision for stepper motors and servo motors.
• CNC controller can realize high-precision machining. It uses advanced digital control technology to precisely control the position and speed of the machining process to ensure the accuracy and consistency of the machining dimensions. In addition, it can further improve the machining accuracy through error compensation and other functions.
• The controller usually adopts humanized interface design so that the operator can get started quickly. Through the touch screen or keyboard input commands, intuitively set the processing parameters and programs. Some advanced controllers also support graphical programming, greatly reducing the difficulty of programming.
• Can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick&Place and Milling Machinelathe machine and cutters are just a few examples.

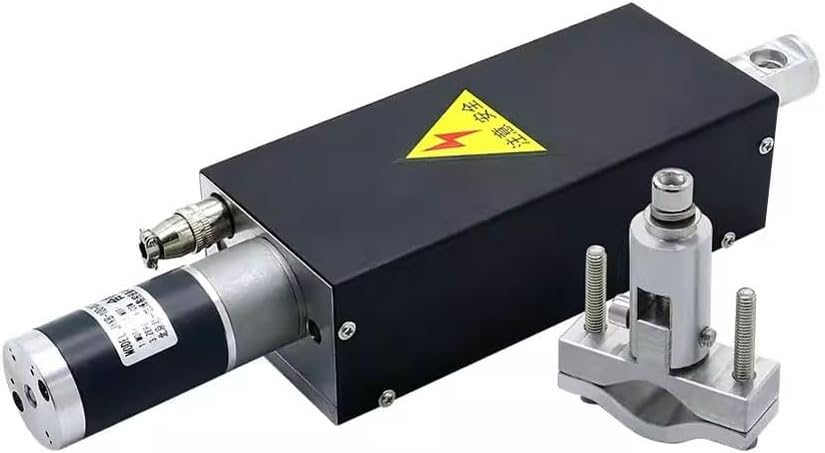

• JYKB-100-DC24V suitable for flame and plasma cutting)1600mm/min
