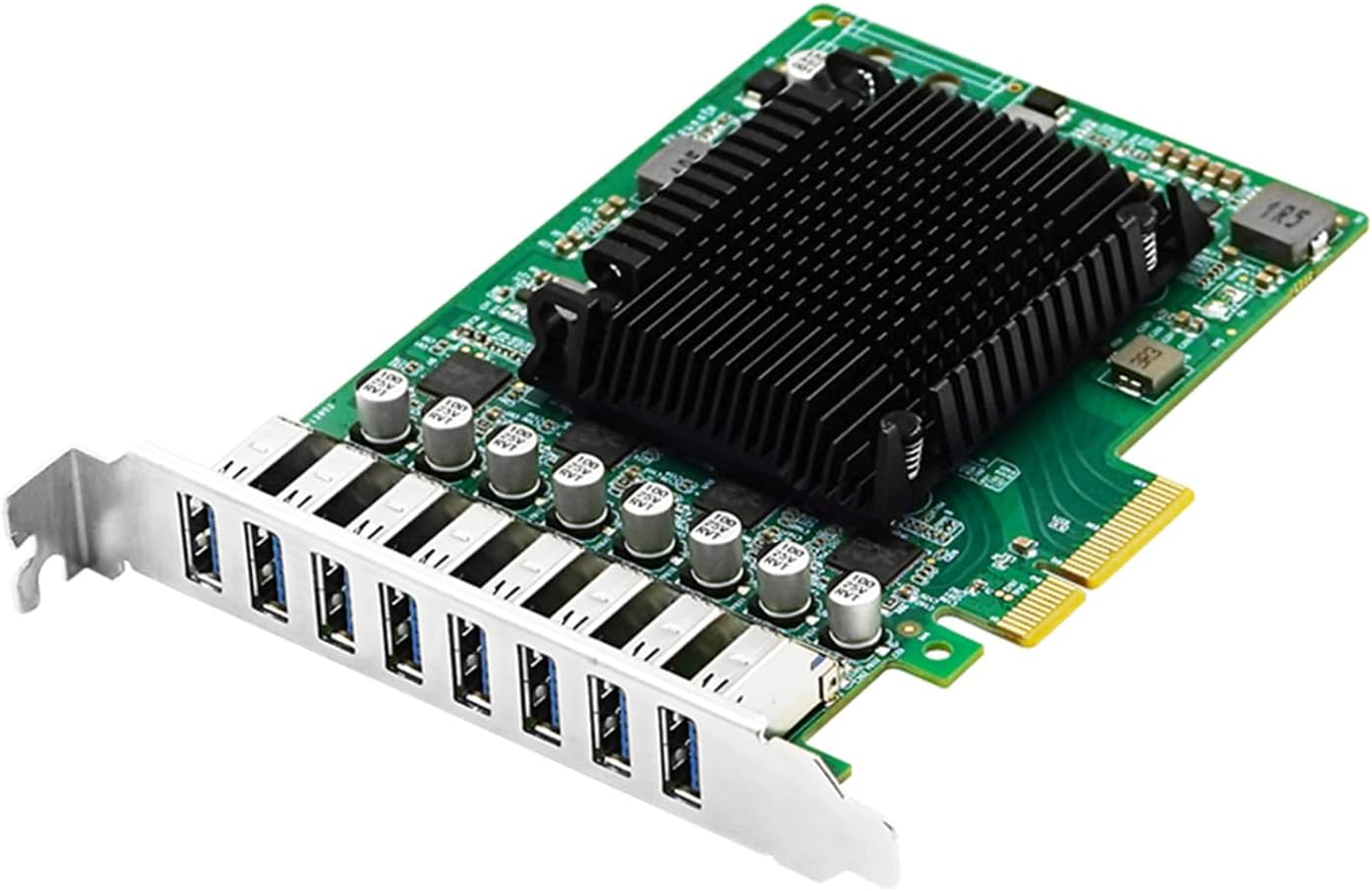

PCIe2.0 x4 8P Type A 5Gb USB 3.0 Adapter

The LRSU9A11-8A is a PCI-Express 2.0 x4 eight-port Type-A 5Gb USB3.0 adapter developed on the Fresco Logic FL1100EX master solution. The adapter is equipped with a PCI-Express 2.0 x4 interface designed for data-intensive applications to ensure maximum I/O parallelism and bandwidth, enabling faster data transfer speeds to meet the demands of machine vision, industrial automation, and other professional scenarios for efficient and stable data transfer. It has eight external USB3.0 Type-A ports, each supporting up to 5Gb/s transmission speed, ten times faster than the previous generation of USB2.0 standard speed, and supports USB device hot-swapping for safety and reliability. Combined with advanced master technology and high-bandwidth interfaces, the LRSU9A11-8A provides an efficient and stable data transfer solution for professional scenarios.Rock Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 AdapterOperating System SupportWindows 7 /8 /10 /11Windows Server 2008 /2012 /2016Windows Server 2019 /2022RHEL/CentOS 7.6 /7.9 /8.2Deepin 15.11 /20 /20.6 /20.9Ubuntu 18.04.5 /20.04.1 /22.04.3SUSE 12.5FreeBSD 12.2 /13.2ZTE New Fulcrum 3.2.2 /5.0.5Asianux Server v7.0Galaxy Unicorn v10NeoKylin 7.6Zhongke Fangde desktop operating system 4.0Zhongke Fangde server operating systemTongxin UOS 20Emind OSOpenKylin 0.7.5VMware ESXi 6.5 /6.7 /7.0

• Fresco Logic FL1100EX main control chip
• USB 3.0 host controller
• Support 8 USB 3.0 ports
• Backward compatible with USB2.0 functions and devices
• PCIe2.0 x4 interface, compatible with slot x8, x16
• Compliant with USB Link Protocol Revision V1.0
• Compliant with the Universal Serial Bus USB 3.0 specification
• Support multiple USB interface devices to run at the same time
