Neoteck 0.15" Coaxial Centering Indicator + 0.03" Dial Indicator Set

Neoteck 0.15" Coaxial Centering Indicator + 0.03" Dial Indicator Set

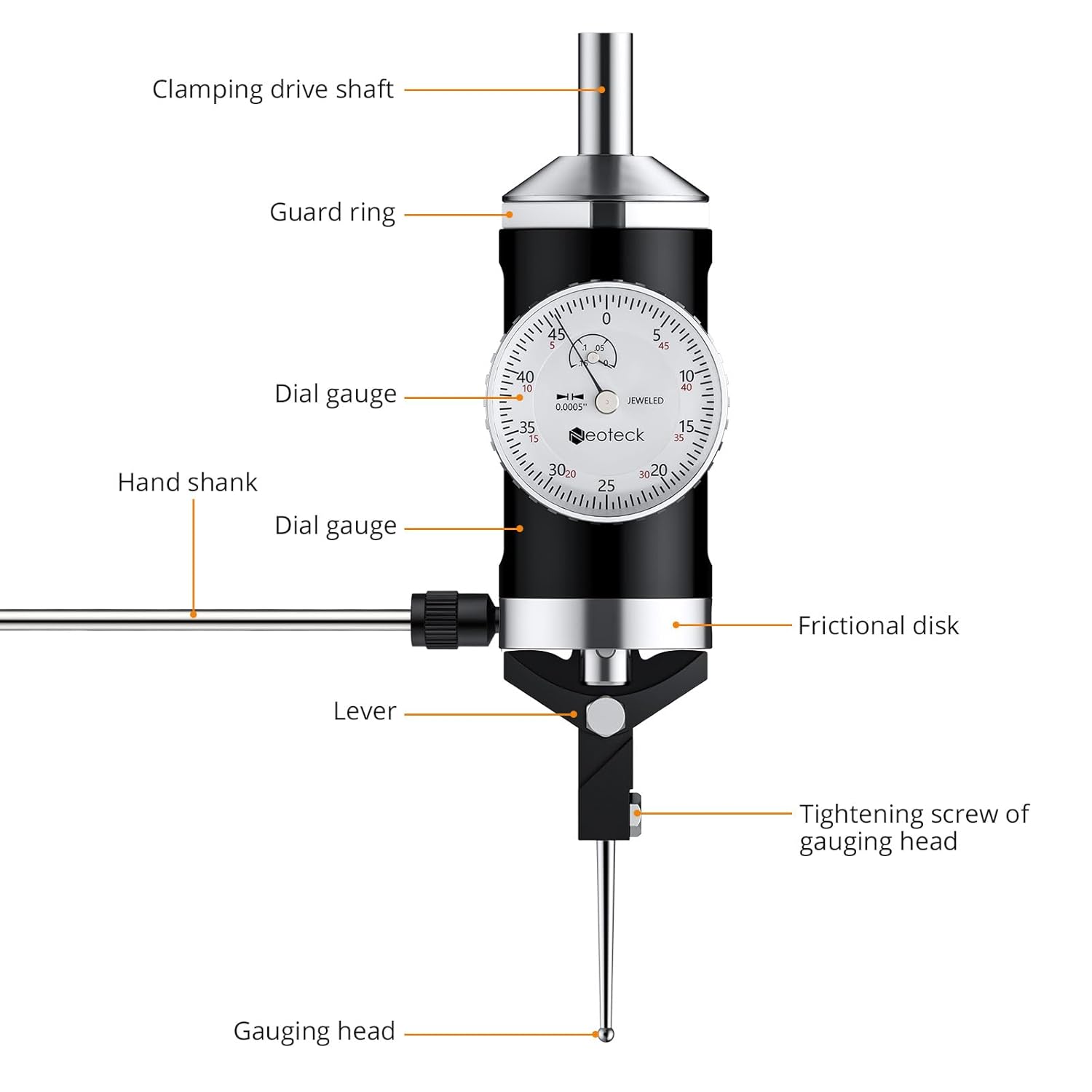

• 【More Accurate and Quicker Measuring】Supportinf Measuring Range: 0-0.15", Resolution: 0.0005", this CO-AX Coaxial Centering Indicator can Quickly and accurately center in boring and milling set-up on horizontal or vertical machines. When principal axis rotates, the dial plate faces operator throughout for him/her to center
• 【Easy to Use 】 Operate at an angle from horizontal to vertical machines and from internal to external diameter without any change by simply changing the feeler. The face of the indicator remains stationary at any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the table
• 【Professional Size】Mounting Shank: 3/8''. Capacity: Internal 5/32" to 4-1/4" dia. or External 0 to 4-1/4" dia.Speed: spindle rotation up to 100 RPM. Exceeding this speed is not recommended. This is a professional indicator to find out center (alignment) of workpiece on jig on boring machine or milling machine and center lateral diameters
• 【Accurate Test Indicator】Measuring range: 0-0.03", Accuracy: 0.0005". Durable Brass Finish: High-quality brass body with high anti-magnetic properties for long-term use
• 【Adjustable Holder Arm】Dimensions of 2 arms: lower arm 2.6"（6.6cm）; upper arm 2.7"（7cm）; total height 5.7"（13.6cm; Clamping diameter 3/8 inch ( 9.52mm). used for conventional digital/dial indicator; Flexible, sturdy, precise rotary joint, can adjust any direction and position, high stability, Compatible with all most dials/digital indicators and other market indicators
