Multi-Function Time Relay Din Rail 220V 10 Groups of Set Range 0.1s-10 Days
4.2 (81 items)
Limited Time Sale$32.47 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211060837 | Release Date | 2026/04/04 | List Price | $21.64 | Model Number | 211060837 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

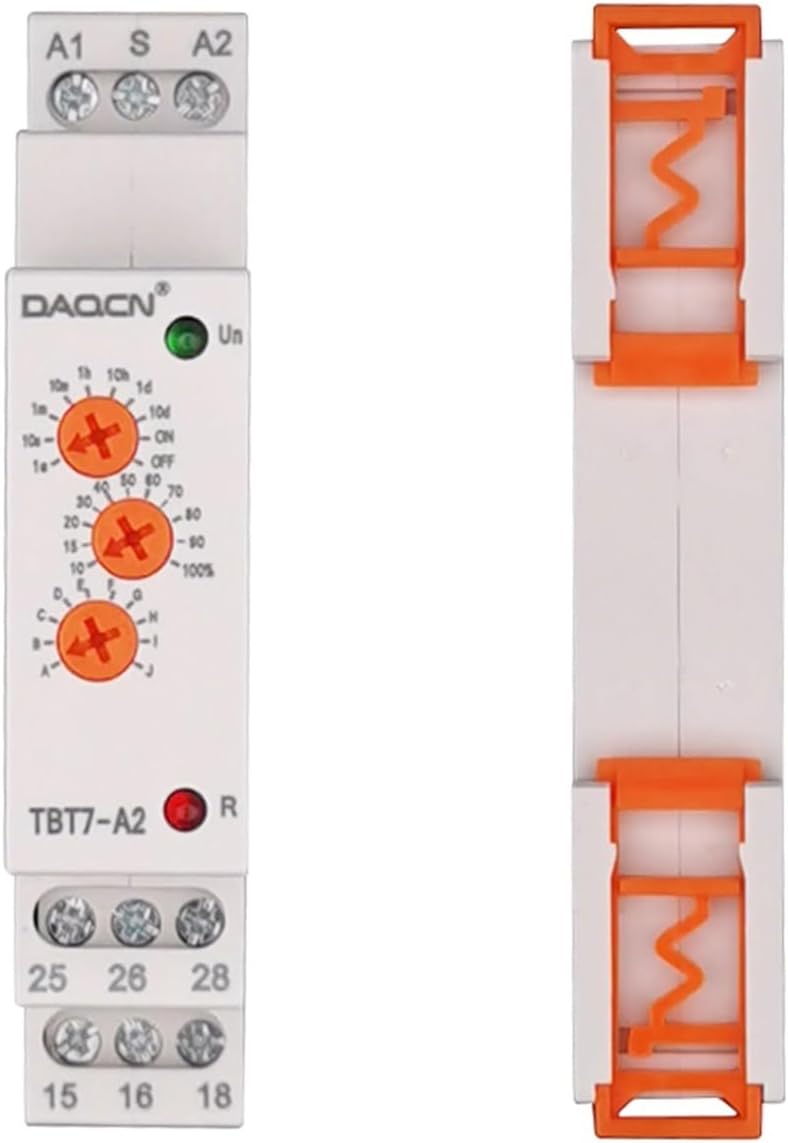

relayRelaysAPPLICATIONMulti-function time relay can be used for industrial equipment lighting control heating element control motor fan control.There are10 delay modesand itsdelay rangecovers0.1secto 10 days.Features-10 delay modes: -5delay modescontrolled by power-4delay modes controlled by signals-1pulse conversion mode- Ultra-wide delay range can be setfrom0.1sec-10 days (10 gears).- Available with AC/DC 12V-240V ultra wide operating voltage.- Relay working status is indicated by LED indicator light.- Ultra small volume only 18mm wide 35mm rail installation.Model and MeaningRated working supply voltage:A220:AC220VW240:AC/DC12V-240VOutput contact groups1:1Z2:2ZItem No.TBT7-A1TBT7-A2FunctionA B C D E F G H I JSupply terminalA1-A2Rated control supply voltageAC/DC 12-240V(50-60Hz)Consumed powerAC0.09-3VA/DC 0.05-1.7WRated control supply voltageAC 220V(50-60Hz)Consumed powerAC max.6VA/1.3WAC max.6VA/1.9wAllowable power supply fluctuation range-15%;+10%Power indicator lightGreen LEDDelay range0.1sec-10 days NO NCSetting modeKnobSetting precision10%Repeat precision0.2%Temperature fluctuation error0.05%/ at=20(0.05% at=68)Output contact parameter1 set of conversion contacts2 sets of conversion contacts16A/AC1250VAC/24VDCMin transfer power500mWOutput relay indicationRed LEDMechanical life1×107Electrical life (resistive load)1×105Reset timeMax. 200msWorking ambient temperature-20~+55Storage and transport ambienttemperature-35~+75Installation mode35mm railinstallationProtection levelIP20Installation positionAnyInstallation altitude height2000mPollution level2 Wiring capacity1×2.5mm2o
- relay
- Relays
- -10 delay modes: -5delay modescontrolled by power
- -4delay modes controlled by signals
- -1pulse conversion mode
- - Ultra-wide delay range can be setfrom0.1sec-10 days (10 gears).
| Item Weight | 8.8 ounces |
|---|---|
| Manufacturer | ENPNRMLEH |
| Item model number | ENPNRMLEH |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
