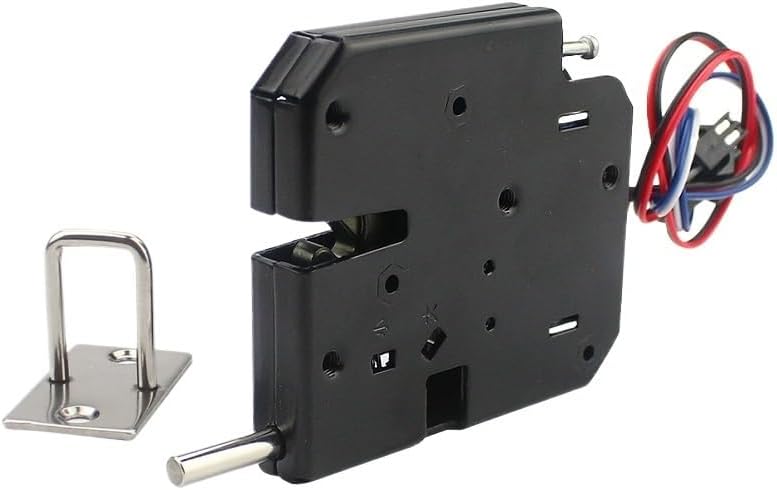

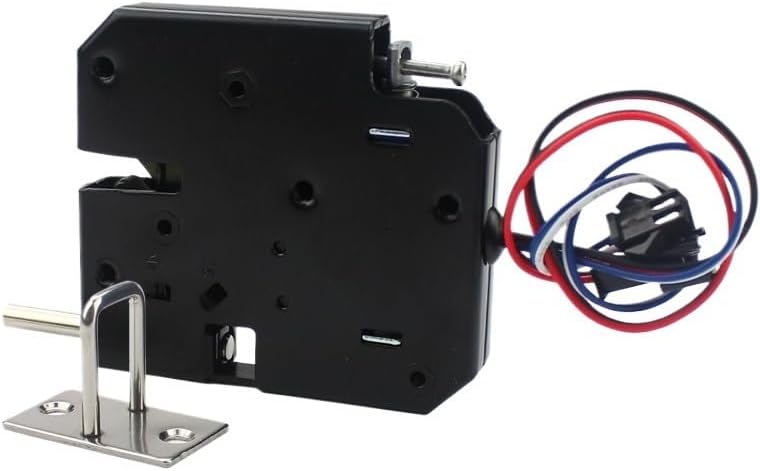

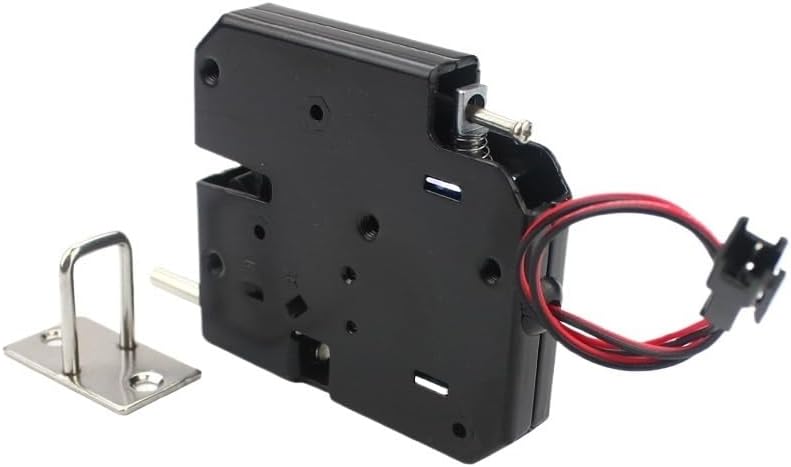

Mini DC 12V Electronic Door Lock Locker Door Electronic Control Lock Powerful Small Electronic Lock Vending Machine Lock(4wire Electric Lock)

Door Hardware & LocksDescription:The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.Features:The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.Easy installation:Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.Self Elastic Design: Elasticity adjustable And a spring push rod is designed to open the door with stronger thrust suitable for weight 0.5~5kg door.Feedback signal output, which can feedback the switch status of the electronic lockSpecifications:Condition: Main Material: Carbon SteelSurface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)Electrical Parameters: DC 12V 2AMechanical Life: In Load Condition, about 500 000 timesElectromagnet Life: In Rated Working Condition, more than 1 000 000 timesStrength of Lock Hook: 150kg force (no permanent deformation)Ambient Temperature: -60~70Size: Approx. 73 x 66 x 13mmProduct weight: 185gFeedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when lockedPackage Included:1 x Electric Lock Manually unlock the device:When the power is disconnected. Just press the manual unlocking device to unlock.Spring push rod:The lock body is designed with a spring push rod. When the door is closed, the spring push rod retracts, and when the door is opened, the spring push rod pops out, which can be used in heavier cabinet doors.Connection Port Type: SM-2.54-2P
