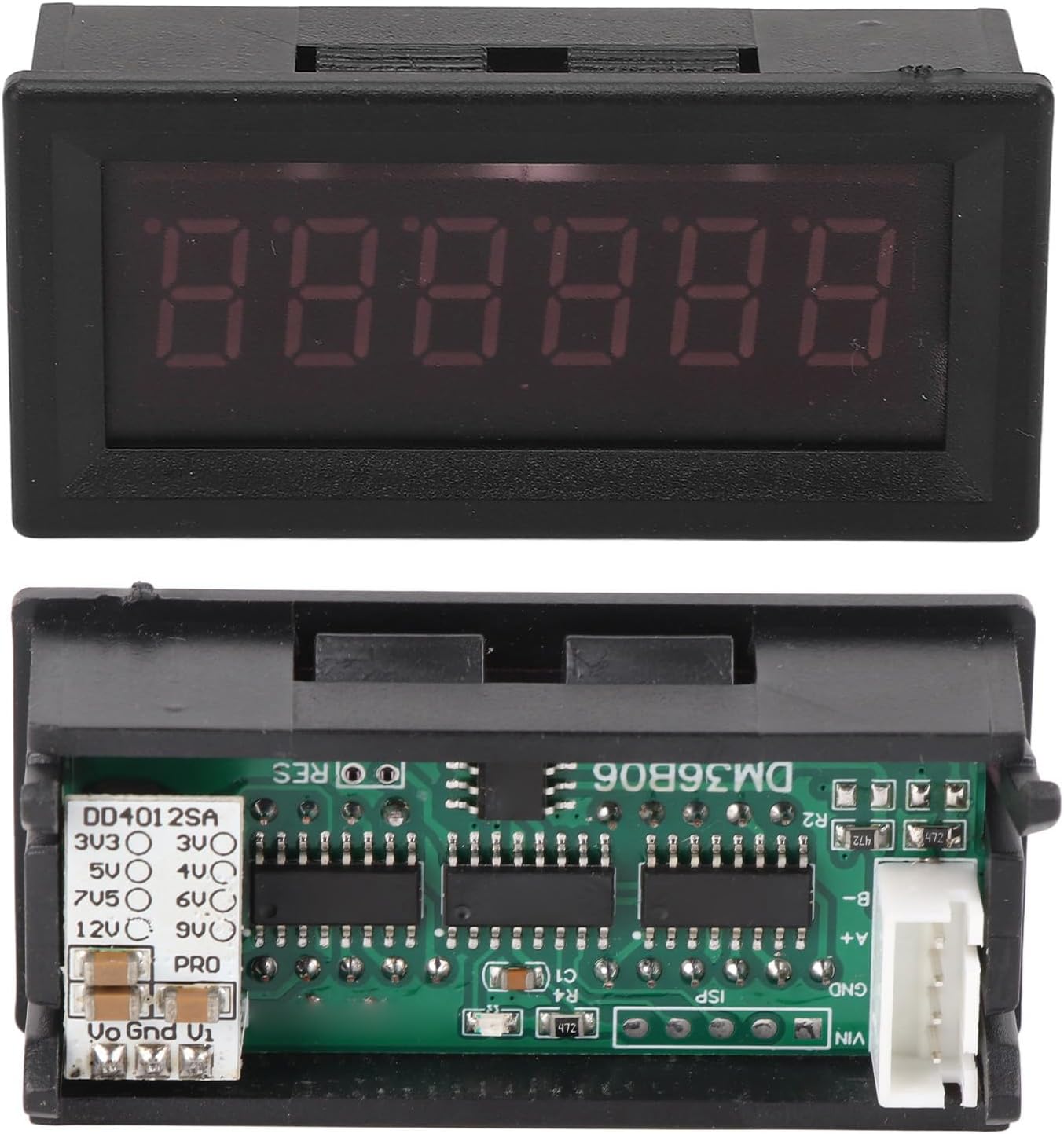

KIMISS LED Digital Tube 6 bits 0.36", Module for RTU, Display Board DC5~28V

Specification: Item Type: LED Display Module Operating voltage: DC 5~28V Working current: 4.3~42mA (related to digital tube brightness) For RTU protocol, 03 read instruction, 06 or 16 write instruction Digital tube color: red Digital tube position: 6 digits 0.36 inch Communication Interface: Supported baud rate: 1200 2400 4800 9600 (default) 19200 38400 57600 115200 Parity check: None, even check, odd check Voltage Parameter How to use The data between 00H and 1FH in the ASCII code is the control character and cannot be displayed, 20H represents the space character and 21H to 7EH is the visible ASCII character. The following characters can be displayed correctly on the nixie screen. Packing List 1 x LED Display Module

• ※【Versatile LED Display】 This LED display module displays numbers, letters, ASCII characters and even negative numbers clearly. Ideal for electronics projects, its adjustable brightness ensures optimal reading in any environment.
• ※【Integrated Protocol】 The LED digital display module supports RTU protocol with commands 03, 06 and 16, facilitating integration into industrial systems. Its interface enables stable connections and flexible configuration.
• ※【Customizable address】 With configurable addresses from 1 to 247, this LED display allows you to connect multiple modules in cascading (up to 32 without repeaters). Perfect for applications requiring modular expansion.
• ※【Practical Electronic Label】 The electronic label function allows you to pre-configure the initial content when switching on. Ideal for identification in commercial or industrial settings, saving time and resources.
• ※【Compact & Stable Design】 Made with sturdy materials, this LED display panel operates with voltages from 5V to 28V and supports multiple baud rates (1200-115200), ensuring reliable and long-lasting performance.
