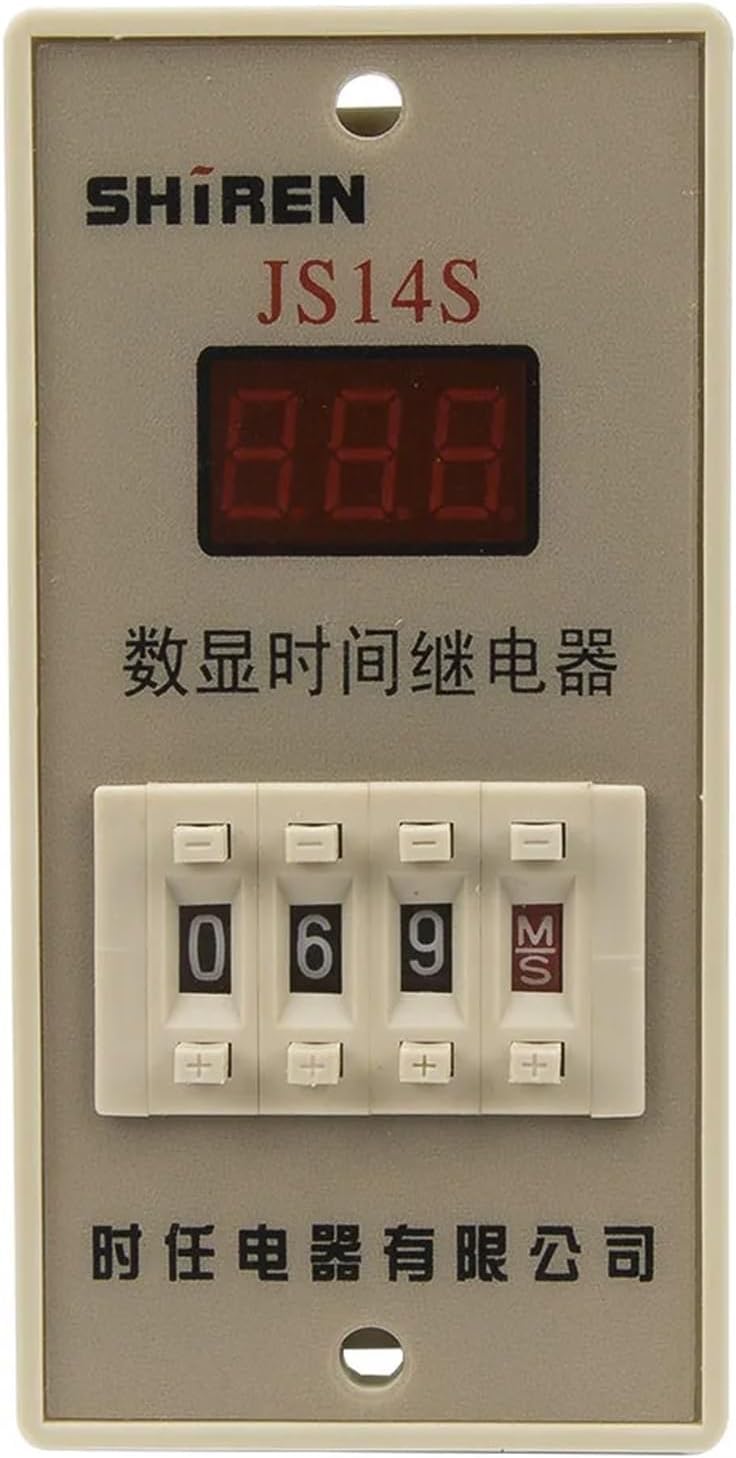

JS14S-3 DC 24V on-delay DPDT time Relay JS14S 24VDC delay Timer 9.99s 99.9s 999s 999min 9min59s 9h59min 0.01s-999h (Size : 9h59min)

RelaysJS14S digital time relayContact form and delay timeModel numberContact formDelay timeRelated productJS14S-2On-delay DPDT9.9s/99s/99m/99h/0.1s-99hOrderJS14S-3On-delay DPDT9.99s/99.9s/999s/999m/999h/1s-9m59s/1m-9h59m/0.01s-999hVisiting...JS14S-4On-delay DPDT99.99s/999.9s/9999s/9999m/9999h/1s-99m59s/1m-99h59mOrderJS14S-3 time relay model number legendJS14S-3Parent Model NumberSupply voltage-DA: 100-240VAC/DC-380VAC: 380VAC-24V: 24VAC/DC-12V: 12VAC/DCDelay time-9.99S: 9.99s-99.9S: 99.9s-999S: 999s-999M: 999min-MS: 9min59s-HM: 9h59min-MT: 0.01s-999hGeneralModel numberJS14SSupply voltage100V-240VAC/DC; 36, 380 Vac, 50/60 Hz; 12, 24 Vdc;Tolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltagePower consumption3W maxSetting methodDial switchIndication method8-segment digital displayExternal dimensions126x104x52 mmPerforate dimensions 77 1/0x46 1/0 mmContact rating3A@250Vac, 5A@24VdcRepeat accuracy±0.3%, ±0.05 secSetting error±0.5%, ±0.05 secTermination11 pinsMountingPanelMatched socketPF113AMechanical life1x106Electrical life1x105Operating temperature-5 to 45 °C (23 to 113 °F)Operating humidity95% RH max, non-condensingAlias nameJS14S digital timerJS14S-3 time relay related productsNoModel NumberSupply VoltageDelay TimeRelated Product1 JS14S-3-DA-9.99S(-99.9S, -999S, -999M, -MS, -HM, -MT)100-240VAC/DC9.99s; 99.9s; 999s; 999min; 9min59s; 9h59min; 0.01s-999hOrder2 JS14S-3-380VAC-9.99S(-99.9S, -999S, -999M, -MS, -HM, -MT)380VAC9.99s; 99.9s; 999s; 999min; 9min59s; 9h59min; 0.01s-999hOrder3 JS14S-3-24V-9.99S(-99.9S, -999S, -
