JRready ST6548 Molex .093" 2 3 4 6 Pin Connector Kit with Pin Extractor Electrical Automotive Power Wire Connector 14-20AWG Terminals Pins and Sockets 1490 1261 Series Male Female Connectors Housings
5.0 (53 items)
Limited Time Sale$23.06 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209994181 | Release Date | 2026/04/02 | List Price | $15.37 | Model Number | 209994181 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Housing Connector Performance】 The housing connectors is made of PA66 material, 2.36mm diameter, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2. Compatible with Molex connector standard .093 "Series connector-5.03MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
- 【JRready Housing Connector Design】 The housing use a snap-in design ,the buckle does not loosen or fall, easy to disassemble and assemble and supports free assembly of connectors and pin jack terminals. different shape design of the two end of socket avoid mis-matching during the assembly process.
- 【Terminal Contact】 The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times. Pin 2.36mm diameter, Wire range 14-20 AWG(0.5mm²to 2mm²), rated current 12A.

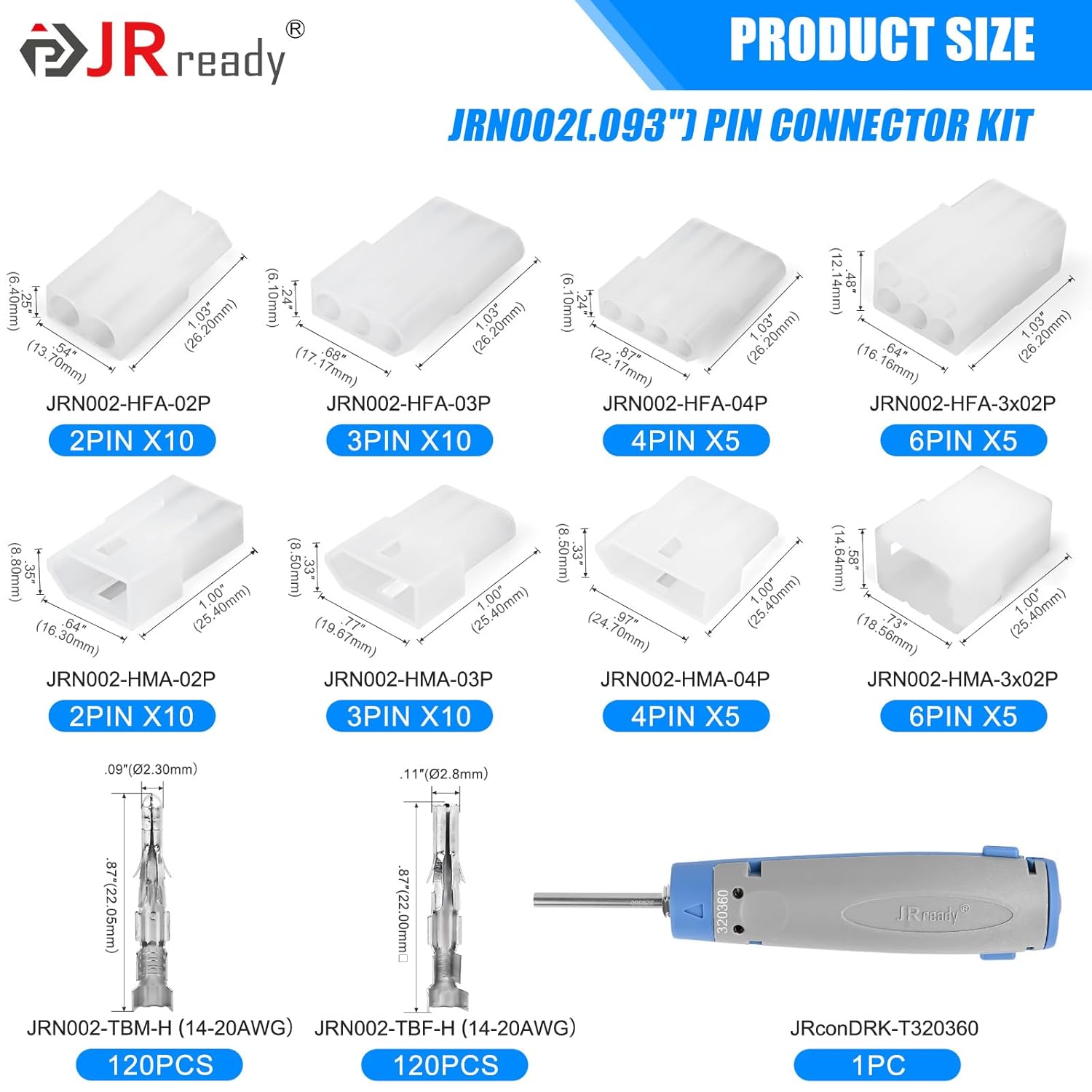

- 【Compatible with MOLEX Models】 Molex Standard .093" Series Connectors: 2 pin connector-03091022/03092022; 3 pin connector-03091032/03092032; 4 pin connector-03091042/03092042; 6 pin connector-03091064/03092062; Contacts pin: 02092101 / 02092103，socket: 02091102 / 02091104.
- 【Pin Extractor Tool 】The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness.
| Color | White |
|---|---|
| Model | ST6548 |
| Terminal | Pin Terminal |
| Brand Name | JRready |
| Manufacturer | JRready |
| Material Type | Plastic |
| Connector Type | Pin |
| Maximum Voltage | 250 Volts (AC) |
| Contact Material | Brass |
| Specification Met | UL |
| Insulation Material Type | Nylon |
