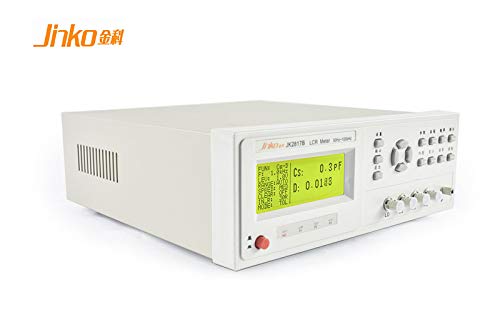

JK2817B LCR Meter with 20 Typical Frequency Points

Brief description JK2817B type general high-frequency LCR digital bridge is the latest launch of a new generation of component parameter test instrument in our company, the product integrates the component test of mature experience for many years, using the latest test in the field of technology. Powerful testing capabilities and superior measure performance makes the product into the international advanced level, With cheap prices it will give customers the enjoyment of a bargain. The product can provide stable five test resolution, 50 Hz - 100 KHZ / 100 KHZ frequency range of 1 V, 0.1 V, 0.1 V programmable signal level, up to 12 times/SEC measurement speed, range, 30 Ω constant level 5 or 100 Ω source internal resistance and flexible mode of operation of human nature.JK2817B can meet the production line, quality assurance, incoming goods inspection and laboratory high accuracy measurement requirements Features * 192 x 64 bitmap graphics LCD display * Humanized operation interface, simple operation * 50 Hz — 100 kHz, (A total of 20 typical test frequency） * high level of the measurement accuracy and stability * Five readout resolution and the fastest speed can be up to 12 times per second * Accurate load calibration function * 30 Ω/100 Ω Optional signal source output impedance * built-in comparator，4bins and bin counters * The test level monitoring function * Bottom lock function * Handler interface * RS-232C，GPIB interface(option)
