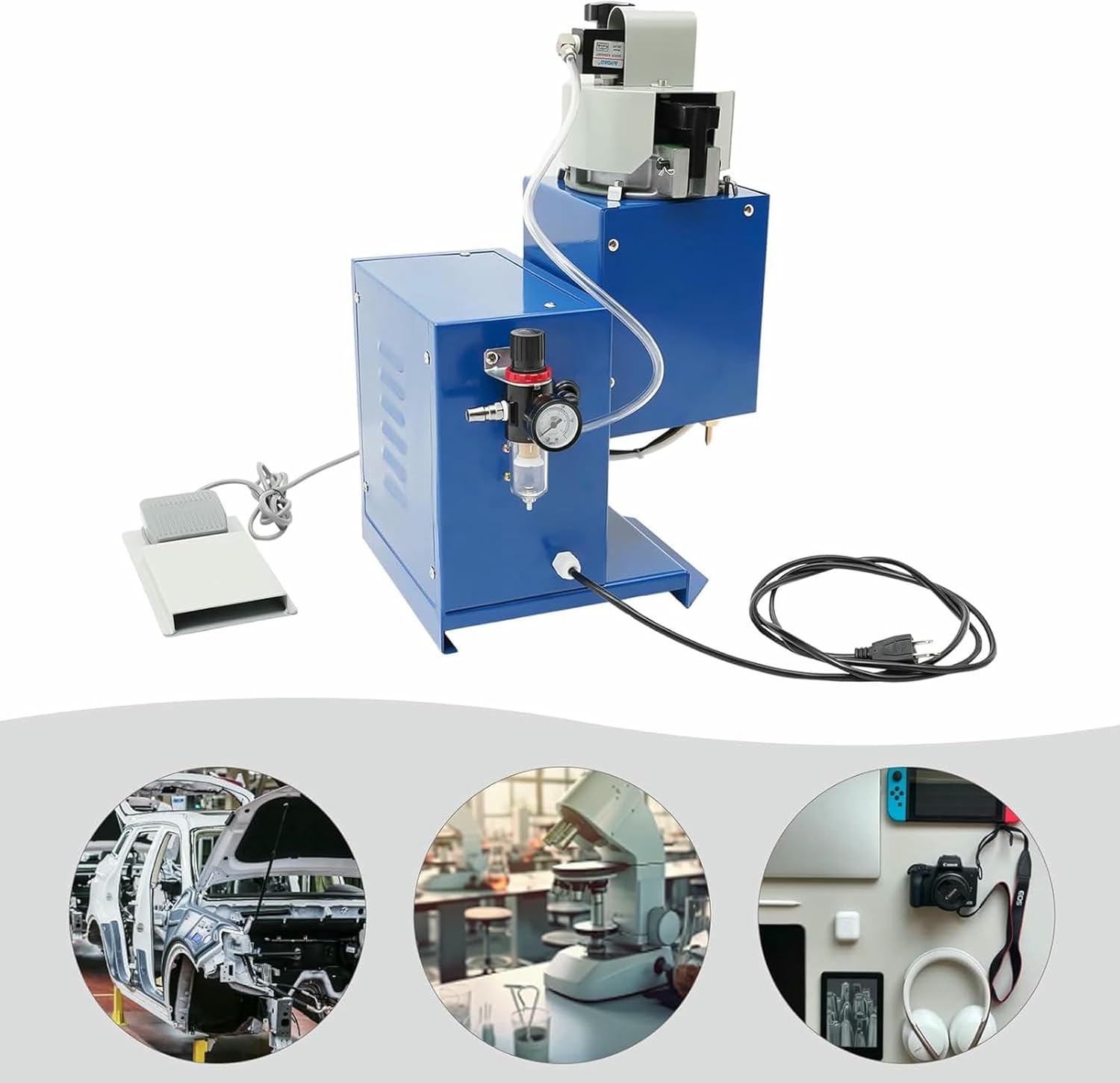

Hot Melt Glue Gun Dispenser Set, Hot Melt Glue Spray Injecting Machine, 800W W/6.56FT Power Cord Industries Commercial Adhesive Injecting Dispenser Equipment

SpecificationMaximum Viscosity: 10000 CPSPlug Type: US StandardPower: 800WWorking Temperature: Over 150°C/302°FTemperature Control Range: 150-200°C/302-392℉Pressure Range: 4~10kg/8.82~22.05lbsLength of Power Cord: About 2m/6.56ftColor: BlueMaterial: Iron and AluminumSurface Treatment: Painted, Sprayed with TeflonStyle: ModernShape: RectangularNumber of Items: 1Assembly Required: YesMount Type: CountertopVoltage: 110V 10APlug Model: PSB-10Max Power: 1250WMax Voltage: 10A 125VSol Speed: 3kg/h, 6.61lbs/hSolvent Capacity: 3kg/h, 6.61lbs/hBoot Steps1.Connect the power and turn the power switch to “ON”.2.Check if the temperature of the temperature controller is within the above range.3.Check whether the pressure relief is turned in the direction of pressure holding.4.Connect the origin, set the pressure value, and start the operation.Shutdown StepsRelease the foot switch to cut off the main powerDisconnect the air pipe, or adjust the pressure regulating valve of the filter cup to 0.Preparation for OperationConfirm the safety protection measures.Check if the machine is 110VAC and make sure that the pressure will not fluctuate.Check whether the foot switch is connected and whether any conductive objects have touched the components in the electric control box.Check if the air supply system is basically dry and the air pressure is stable

• (EXQUISITE WORKMANSHIP): The shell of the glue dispenser is painted, and the aluminum barrel is sprayed with Teflon to prevent adhesion, so this item is smoother, brighter, more wear-resistant, and corrosion-resistant, thus extending its service life.
• (HIGH EFFICIENCY): 800W power, 6.61lbs/h sol speed and solvent capacity, and 10000CPS maximum viscosity can improve your work efficiency, save labor and cost.
• (MULTIPLE FUNCTIONS): This glue dispenser is mainly used for gluing in product processes, as well as other liquid precise points, injection, and application to the exact position of each product, and can be used for dotting, marking, circular or arcing.
• (SAFETY GUARD): The uniform heat dissipation holes, pressure retaining design, and over-temperature protection function can timely reduce the temperature of the product during operation, avoid potential safety hazards, and extend the service life of the product.
• (ADJUSTABLE DESIGN): The temperature can be adjusted in the range of 302-392℉, and the pressure can be adjusted in the range of 8.82-22.05lbs, which are very convenient and conducive to making more beautiful and standardized items.
