Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)
Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch) Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch) Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch) Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch) Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch) Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

flash sale iconLimited Time Sale
Until the end
03
47
30

$108.60 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $181.00
quantity

Product details

Management number 210247450 Release Date 2026/04/02 List Price $72.40 Model Number 210247450
Category
  1. Tools & Home Improvement
  2. Hardware
  3. Cabinet Hardware
  4. Drawer Slides

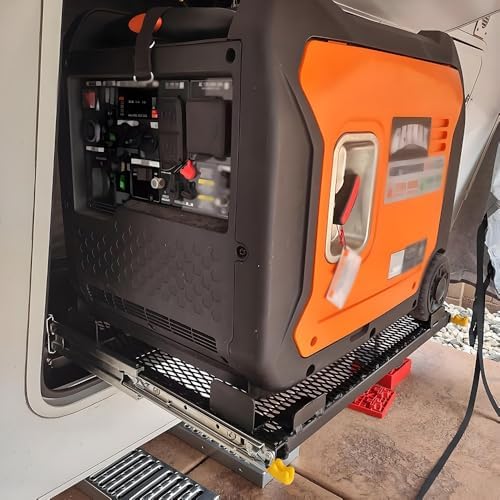

This heavy-duty drawer slide is suitable for retrofitting RV equipment, heavy-duty tool cabinets, shelves, cabinets, industrial drawers, trucks, vending machines, etc. Installation steps. 1. Find two horizontal lines at the installation position on both sides of the cabinet, and use screws to fix the outer fixed slide to the horizontal lines on both sides; (Note: the positioning on both sides must be parallel). 2. Pull the slide completely out and fix the drawer to the inner fixed rail with screws according to the horizontal line. 3. Installation is completed. Specifications Style: Simple, Modern Material: Cold-rolled steel Q235 Quantity: 2 Process: Galvanized finish Load capacity: 226.8 kg/500 lbs Slide width: 7.6 cm/3 inches Size: 10in-80in Package includes 1 pair of heavy-duty drawer slides (including 10 mounting screws)

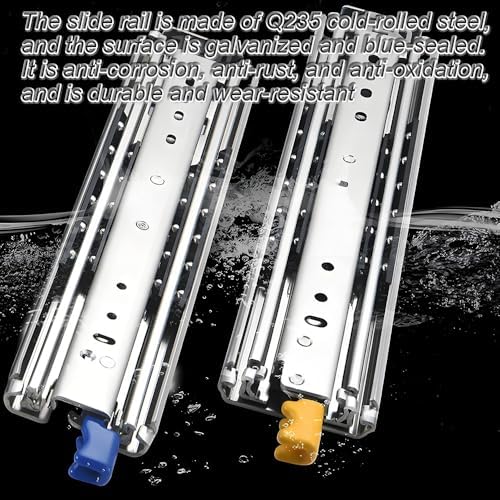

  • Materials: Heavy-duty drawer rails are made of 2.5MM thick Q235 cold-rolled steel, ensuring excellent strength and anti-deformation ability, with an excellent load-bearing capacity of 226.8kg/500lbs; the surface is electroplated to effectively prevent rust and enhance wear resistance
  • Double lock design: Full extension drawer slides are equipped with a double lock design to prevent the drawer from accidentally sliding out. Gently pull the locking handle to unlock the drawer, which is very convenient. Our double lock design provides higher security and stability
  • features: Heavy-duty drawer rails use full solid steel ball rolling bearings, the telescopic movement is smooth, labor-saving and silent, 3-section full extension slides with anti-collision rubber pads, sturdy, 3-fold full extension design, you can reach the entire drawer. It is a good helper to utilize drawer space

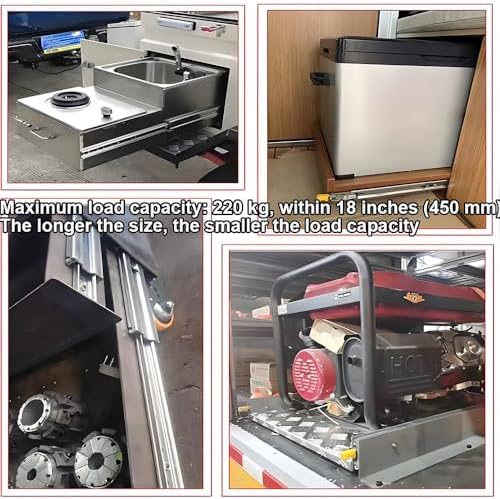

  • Widely used: Our drawer guides have a wide range of applications, covering indoor heavy furniture, RV drawers, storage cabinets, shoe cabinets, industrial cabinets; To ensure user safety, the heavy-duty guides are not removable

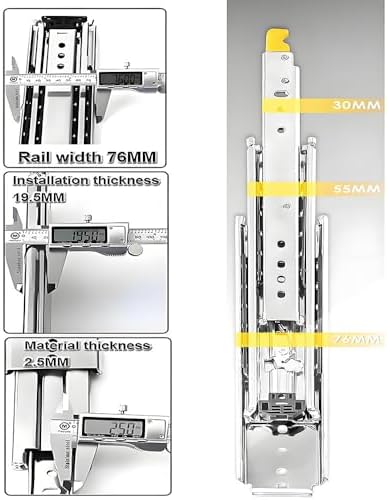

  • Easy to install: This double-lock slide is designed for side-mounted drawers, the installation distance between the drawer and the cabinet is 19.2 mm/0.75 inches, and it is pre-drilled for easy installation; equipped with screws to enhance stability during installation
Brand Name Generic
Manufacturer Generic

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)

Heavy Duty Drawer Slides with Lock, 1 Pairs Full Extension Ball Bearing Drawer Rails, 500 Lb Load Capacity Side Mount Drawer Glides, 10 36 48 50 64 76 80 Inch(38 inch)
