Handheld DC Milliohm Meter Low Resistance Meter with Accuracy 0.05% Measurement Range 10μΩ to 20MΩ 3.5" TFT LCD Screen Display

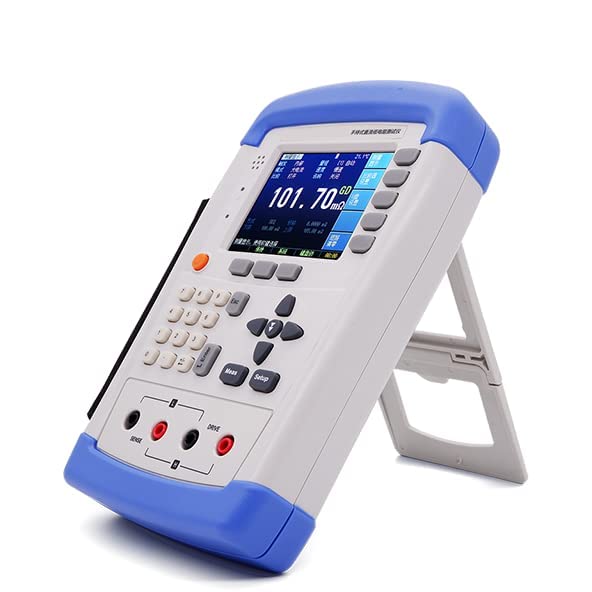

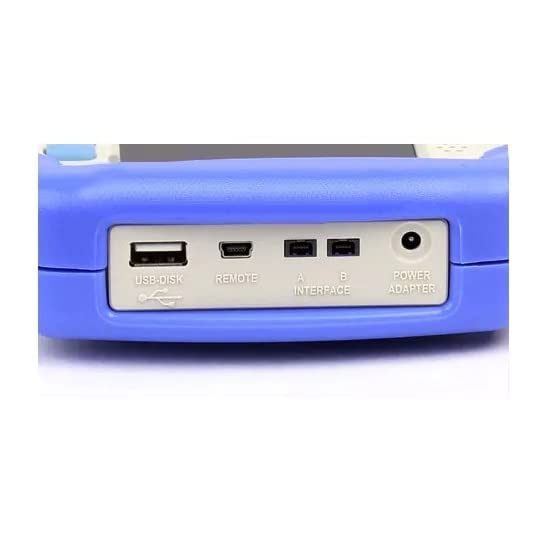

YFYIQI Handheld DC Milliohm Meter Low Resistance Meter with Accuracy 0.05% Measurement Range 10μΩ To 20MΩ 3.5"" TFT LCD Screen Display Overview: The handheld DC milliohm meter is the use of high-performance processors and 3.5"" TFT LCD screen smart handheld Meter. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. Wide Measurement Range from 10μΩ to 20MΩ, and 20000 readers. It can guarantee 0.05% accuracy, even in the condition of the testing speed under 15t/s. its unique current testing mode can adapt different testing. To apply to long distance control, DAQ and analysis, it is equipped with Mini-USB interface. It can test all kinds of high-ohm, medium-ohm, low-ohm tester; switch connect, connector contact, relay coil and contact resistance; Transformer, Inductor, motor, deflection coil winding resistance, wire resistance; The metal winding resistance of vehicle, vessels, and airplane; PCD line and hole, etc. Features: *Gorgeous dual-color cast shell *Battery and external power supply *Automatic power off Function *ABS/ PER/SEQ comparison criteria *Comparator Function: GD/NG Show *3.5 inches, Truecolor 16M, TFT-LCD Display *Auto Zero-Adjust for each range *Four-terminal resistance measurement. *Mini-USB interface *SCPI compatible command sets *Keypad lock function *Switch both in English and Chinese. *Background-lightness adjustment function *Automatic shutdown set *Size: 210.76mm (Length)*130.23mm (Width)*37.88mm (Heigth) *Weight: 500g *Battery: 8.4V, Li, 2200mAh, chargeable *Max power: ≤5W *Battery capacity: Over 8 hours’ continuous use Specification: Parameter:DCR Accuracy:0.05% Measurement Range:10μΩ～20MΩ Measurement current:I-max：<1A Range:Automatic, Manual, Nominal, 7 range Speed:30 times/s, 15 times/s, 3 times/s Display:ABS /PER/ SEQ Display Max:20000 Adjustment:short-circuit reset for all range Comparator:build -in sorting recorder, GD/NG sorting result display Trigger:internal, manual, remote Interface:Build-in Mini-USB Temperature compensation:Accuracy: 0.2°C Test range: 0～80°C Method:4 terminal shielding (2 check terminal & 2 driving terminal), external shielding ground section Power Supply: Input:100-240V~50/60Hz 0.35A output： DC9V 1A. 8.4V，2200mAh Li battery Dimension & Weight:130.23 x210.76 x37.88 weight：650g Accessories:ATL501B 4 terminal kelvin test, ATL909 DC adaptor, ATL202 bag, ATL804 Li battery Optional Accessories:ATL105Mini-USB communication cable, ATS518 data acquisition software(If you need,please contact us) Other Functions:3.5-inch true color 16M color TFT-LCD large font display; keyboard lock, data retention function; compatible with SCPI command set; Chinese and English switching; backlight adjustment; automatic shutdown Application: ● Measure various high, medium and low value resistors ●Various switch contact resistance ●Enameled wire resistance ●Connector contact resistance ●Relay wire package and contact resistance ●Transformer, inductor, motor, deflection coil winding resistance ●Solder point contact resistance ●Wire resistance ●Metal riveting resistance for cars, boats and airplanes ●Printed plate line and hole resistance ●Characterize the low resistance characteristics of electromechanical components ●Metal flaw detection, etc.

• 1.The handheld DC milliohm meter is the use of high-performance processors and 3.5"" TFT LCD screen smart handheld Meter.
• 2.Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. Wide Measurement Range from 10μΩ to 20MΩ, and 20000 readers.
• 3.It can guarantee 0.05% accuracy, even in the condition of the testing speed under 15t/s.
• 4.It can test all kinds of high-ohm, medium-ohm, low-ohm tester; switch connect, connector contact, relay coil and contact resistance; Transformer, Inductor, motor, deflection coil winding resistance, wire resistance; The metal winding resistance of vehicle, vessels, and airplane; PCD line and hole, etc.
• 5.Measurement Range:10μΩ～20MΩ
