FM138 Universal Driveway Vehicle Exit Wand Sensor Probe Free Exit System with 50 ft. Cable for Swing Slide Gate Opener, Compatible with All Brands of Gate Operator with Exit Open Input

The Haupowfo vehicle exit wand is a self-contained free exit system designed to detect moving vehicle and open your automatic gate or road barrier. It can be connected directly to any gate operator/opener & road barrier without an external output board. It works with powered or solar gates. It's compatible with most gate opener & gate operator such as GTO, Mighty Mule, Liftmaster, Ghost Controls, Topens, CO-Z, Apollo, Doorking, Viking, FAAC, OSCO, BFT, Power Master, Aleko, Elite, Eagle, Ramset, Jieli, ZUMI, Allstar, Platinum, JUJIANG and other brands gate opener which has an exit/open input terminal! The exit sensing probe is idea for your family and friends to go out without a remote or keypad, and enjoy wireless "Hands Free" exit of your property. It is designed to detect iron based metal in motion and the SENSOR’s ability to detect iron-based metal objects is based on the mass, velocity and proximity of the object to the sensor. When a moving car approaches the wand, the wand will sense it and output a signal to the gate operator/opener, and then the gate operator/opener will open automatically! Using advanced ferrous metal detection technology, this sensor reliably detects moving vehicles while ignoring stationary objects, making it perfect for residential, commercial, and industrial applications! The sensor can be buried alongside or under the driveway easily when installing! Technical Specifications: Power Input: 9-24 Vac / 10-30 Vdc Current Consumption: 2 mA (Standby), 20mA (Activated) Relay Rating: 1 amp max, 30 Vdc Relay Pulse Time: 2 seconds Detection Range: Adjustable, up to 12 feet for moving vehicles Operating Temperature: 0°F (-18°C) to 120°F (50°C), or battery operating temperature

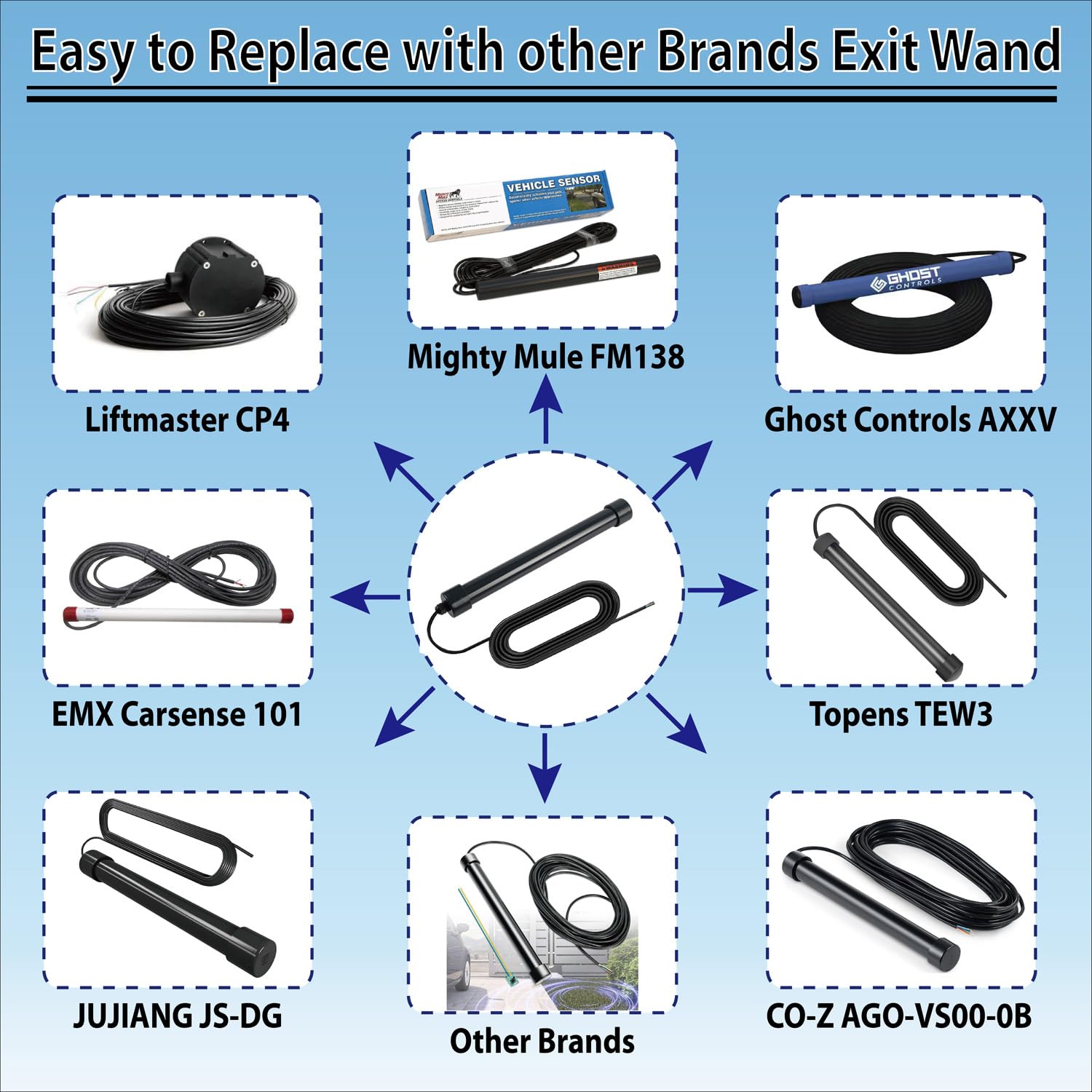

• Universal - The normally open dry contact output makes it's compatible with all the gate openers & operators which have an exit/open input control terminal such as GTO, Mighty Mule, Liftmaster, Ghost Controls, Topens, CO-Z, Apollo, Doorking, Viking, FAAC, OSCO, BFT, Power Master, Aleko, Elite, Eagle, Ramset, Jieli, ZUMI, Allstar, Platinum and JUJIANG! It's an ideal replacement of Mighty Mule GTO FM138, Topens TEW3, Cartell CP4, EMX Carsense and Ghost Controls AXXV exit wand sensor!
• Solar Compatible & Widely Input Voltage - Low power consumption for solar application. No worry about adding the sensor will cause the battery to go flat quickly if it's a solar powered gate opener! It also can be powered by universal voltage AC & DC (9-24VAC/10-30VDC) so that the power supply for the sensor is more flexible!
• More Lightning Protection - With the 50 ft. long shielded cable and the lightning protection electronic components, the exit wand can "survive" in stormy weather and will last for a long life time!
• Sensitivity Adjustable - The exit wand comes with a sensitivity adjusting board and the maximum sensing range could be 12 ft. (3.6m) diameter! (Determined by the mass and velocity of the object to the sensor.)
• Professional Pre-sales and After-sales Service - We have professional electrical engineers with many years of research and development experience in the gate opener field. We will provide you with professional technical support if you have any question about wiring and building an access control system related to this product. You can email us ([email protected]) and we gua-rantee to reply in 24 hours!
