Electronics-Salon DIN Rail Mount 4 DPDT Signal Relay Interface Module, DC 12V Version.
5.0 (146 items)
Limited Time Sale$19.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211059080 | Release Date | 2026/04/04 | List Price | $12.80 | Model Number | 211059080 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

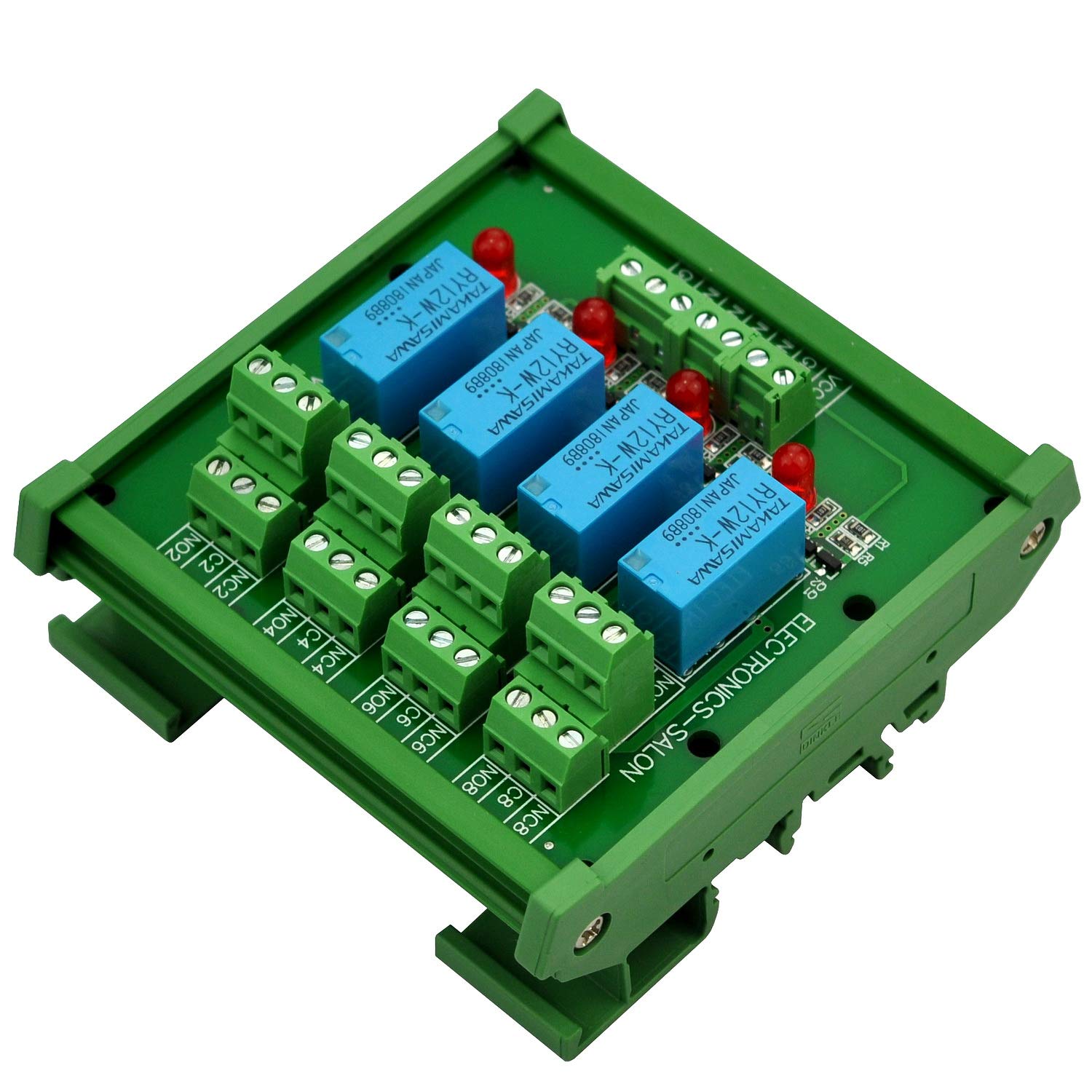

August-24, 2018, upgrade to version 2.04 DPDT signal relay module. TAKAMISAWA RY12W-K high quality relays, switch contact material - gold overlay silver-palladium. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.Operating Voltage / Current (VCC): 8.5 to 15.6VDC / 120mA(at 12VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action.Output (relay switch) contact rating for each switch: For AC, 120VAC / 0.5Amp For DC, 24 VDC / 1.0AmpExternal dimensions: L82mm x W87mm x H43mm. PCB dimensions: L80mm x W72.5mm x H18.1mmThe item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/91Ml0Tph-rL.pdf
- 4 DPDT signal relay module. TAKAMISAWA RY12W-K high quality relays, switch contact material - gold overlay silver-palladium.
- Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
- High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers.
- Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
| Wattage | 1.87 watts |
|---|---|
| Brand Name | Electronics-Salon |
| Part Number | MD-D256T/12V-1 |
| Coil Voltage | 12 Volts |
| Contact Type | Dpdt |
| Manufacturer | Electronics-Salon |
| Mounting Type | DIN Rail Mount, Panel Mount |
| Connector Type | Screw |
| Current Rating | 1 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Palladium |
| Specification Met | Din |
| Contact Current Rating | 1 Amps |
| Maximum Switching Voltage | 15.6 Volts |
| Minimum Switching Voltage | 2.5 Volts (DC) |
