DIN Rail Mount 8 Position Rocker Switch Power Distribution Module Fuse Splitter Board AC/DC 5-32V
4.4 (92 items)
Limited Time Sale$18.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211066634 | Release Date | 2026/04/04 | List Price | $12.39 | Model Number | 211066634 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

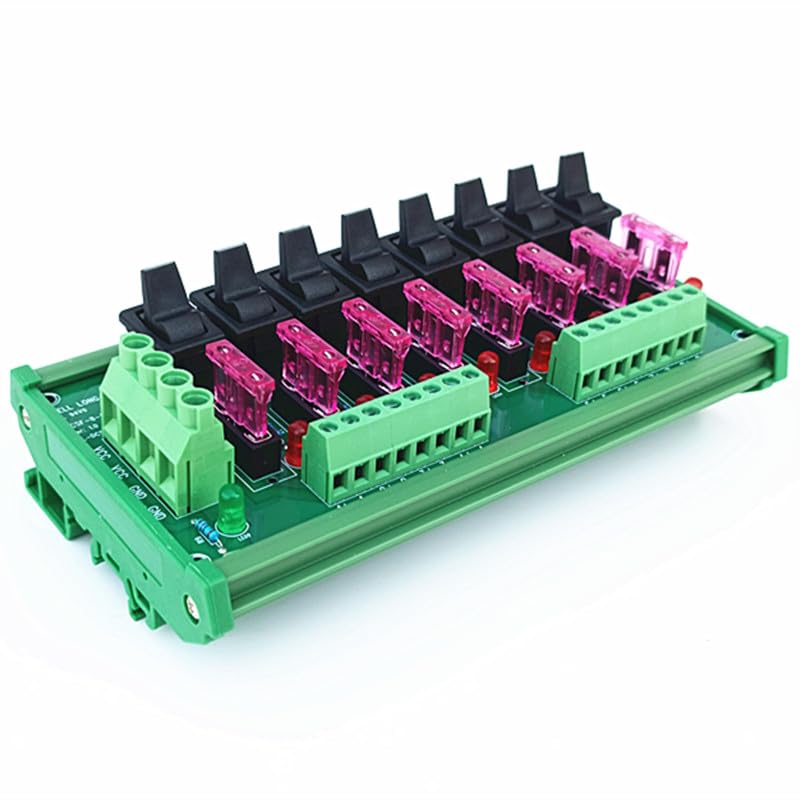

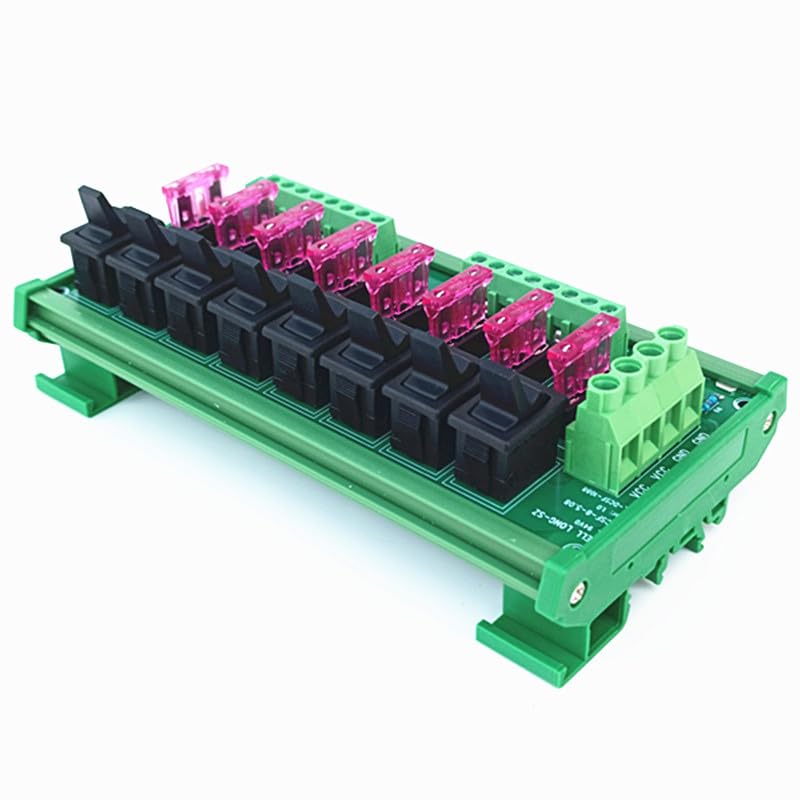

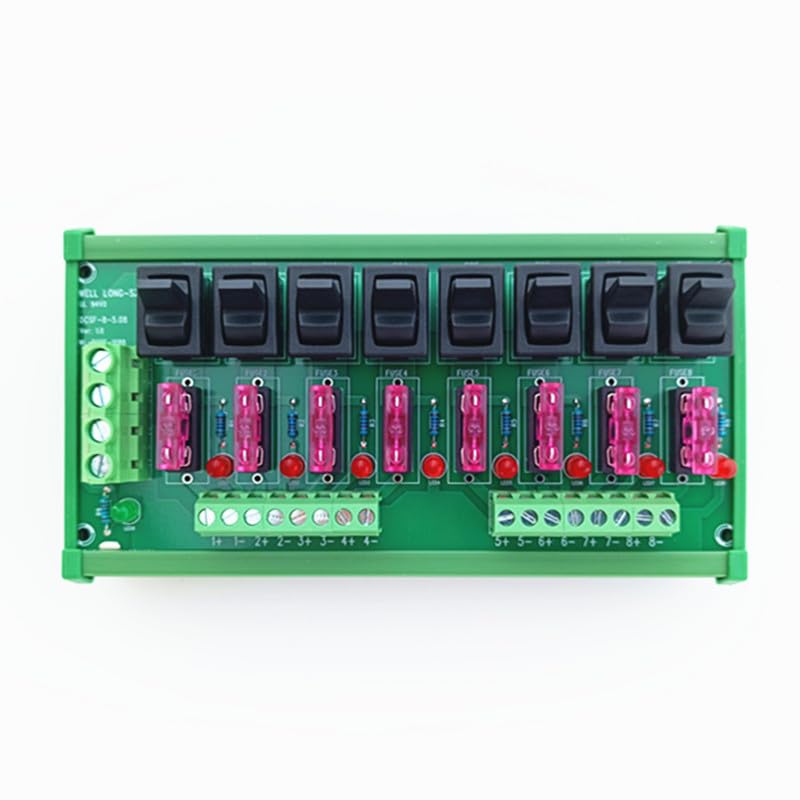

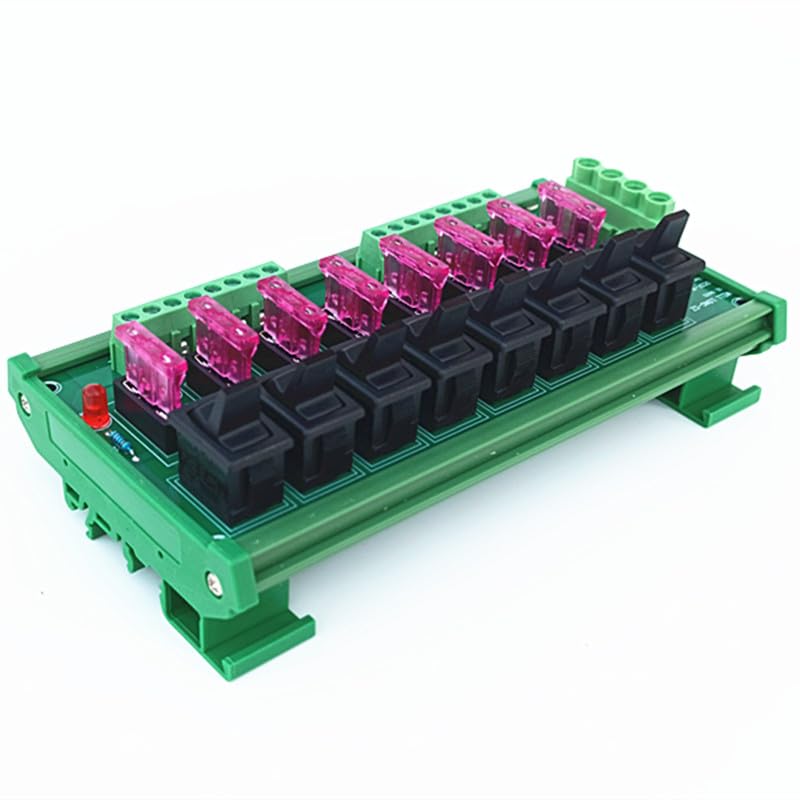

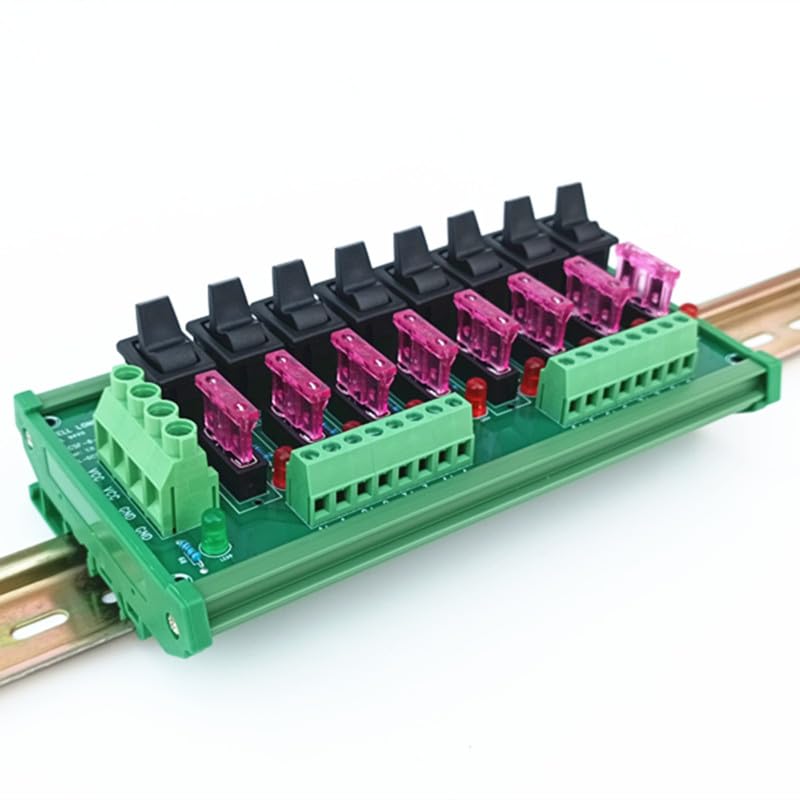

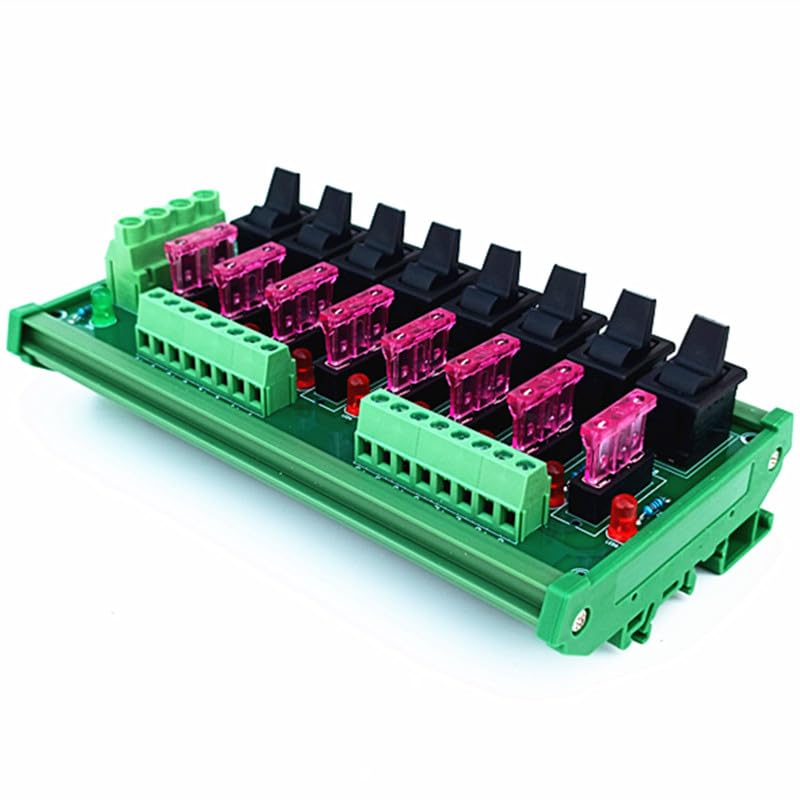

DIN rail mounted 8 Position Rocker Switch distribution fuse module board FR-4 fiberglass double copper layer printed circuit board. High-quality, fire-resistant nylon DIN-rail mounting bracket supports rail widths up to 35mm 32mm 15mm. Rocker switch ON/OFF power output for Each channel With indicator LED With switch power ON LED indication. Fuse holder for Medium Blade Fuse, factory installed fuse is 3Amp. Working voltage: AC or DC 5~32V, maximum output current 3Amps Each channel, can replace the fuse according to your needs. Input Terminals: Pitch - 7.62mm/0.3”, 30A per position, Wire gauge 26~10AWG, Stripped wire length 8mm, Metric M3 slotted screws. Output Terminals: Pitch - 5.08mm/0.2”, 28A per position, Wire gauge 26~12AWG, Stripped wire length 7mm, Metric M2.5 slotted screws.
- DIN rail mounted 8 Position Rocker Switch distribution fuse module board
- Rocker switch ON/OFF power output for Each channel With indicator LED With switch power ON LED indication.
- Working voltage: AC or DC 5~32V, maximum output current 3Amps Each channel, can replace the fuse according to your needs.
- nput Terminals: Pitch - 7.62mm/0.3”, 30A per position, Wire gauge 26~10AWG, Stripped wire length 8mm, Metric M3 slotted screws.
- Output Terminals: Pitch - 5.08mm/0.2”, 28A per position, Wire gauge 26~12AWG, Stripped wire length 7mm, Metric M2.5 slotted screws.
| Color | Green |
|---|---|
| Model | DCSF-1088C-A3 |
| Pitch | 0.1 Inches |
| Voltage | 32 Volts |
| Brand Name | SZ-WEEL LONG |
| Part Number | DCSF-1088C-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Idc Header |
| Current Rating | 3 Amps |
| Number Of Poles | 8 |
| Specification Met | UL |
| Temperature Range | -20to50 Degrees Celsius |
| Number Of Contacts | 8 |
| Included Components | Terminal Block, Connector, Din Rail Mount,Rocker Switch,Fuse |
| Item Dimensions W x H | 6.3"W x 2.1"H |
| Upper Temperature Rating | 50 Degrees Celsius |
