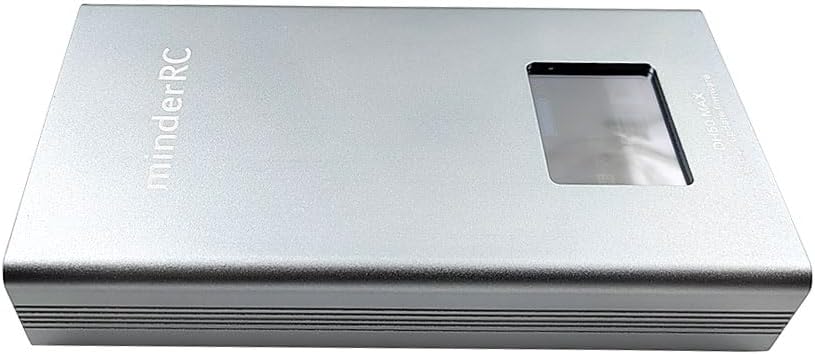

DH50 MAX 10000mAh Spot Welder Adjustable 30 Gears Touch Screen for Max 0.2mm Nickel Strip Portable Spot Welding

DH50 MAX Spot Welder Screen: Touch Screen Material: Metal Case Battery Capacity: 10000mAh Welding Output: MAX 650A Charging Port: Type-C Product Weight: 440g Product Size: 150x81x29mm U Disk Firmware upgrade DH50 MAX Packaging Include 1 x Mini Spot Welder 1 x Welding Pen 1 x Type C Charging Cable 1 x 0.12mm*8mm*2m Nickel Plated Steel Belt 1 x User Manual Please full charging before using! If you receive the spot welding machine and find that it can't be turned on or there is no response when inserting the charging wire, it is recommended to charge the spot welder for more than 3 hours. Please don't use PD power adapter or PD charging wire. We suggest directly connect the charging wire coming with spot welder from power adapter USB-A port to spot welder Type C port，and power adapter need 5V current above 2A for fast charging. How to Reset Spot Welder If spot welder screen still can not light up after 60 minutes,you can disconnect charging wire,then click the rst hole next to the charging port to reset the spot welder. After rest,you can try to power on or insert charging wire to charge spot welder. How to Welding After spot welder powered on,try different gears from low to high,we suggest use gear 14 or 15 to welding 0.12mm nickel steel strip. The thickness of the solder needs be thicker than the nickel strip and make sure the nickel strip and the battery surface shold be clean and close contact with each other. When welding, press down the soldering pin lightly,can't be pressed hard,the harder you press, the less solid welding will be. When the spot welder detects the welding pin is placed,start welding.

• Color Touch Screen: one place to touch setting all menus,can clearly know gear level,the remaining battery, delay time and temperature of the spot welder
• 30 Gears Adjustable：1 to 5 gears suit to fix phone battery,14 to 15 gears common use to welding 0.12mm nickel plated strip
• Built-in 10000mAh Rechargeable Battery: with type-C charging cable,can be fully charged within 3 hours
• Replaceable Welding Pin: welding needles will wear out during the welding process, the design of replaceable welding needles can reduce usage costs
• Wide Application: can use to fix tools,phone battery or welding of nickel sheet to cylindrical battery like 18650,21700 etc to make power source.
• Upgradeable firmware
