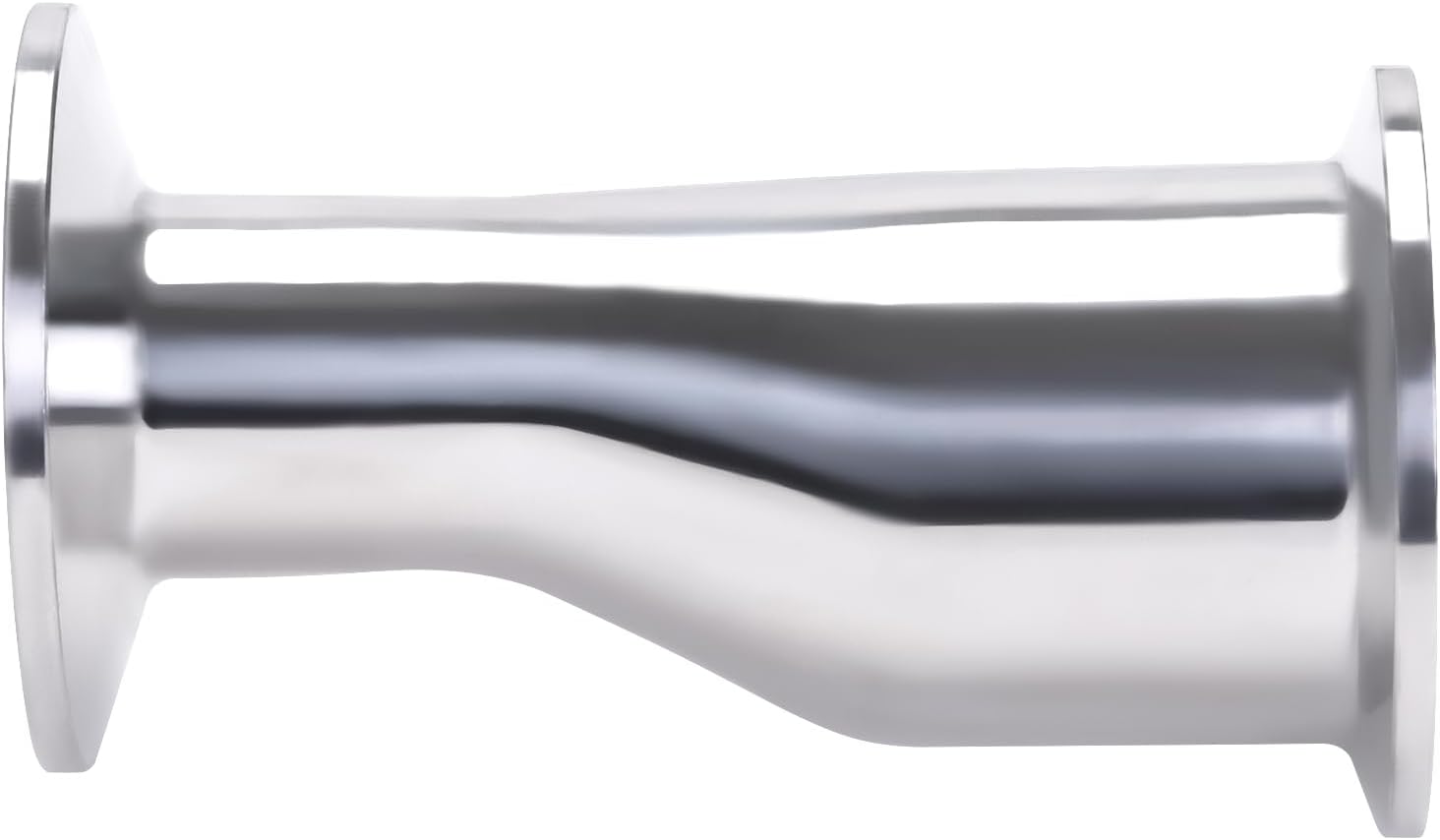

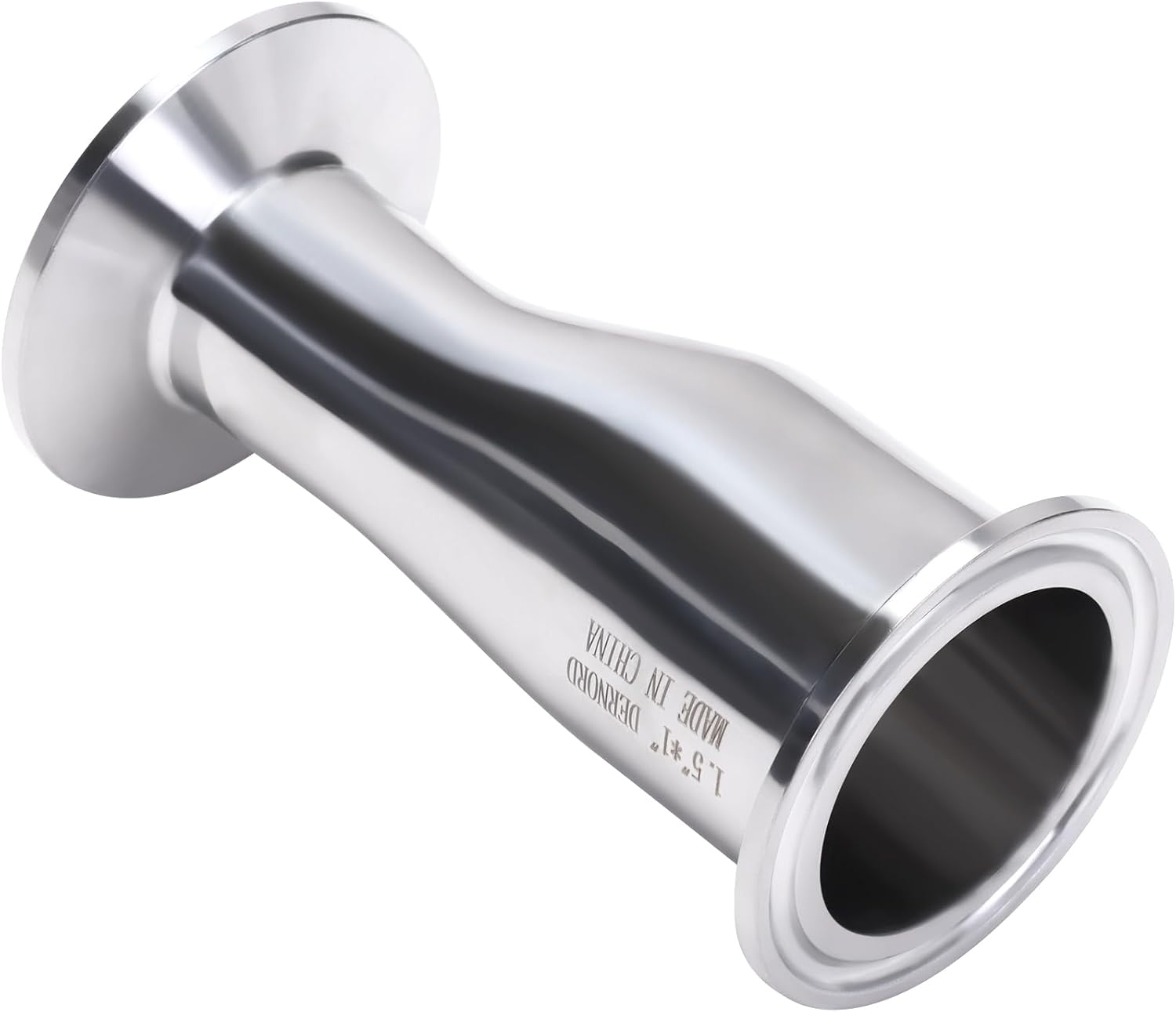

DERNORD Eccentric Reducer Sanitary Fitting Tri Clamp Ferrule Style 1.5 inch Tube OD x 1 inch Tube OD SS304

DERNORD Tri Clamp eccentric reducers is made of stainless steel 304 ,and they are designed primarily to reduce in a horizontal flow application. Because they are flat on one side, there is no risk of pooling, unlike their concentric reducer counterparts.They are also well suited when one end is offset from the other in a vertical position. They are designed to be inserted inline and have a lower chance of producing agitation. This DERNORD reducer anitary fitting are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes, and shapes. When purchasing DERNORD fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

• Pipe OD Size(38MM end):50.5mm ferrule fits 1.5" tri clamp
• Pipe OD Size(25MM end):50.5mm ferrule fits 1.5" tri clamp
• Eccentric reducer fitting to connect two pipes of different diameters that are along the different pipe axis
• Fitting clamps to tubing on both ends for a non-permanent seal, providing take-down access
• Stainless steel 304 for resistance to corrosion and high temperature
