DC Low Resistance Meter Tester Handheld Ohm Gauge Testing Instrument with Measuring Range 10μΩ to 200KΩ Accuracy 0.1% Display Max 20000

QIUSUO DC Low Resistance Meter Tester Handheld Ohm Gauge Testing Instrument with Measuring Range 10μΩ To 200KΩ Accuracy 0.1% Display Max 20000 Overview: *The handheld DC low Resistance meter is of high precision with wide-range, adopting high performance 32 -bit ARM microprocessor control. It can make measurement on real time automatically. can make precision measurement to power supply devices at any place. Resistance test range 10μΩ~200kΩ, Max display 20000 digit with temperature compensation function. can guarantee 0.1% accuracy even under the test speed of 15 times/sec, And the reading jitter is controlled below 3 words. The particular current mode can meet different test requirements. equipped with Mini-USB communication port for remote control and data collection,analysis, U disk port can record the values change of measured products.It can test all kinds of high, medium, low value resistors, all kinds of switch contact resistances, connector plug resistance; relay coil package and contact resistance;transformer, inductor, motor, deflection coil winding resistance; conductor resistance; metal riveting resistors for cars, boats and airplanes, printed circuit board lines and hole resistance etc. Features: *Gorgeous dual-color cast shell *Battery and external power supply *Automatic power off Function *ABS/ PER/SEQ comparison criteria *Comparator Function: GD/NG Show *3.5 inches, Truecolor 16M, TFT-LCD Display *Auto Zero-Adjust for each range *Four-terminal resistance measurement. *Mini-USB interface *SCPI compatible command sets *Keypad lock function *Switch both in English and Chinese. *Background-lightness adjustment function *Automatic shutdown set *Size: 210.76mm (Length)*130.23mm (Width)*37.88mm (Heigth) *Weight: 500g *Battery: 8.4V, Li, 2200mAh, chargeable *Max power: ≤5W *Battery capacity: Over 8 hours’ continuous use Specification: *Parameter:DCR *Accuracy:0.1% *Measurement Range:10μΩ～200KΩ *Measurement current:I-Max：<1A current mode: high current *Range:automatic, manual, nominal, 7 range *Speed:3 times/s *Display:ABS/PER/SEQ *Display Max:20000 *Adjustment:short-circuit reset for all range *Comparator:build -in sorting recorder, GD/NG sorting result display *Trigger:Internal, manual *Interface:Build-in Mini-USB interface *Temperature compensation：/ *Method：4 terminal shielding (2 check terminal & 2 driving terminal), external shielding ground section *Power Supply：Input:100-240V~50/60Hz 0.35A output： DC9V 1A. 8.4V，2200mAh Li battery *Dimension & Weight：130.23 x210.76 x37.88 weight：650g *Accessories：ATL501B 4 terminal kelvin test, ATL909 DC adaptor, ATL202 bag, ATL804 Li battery *Optional Accessories：ATL105Mini-USB communication cable, ATS518 data acquisition software(If you need,please contact us) *Other Functions：5-inch true color 16M color TFT-LCD large font display; keyboard lock, data retention function; compatible with SCPI command set; Chinese and English switching; backlight adjustment; automatic shutdown Application: ●All kinds of low, medium, high resistor ●Switch contact resistance ●Enamel-insulated wire resistance ●Connector Contact ●Relay/switch connector contacts ●Transformer, Inducer, Motor, Deflection coil winding resistance ●Welding Spot ●Wire resistance ●Metal riveting resistance of vehicle, vessels, airplane ●Pure resistance ●The resistance of motor and transformer ●Printed board line and hole resistance ●Low resistance character of Electromechanical Components

• Gorgeous dual-color cast shell
• Battery and external power supply
• Automatic power off Function
• ABS/ PER/SEQ comparison criteria

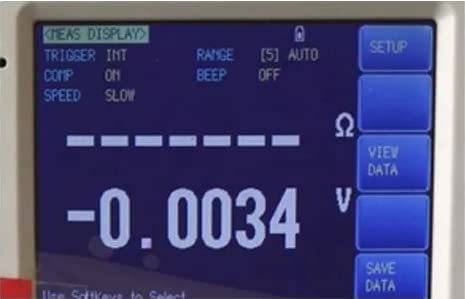

• 3.5 inches, Truecolor 16M, TFT-LCD Display
