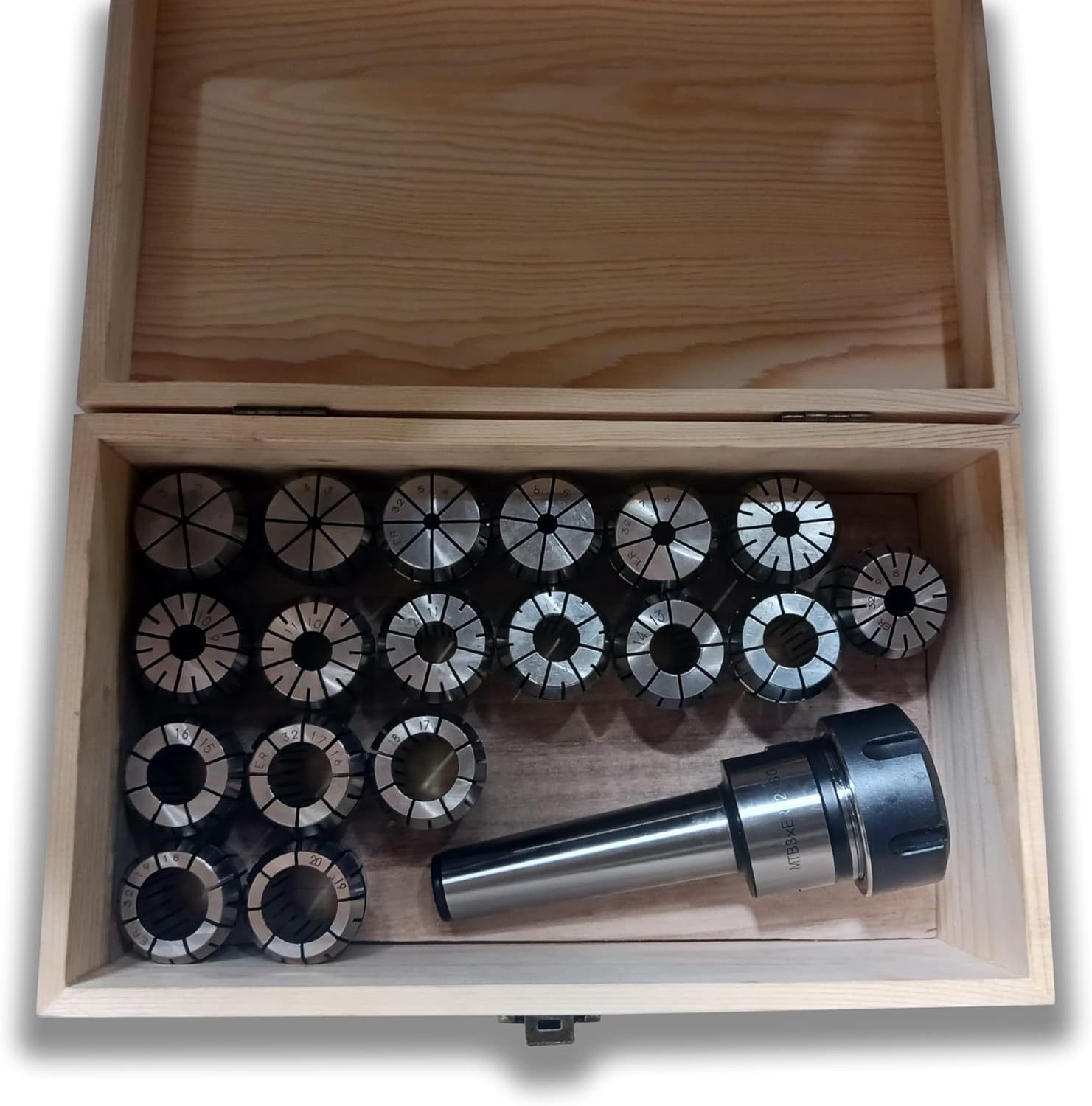

Collet Chuck Hand for Lathe MT3-ER32 M12 and ER32 Collet Chuck Set (18 Piece)
4.8 (26 items)
Limited Time Sale$122.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210013819 | Release Date | 2026/04/02 | List Price | $81.60 | Model Number | 210013819 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

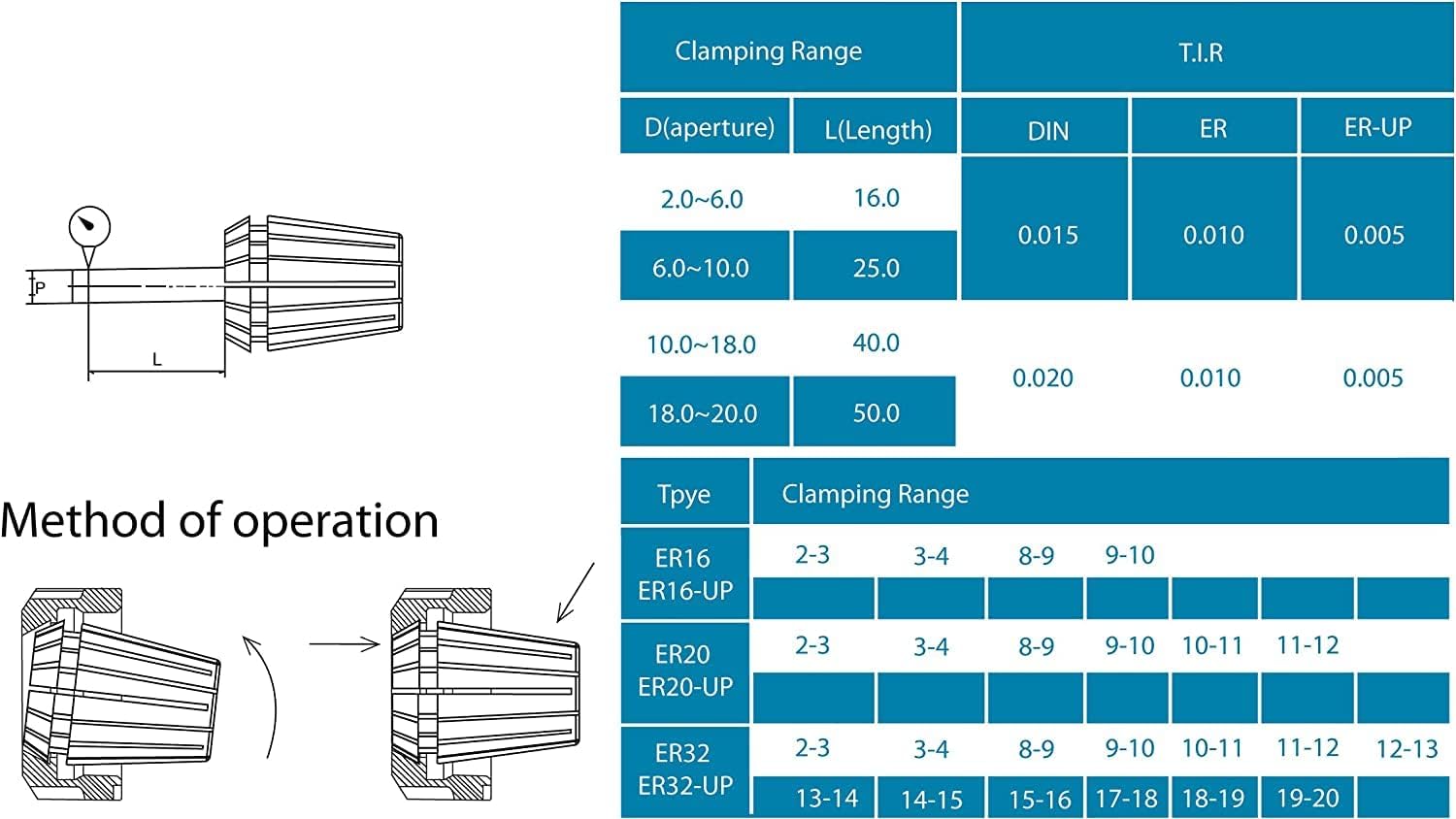

K-Gualda Collet Chuck Hand MT3-ER32 M12 Material: SCN21: ER32 collet chuck set (18 pieces) Taper angle is ideal 8° Adopts a self-release type with the eccentric ring of collet grooves and clamping nuts, making it easy to remove tools without the use of a collet removal tool. Material: High carbon chrome bearing steel (SUJ2 material) Clamping Range is 0.015 T.I.R (0.08 - 0.79 - 0.8 inches (2 - 3 - 19 - 20 mm)
- MT3 Morse Taper, manufactured according to the 'ISO 15433' standard.
- This is manufactured using a milling cutter.
- Milling tools.
- This is an ER32collet set (14 pieces). The taper angle is manufactured in accordance with the DIN 6499 / ISO 15488-B 8° standard.
- The material of the ER collet chuck is SCM415, and the ER32 collet is made of SUJ2.
- The accuracy of all products is checked with an ER32 AA grade collet before shipment.
| Capacity | 1 Millimeters |
|---|---|
| Lock Type | Automatic |
| Brand Name | K-Gualda |
| Handle Type | Manual |
| Item Weight | 4 Kilograms |
| Thread Size | M12 |
| Manufacturer | K-Gualda machine co LTD |
| Item Diameter | 32 Millimeters |
| Material Type | High Carbon Steel |
| Included Components | ER32 Collet Chuck Set (18 Pieces) |
| Manufacturer Part Number | KG-MT3-ER32+ER32 COLLETS |
