AURSINC NanoVNA SAA-2N V2.2 Vector Network Analyzer 50KHz-3GHz with NanoVNA Testboard Kit, Test Demo Set Tool Compatible with DIP Quickly Assemble a Simple RF Circuit and Evaluate

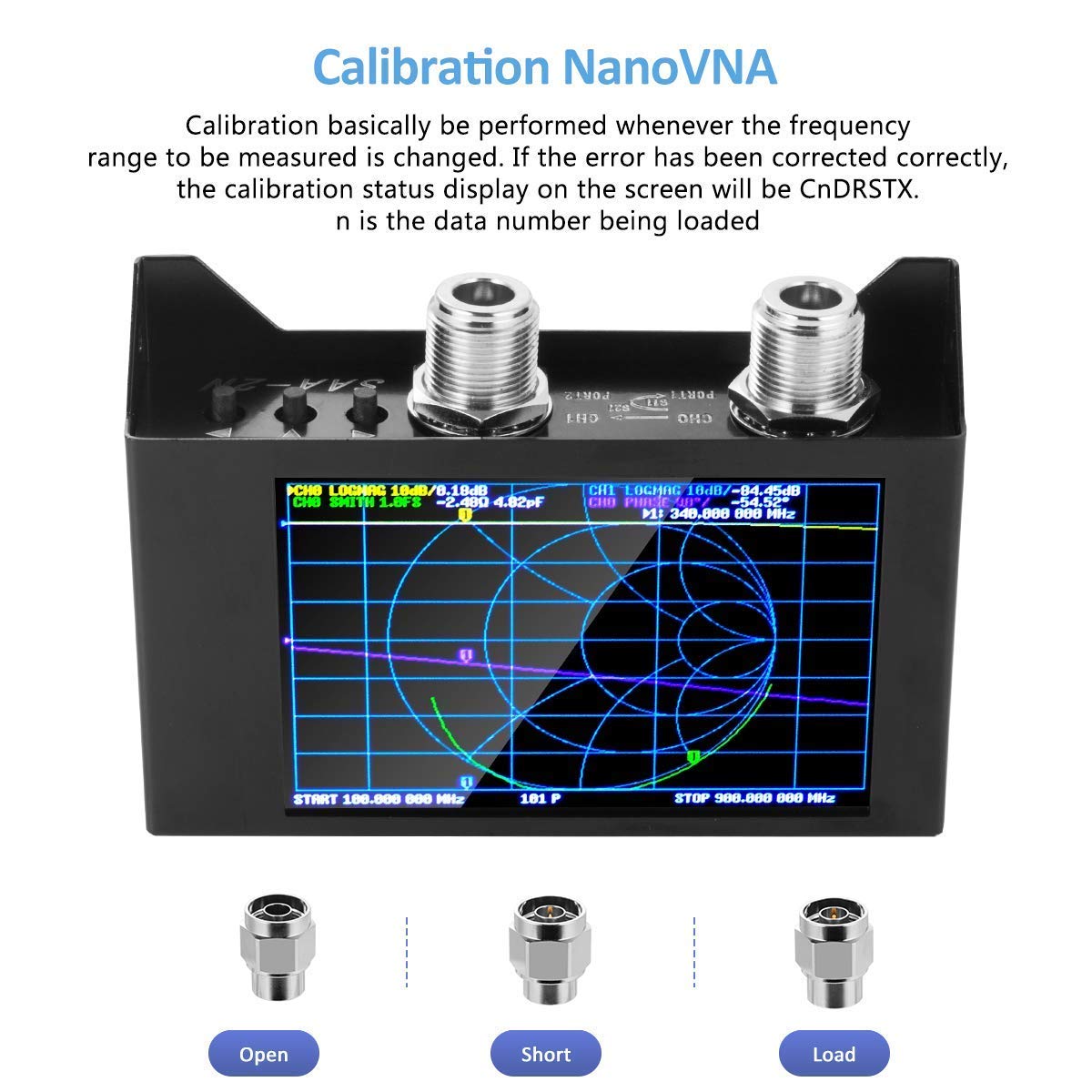

The SAA-2N/NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.

• [NanoVNA SAA-2N] The SAA-2N is a two port T/R (transmission/reflection) VNA which can measure the S parameters S11 & S21 of a two port network, or the reflection coefficient(S11) of a one port network. The nano vna saa-2n has a 4.0 inch touch screen for easier data reading and testing. It is constructed with a durable and practical metal shell, and comes with a carrying bag for portability
• [NanoVNA SAA-2N] The frequency range of the SAA-2N antenna analyzer is 50kHz to 3GHz. Transmission Mearsure S21: 70dB (50KHz-1.5GHz), 60dB (1.5GHz-3GHz); Reflection Measure S11: 50dB (50KHz-1.5GHz), 40dB (1.5GHz-3GHz); Antenna Analyzer: 1.005 (50KHz - 1.5GHz), 1.02 (1.5GHz-3GHz)
• [NanoVNA SAA-2N] The NanoVNA-SAA-2N developed by Hugen, designed in collaboration with OwOComm. Under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at Development Department, in line with the original technical specifications
• The Testboard kit allows NanoVNA users to assemble a useful Component jig to quickly assemble a simple RF circuit and evaluate their performance on the NanoVNA. This test board contains a plug-in test circuit suitable for VNA Testboard, and a set of 0805 and 1206 patch test circuits are added
• The testboard kit is utilized for user-friendly measurement of DIP and SMT devices with NanoVNA or other vector analyzers. Product come unassembled, you need to assemble according to your purpose. Please prepare your own welding tools and build a test circuit according to your test needs. We are not responsible for circuit guidance
