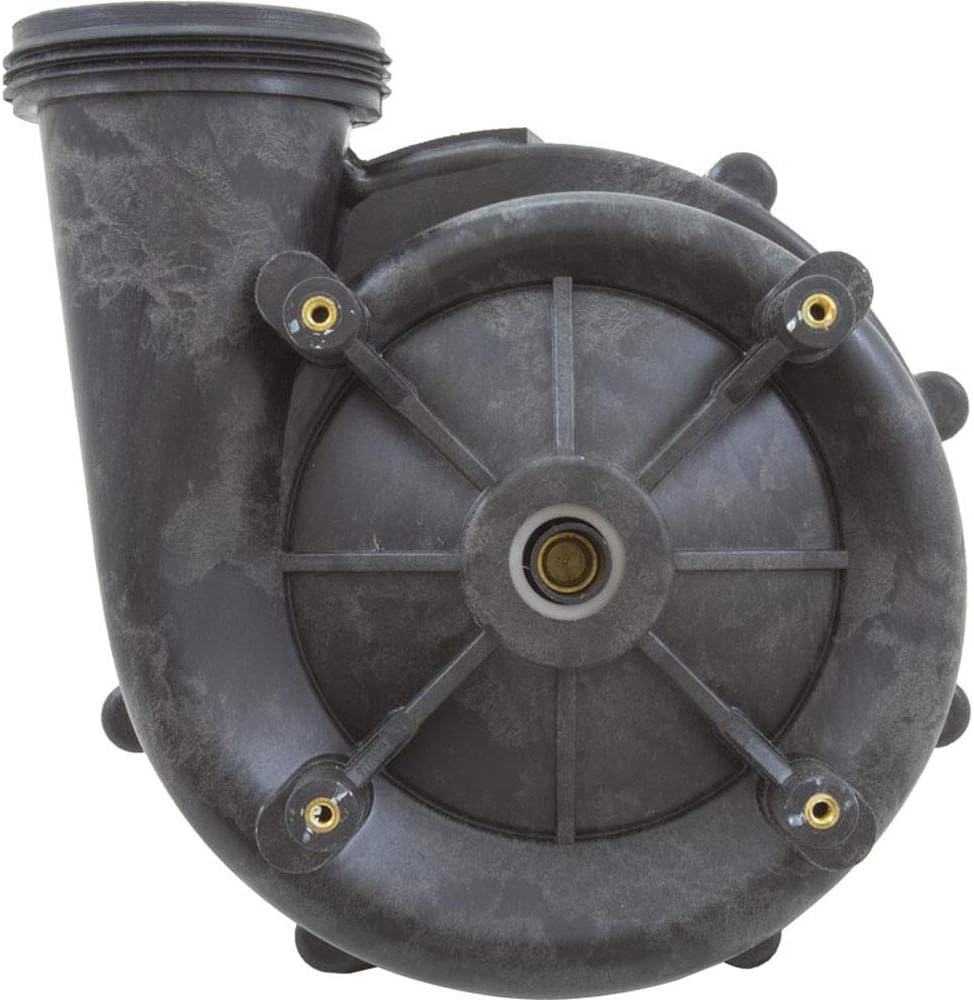

Aqua Flo Wet End, Gecko XP2/XP2E 1.5ohp/2.0thp 2" MBT 48fr

AquaFlo/Gecko Wet EndSide discharge, 2"mbt suction/discharge, 48 frame wet end for XP2/XP2E pump. This wet end is used with a 1.5 HP, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.Motor and unions sold separately.NOTE: 1 Silver, 1 Yellow dot on the shaft of the impeller.Product Specifications: Pump to Motor Foot Types: 9 Motor Frame: 48 Frame Thru-Bolt Drain Plug Location: 4,6,9 o`clock Suction Auxillary Port: None Suction Style: Center Suction Connection (Physical Dimension): 3-1/16"od Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2" Discharge Auxilary Port: None Discharge Style: Side Discharge Connection (Physical Dimension): 3-1/16"od Discharge Connection Type: Male Buttress Thread (mbt) Discharge Pipe Size: 2" Horsepower: 1.5hp Manufacturer: AquaFlo/Gecko Pump Model: Flo-Master XP2e Manufacturer Impeller Number: 91695150 Volute Fastening Type: 8 Screws Volute/Sealplate Number: 92770705

• Wet End, Gecko Aqua-Flo XP2/XP2E 1.5ohp/2.0thp 2"mbt 48fr.
