5PCS XL0401 Rectifier Diode Module XL0401 Low MOS Dedicated Chip to Simulate Simulation Ideal Diode 3-26V 10A/15A 5.5MΩ
4.2 (52 items)
Limited Time SaleUntil the end
16
34
41
$54.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $90.00
Product details
| Management number | 211047913 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211047913 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

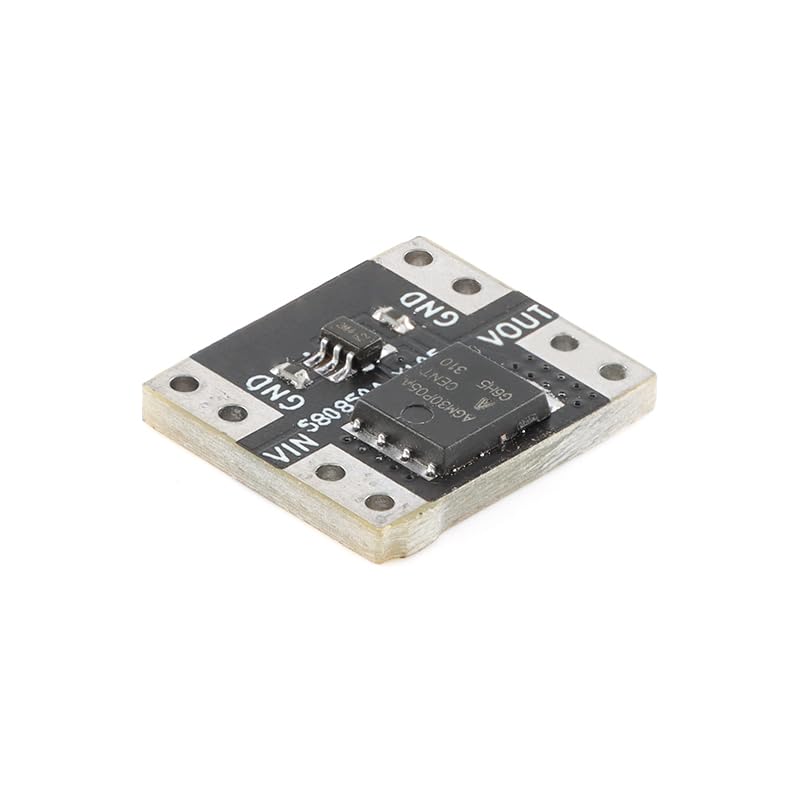

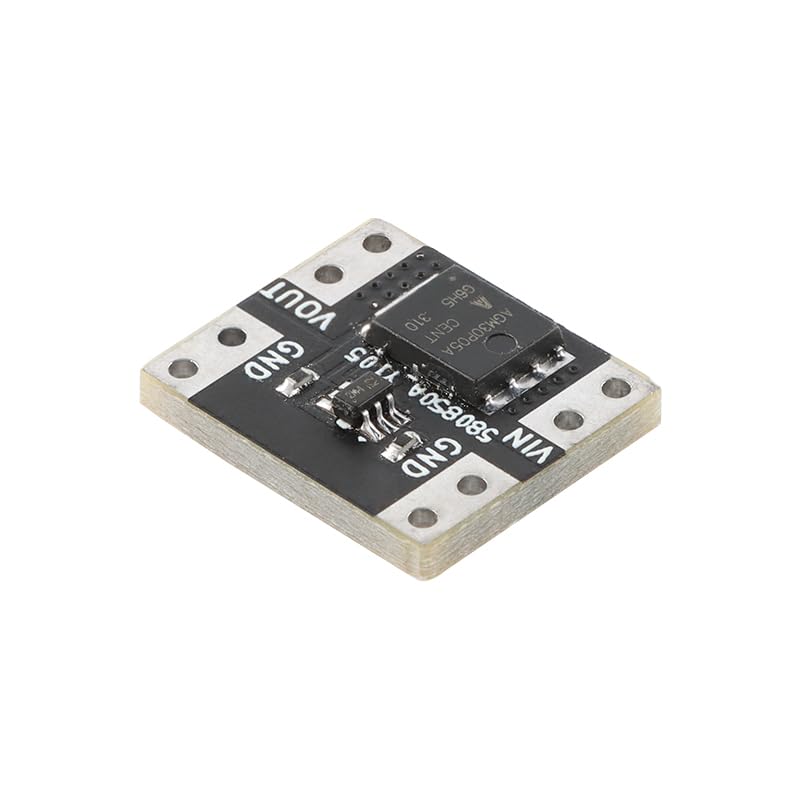

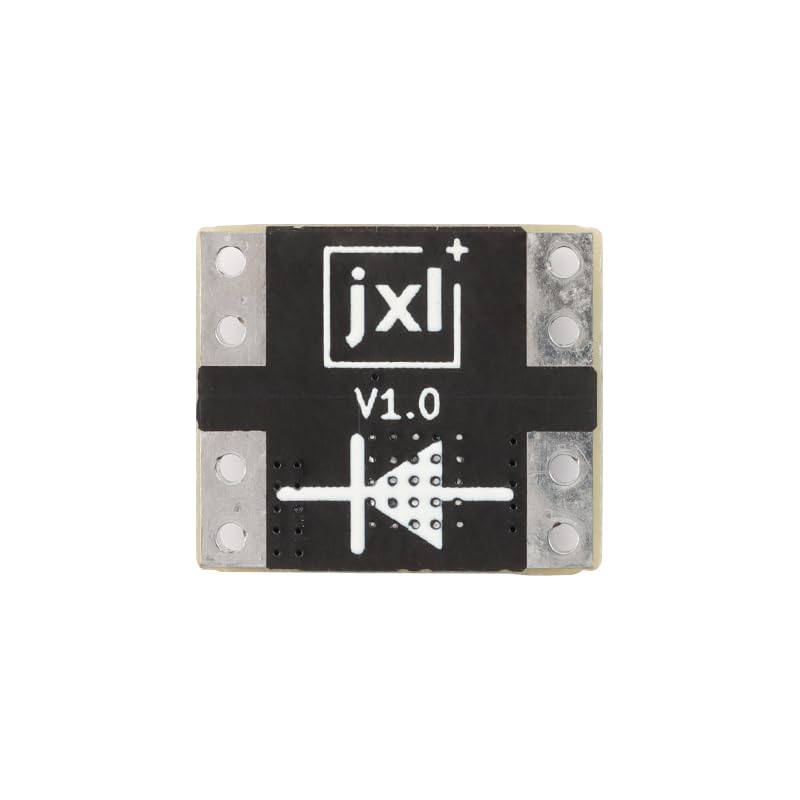

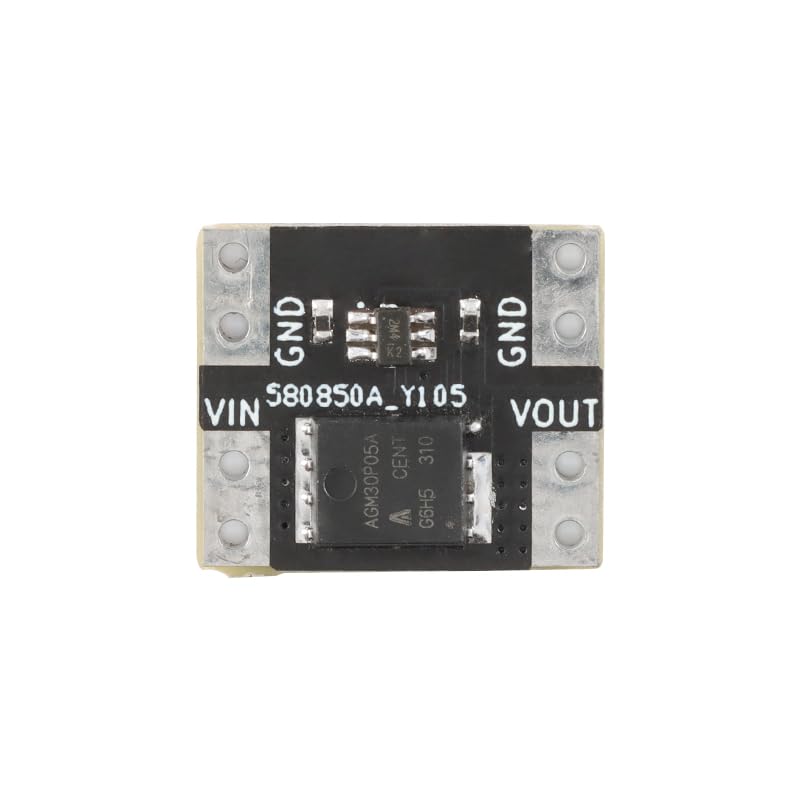

- The XL0401 ideal diode module uses a dedicated chip to simulate an ideal diode rectifier.
- The module adopts a 5.5m Ω low internal resistance MOS, which reduces the voltage drop during high current operation, avoiding the high voltage drop of 0.7V in ordinary diodes. The reduction in voltage drop also greatly reduces heating.
- When a 0.3V Schottky diode operates at a 10A current, its heating power consumption is 3W (actually much higher). In actual testing, the XL0401 ideal diode operates at a 10A current, with a voltage drop of about 100mV and a heating power consumption of about 1W.

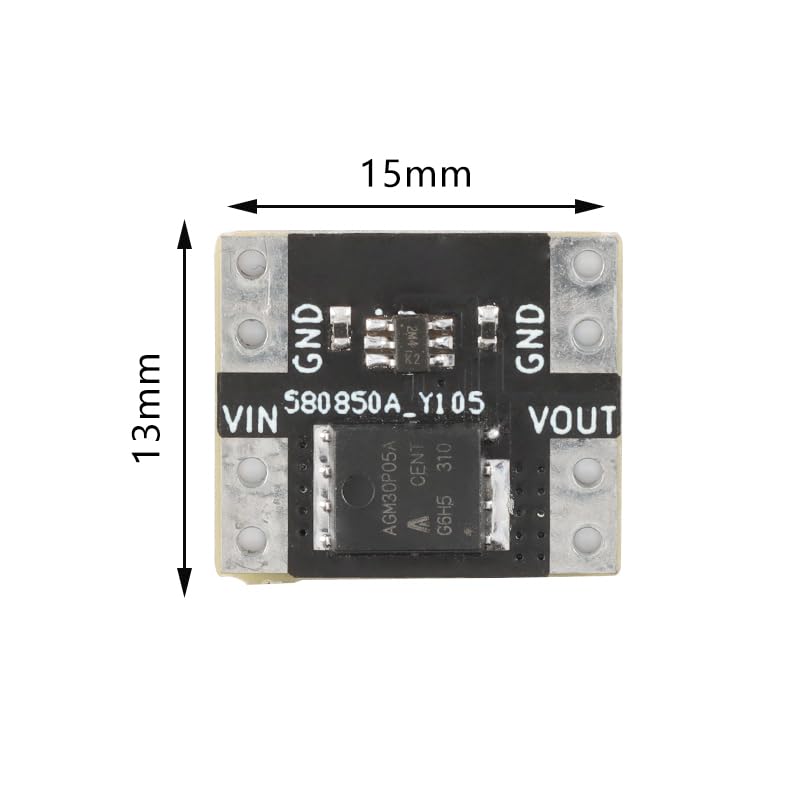

- Working voltage: 3V~26V, module size: 15 X 12.8 X 3 4mm，Positioning method: welding fixation
- Working current: 12V 25 ° C without heat dissipation measures ≤ 10A (10A long run test for 30 minutes), 12V 25 ° C heat sink+air cooling ≤ 15A (15A long run test for 30 minutes). Theoretically, better heat dissipation can be achieved with higher current, but limited heat dissipation conditions above 15A have not been tested for long run
| Interface | USB |
|---|---|
| Brand Name | JESSINIE |
| Manufacturer | JESSINIE |
| Material Type | Semiconductor |
| Mounting Type | PCB Mount |
| Number of Channels | 1 |
| Maximum Supply Voltage | 26 Volts |
| Minimum Supply Voltage | 3 Volts |
