5.8GHz VCO Generator Module with Sweep Power
4.2 (31 items)
Limited Time Sale$19.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160589 | Release Date | 2026/04/04 | List Price | $12.80 | Model Number | 211160589 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

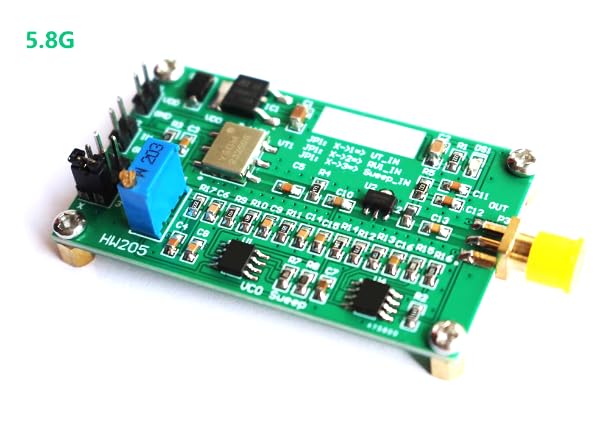

5.8GHz VCO signal generator HW205 VCO generator module with sweep power 1.1 Module parameters Parameter unit Output frequency range 5725~5850 MHz Output frequency range 2300~2485 MHz Maximum output amplitude <15dBm dBm Working voltage 7~12 V Size 60*35 mm Weight: 12 g 2.0 P1 interface: VDD: positive power supply; GND: negative pole of power supply; P2 interface: VT_IN: Input tuning voltage (VCO) signal (0~9V). GND: The negative pole of the power supply. P3 interface: output signal. (RP SMA KE KHD outer screw inner hole) JP1 jumper: select external or internal (potentiometer) or sweep frequency input tuning voltage, JP1: x->1 => VT_IN; JP1: x->2 => RV1_IN; JP1: x->3 => Sweep_IN; RV1: Internal (potentiometer) input tuning voltage; The sweep frequency is about 30KHz
- Output frequency range 5725~5850 MHz
- Output frequency range 2300~2485 MHz
- Size 60*35 mm
- Working voltage 7~12 V
| Color | Green |
|---|---|
| Brand Name | YILUBAO |
| Style Name | see details |
| Manufacturer | YILUBAO |
| Power Source | See Details |
| Included Components | see details |
