5 Inch Relay Output Integrated HMI & QM3G-50FH Industry Programmable Controller

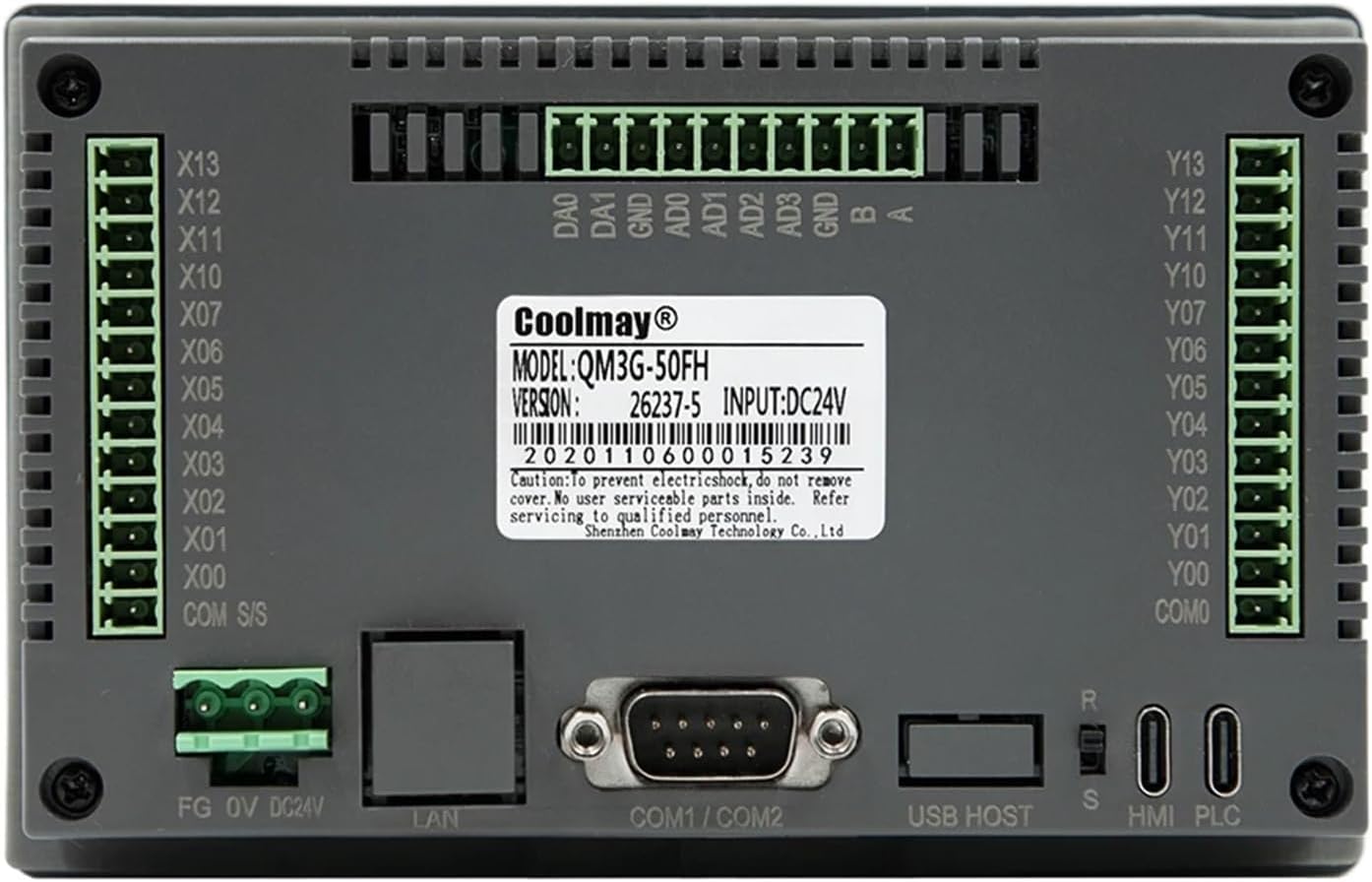

Panels5 Inch Relay Output Integrated HMI & QM3G50FH Industry Programmable ControllerThe packagewill include1 set of device QM3G-50FH-24MR-4AD-2DA-A4-V-485P.SpecificationModelQM3G-50FHDimension151*96*36mmCutout size143*86mmWeight(kg)0.3Input24VDCPower Consumption5-7WHMIHMIFeature60Kcolorsresistive touch screen, supports portrait displayType5"TFTDisplay size108*65mmResolution(pixels)800*480RAM64MB(Please inquire if requires storinghistorical data)ROMNOR Flash 8MBCPU32bit CPU 408MHzCOM portsType-C HMI download port (can download program through the USB penetrating function),RS232portSoftware TPWorksHMI Programming Software I/O level-Input: Passive NPN, public terminal isolated-Transistor output: Low level NPN, COM connect to negative-Relay output:Normally open dry contactDO typeand load-MT: 2A/point, 4A/4 point COM, 5A/12 point COM-MR: 2A/point, 5A/12 point COMHigh-speed countingSingle phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,or 2 ABZ 60KHz + 1 AB phase 10KHzHigh-speed pulse(Only for MT models)8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.<; 480KHzCOM port1x TYPE-C, 1x RS232, 1x RS485SoftwareCompatible with GX Developer8.86 and GX WORKS 2==========Model Number : QM3G-50FH-24MR-4AD-2DA-A4-V-485PMotor Type : MotorProduct name : Programmable Logic ControllerFeature : 60K-color Resistive Touch ScreenService : .ODMCPU : 32 bit CPU 408MHzSupply Voltage : DC24VPower consumption : 5-7WDI/DO : 12/12 (relay output)AI/AO : 4AI(4-20mA)/2DA(0-10V)
