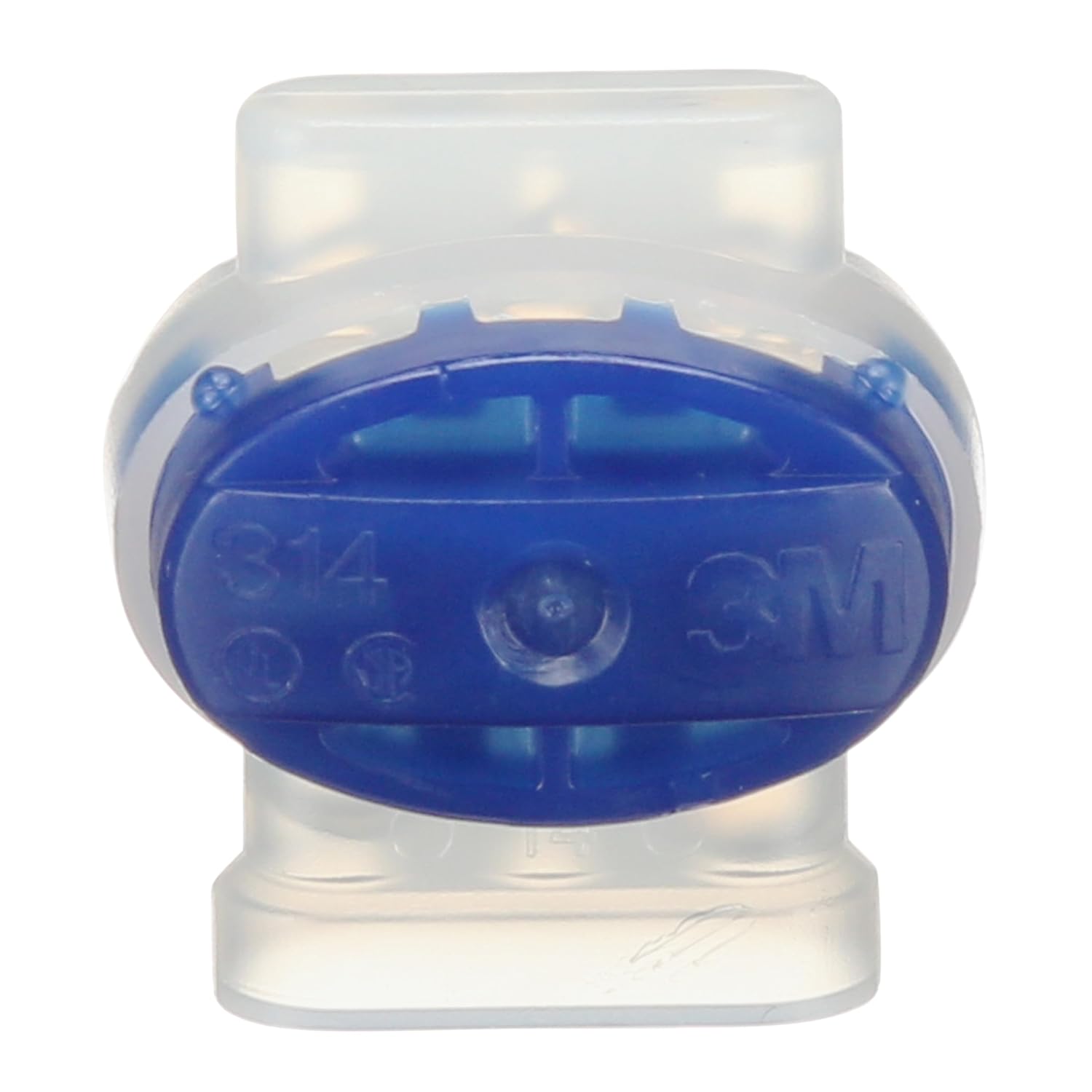

3M Scotchlok Electrical IDC (Insulation Displacement Connector) 314-BOX, Pigtail, Self-Stripping, Moisture-Resistant, Blue, 22-14 AWG (solid/stranded), Pack of 50

3M Scotchlok Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant and moisture resistant. 3M Scotchlok Insulation Displacement Connector 314 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant. Application: Use Part No. 314 to electrically connect two or three wire ends, insulate the connection, and provide a moisture resistant seal. Wire Range: 22-14 AWG Solid or stranded, tinned or untinned (0,5-1.5 mm2) copper conductors. For use with common thermoplastic insulated wires: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT with a maximum insulation diameter of .150 inches (3,8 mm). Maximum recommended current for general purpose applications: 22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG - 7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS. Recommended Crimping Tool: E-9BM and/or Mechanics (slip joint) Pliers

• Flame retardant, nylon-insulated wire connector with blue cap and white body connects 2 or 3 wires
• Tin-plated brass element construction provides good conductivity and corrosion resistance
• Accommodates 22 to 14 AWG solid/stranded copper and common wires T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• Operating temperature 221F (105C) with a 600 volts maximum for building wire, and a 1000 volts maximum for signs, fixtures and luminaires
• Not recommended for direct underground burial or other submerged applications
• For industrial/occupational use only. Not for consumer sale or use
