350W Three-Phase Brushless Motor 120000 RPM 5MM Shaft Motor Vacuum Cleaner Fan Motor 50.2mm Diameter
4.4 (118 items)
Limited Time Sale$52.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210006405 | Release Date | 2026/04/02 | List Price | $34.80 | Model Number | 210006405 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

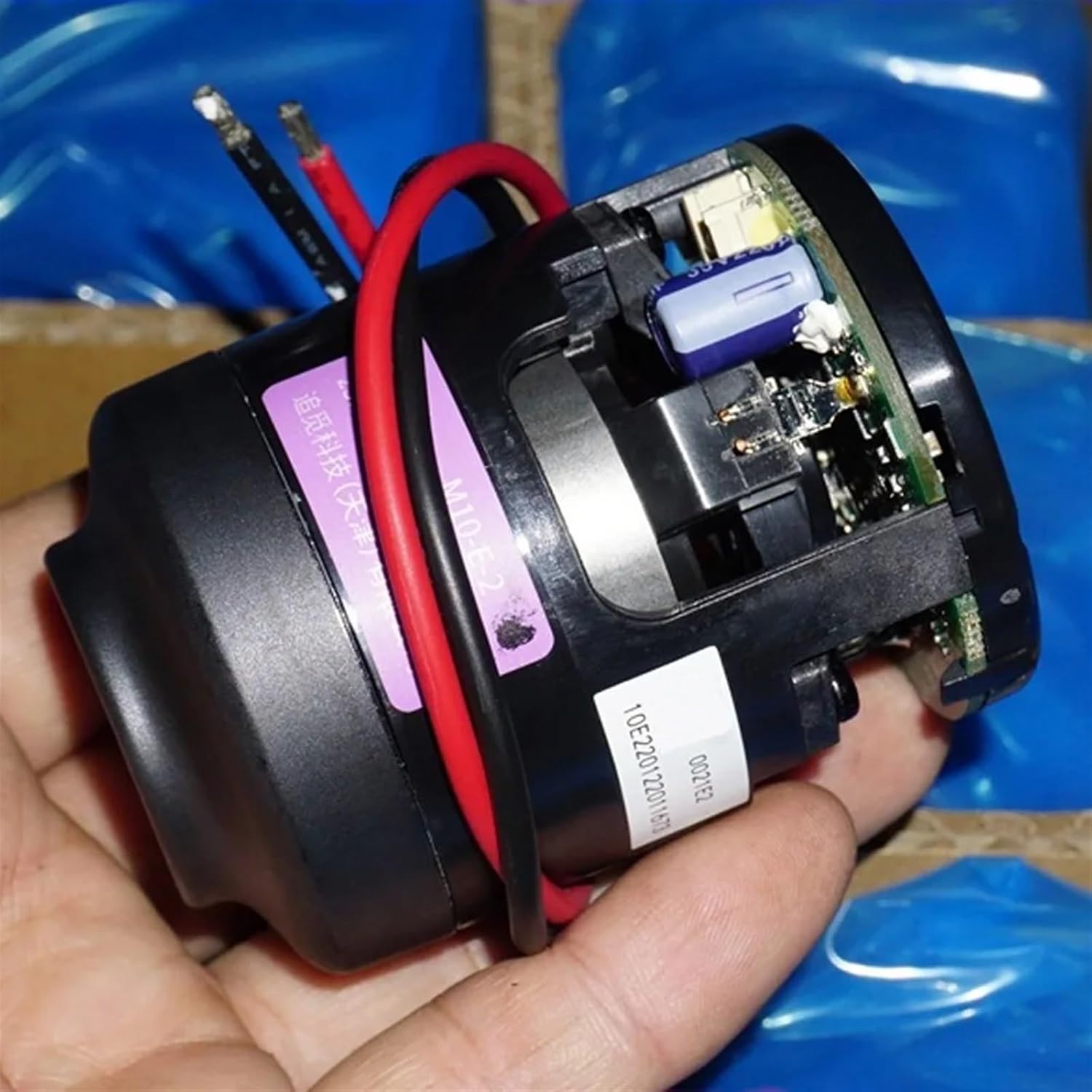

Generators120000 RPM 350W High Power Three-phase Brushless Motor Super High Speed Brushless Motor Vacuum Cleaner Fan Motor 50.2mm Diameter High-power ultra-high-speed three-phase brushless motor, nominal 25.2V350W, the motor's own drive can't be powered on and run at present, it is estimated that there is a communication protocol, and now it can be driven by a model aircraft brushless ESC, the motor is suitable for 12-24V Voltage range, measured 12V voltage, the current of 7A is about 85W, 14V can 9.7A about 136W, 18V can 14A about 250W, the effect is not bad.The motor shaft with the impeller removed from the motor is a standard 5mm, which is suitable for refitting others. However, after removing the impeller, the motor needs to pay attention to heat dissipation, and the heat is extremely large. The refitting needs to be studied by yourself.The diameter of the motor body is 50.2mm, the total length of the body is 70mm, and the measured KV value is about 4800.Specifications:Motor diameter: 50.2mmMotor length: 70mmMotor speed: 120000 RPM Package Included:1x Brushless Motor Vacuum Fan==========Motor Type : Stepper Motor
- Generators
- 350W Three-phase Brushless Motor 120000 RPM 5MM Shaft Motor Vacuum Cleaner Fan Motor 50.2mm Diameter
| Model | WITPKKL |
|---|---|
| Brand Name | WITPKKL |
| Model Name | WITPKKL |
| Manufacturer | WITPKKL |
