12 AWG High Temperature Wire -76°F to 932°F | Mica Fiberglass Insulated Copper Cable, Heat/Flexible Resistant for Heaters, Kilns, Boilers & Lamps(60ft,12 AWG)

Product Parameters:Product Name: GN500 WireRated Temperature Resistance: 500°CRated Voltage: 300/500 VThis mica‑silicone high‑temperature cable is engineered for the toughest industrial environments, delivering reliable performance where ordinary wires fail. At its heart lies a single strand of high‑purity, oxygen‑free copper, providing maximum conductivity with minimal power loss. Surrounding this core, a layer of fluorophlogopite mica tape offers fireproof insulation rated to 500 °C, while a dual glass‑fiber braid ensures exceptional bend endurance and mechanical strength. With tightly controlled dimensions (±0.1 mm tolerance) and low eccentricity, you can trust consistent insulation thickness that prevents current breakthroughs and enhances workplace safety. 1. For product cross - sectional area 0.5 mm² (Approx 20 AWG):Conductor Structure: 7*0.30Outer Diameter: 2.3±0.3 mmConductor Resistance: 39.0 Ω/km2. For product cross - sectional area 0.75 mm² (Approx 18 AWG):Conductor Structure: 11*0.30Outer Diameter: 2.5±0.3 mmConductor Resistance: 26.0 Ω/km3. For product cross - sectional area 1 mm² (Approx 17 AWG):Conductor Structure: 14*0.30Outer Diameter: 2.6±0.3 mmConductor Resistance: 19.5 Ω/km4. For product cross - sectional area 1.5 mm² (Approx 15 AWG):Conductor Structure: 21*0.30Outer Diameter: 2.9±0.3 mmConductor Resistance: 13.3 Ω/km5. For product cross - sectional area 2.0 mm² (Approx 13 AWG):Conductor Structure: 28*0.30Outer Diameter: 3.3±0.5 mmConductor Resistance: 10.0 Ω/km6. For product cross - sectional area 2.5 mm² (Approx 12 AWG):Conductor Structure: 35*0.30Outer Diameter: 3.6±0.5 mmConductor Resistance: 7.98 Ω/km(Note: The AWG values are approximate conversions.)Rated for 300/500 V and available in 0.5–2.5 mm² cross‑sectional sizes, these cabl

• [500 °C Extreme Heat Resistance]Crafted with fluorophlogopite mica tape insulation and dual glass‑fiber braiding, this GN cable thrives in continuous temperatures up to 500 °C—far hotter than your soldering iron’s demographics
• [Premium Oxygen‑Free Copper Core]The single‑core conductor is made from high‑purity, oxygen‑free copper for maximum conductivity and minimal signal loss, ensuring efficient power transmission even under demanding industrial loads

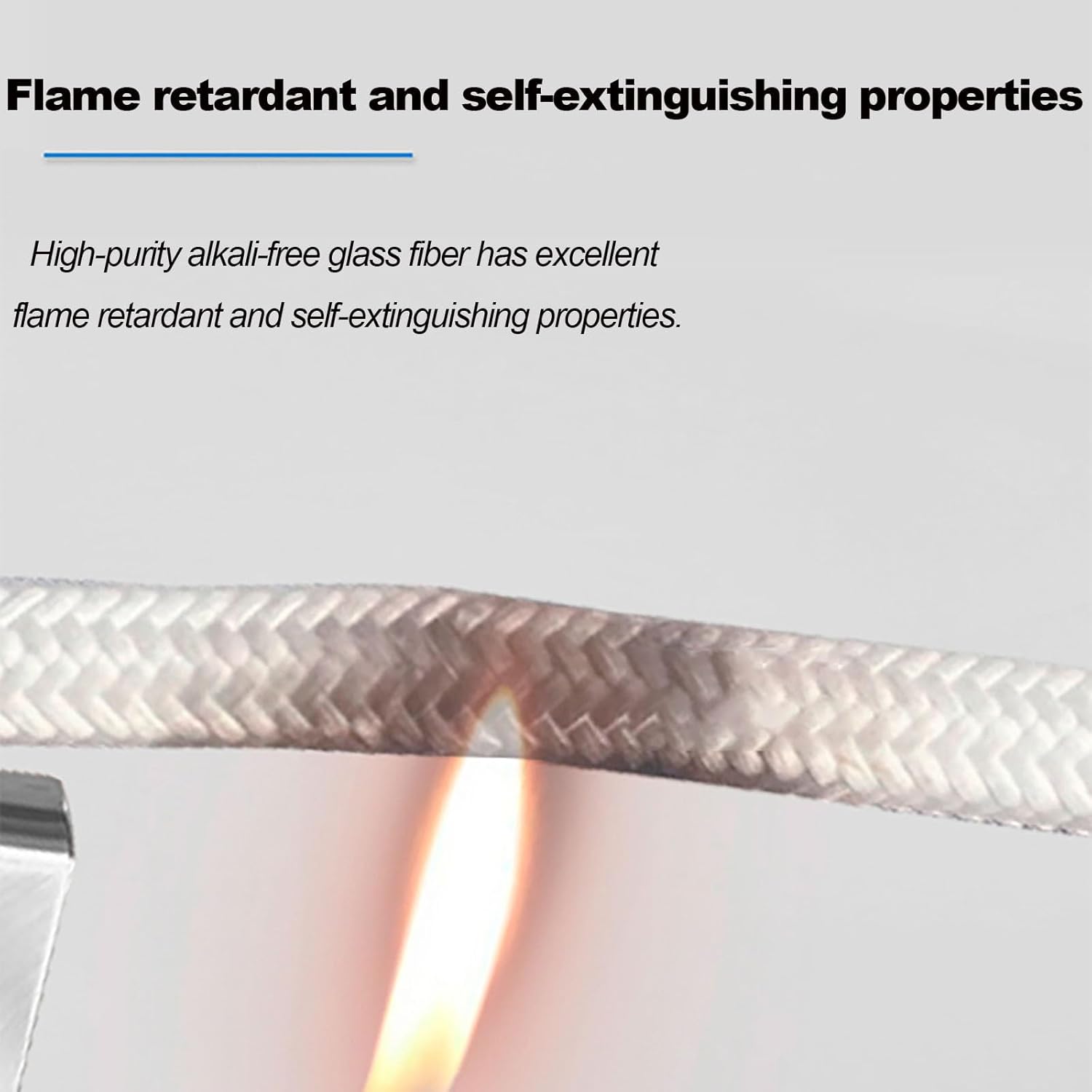

• [Robust Double‑Layer Protection]A mica‑wrapped inner layer combined with an outer alkali‑free glass‑fiber braid delivers exceptional flexibility and bend endurance, resisting repeated flexing without compromising insulation integrity
• [Low Eccentricity & Consistent Quality±0.1 mm outer‑diameter tolerance and uniform wall thickness significantly reduce eccentricity, preventing current breakdown and safeguarding both your equipment and your safety
• [Quality Assurance]We are committed to providing high quality products, it is our priority to let our customers have a good experience, if you have any questions about the use of our mica high temperature wire, please contact us, our team will provide maximum support within 24 hours
