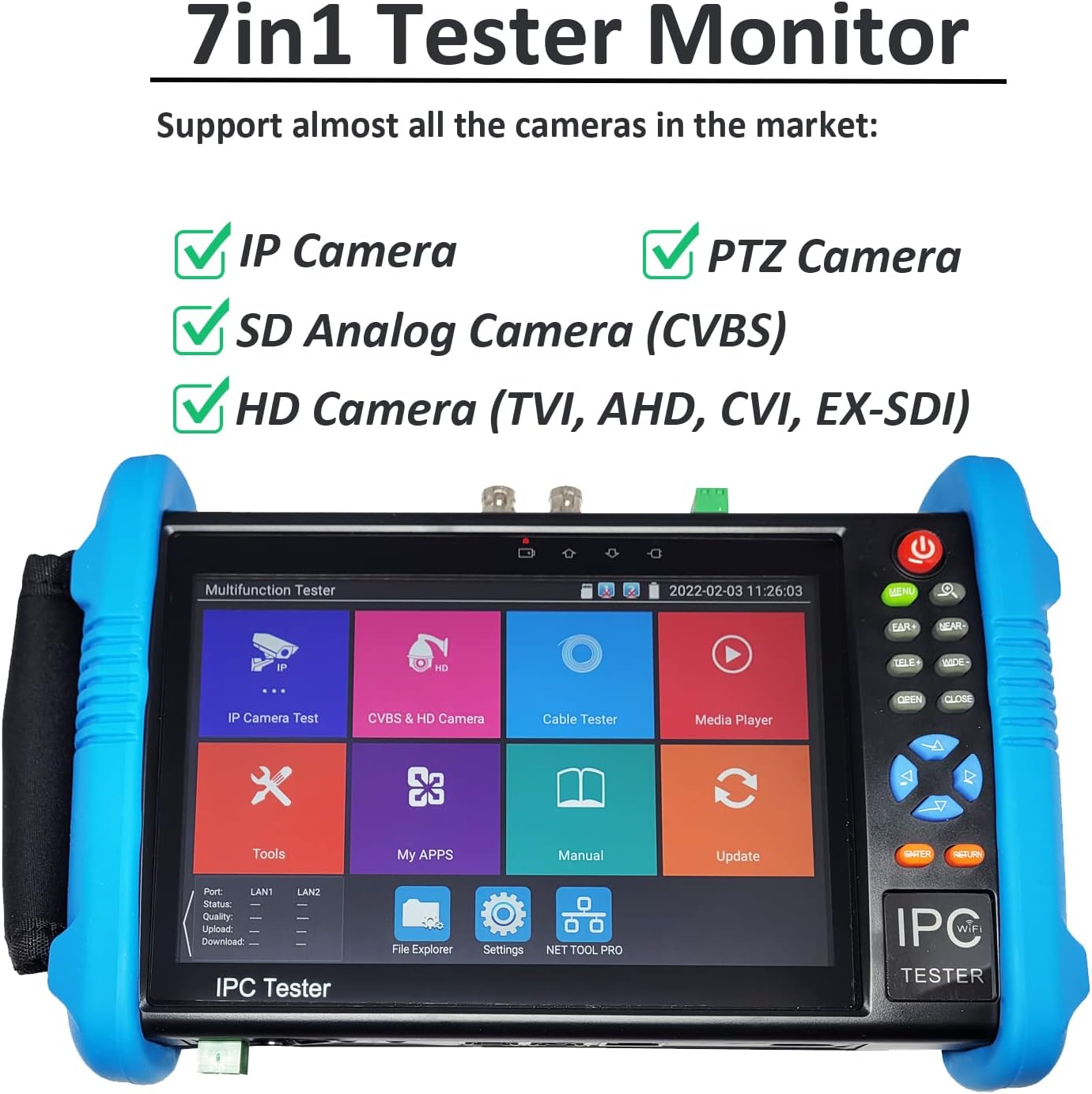

101AV IPS Touch Screen Security CCTV 7” 7in1 Test Monitor Support IP cam, Standard Analog Camera (CVBS) & HD TVI/AHD/CVI Camera up to 8MP

101 Audio Video Inc.101 Audio Video Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.The model TM-R1710-2M is a multi-function CCTV IP&HD tester monitor, which can resolve project problems and make the installation process quicker and more efficient. It is developed for the installation and maintenance of video monitoring system. Utilizing a visual and functional OSD menu, it supports IP camera, Standard 960H Camera & Analog HD TVI/AHD/CVI/SDI/EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.Feature7” touch screen, 1920x1200 resolutionsCompatible with almost all models' IP cameras.Support coaxial HD TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play backBuilt-in WIFI, Support wireless WIFI hotspots.10/100M Lan Port, H.265/H.264, 4K video display via mainstream.PoE DC48V power output, Max power 24W; Support 12V/3A DC and 5V/2A power output.Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.Built in IP SCANNING APP, auto-scan the whole network segment IP, and auto-modify tester’s IP address.UTP cable, telephone cable's sequence and connectivity test.POE/DC12V voltage and power measurement.7.4 V /5000mAh Lithium Ion Polymer Battery, after 6 hours charging, working time lasts 10 hoursWhat's in the Box?7" Touch Scree Tester, (Power Output, Audio Test, BNC, and Crocodile Clip BNC Cable), Cable Tracer, Power Adaptor, User manual, Straps, Storage Bag#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Access control monitor, Alarm monitor, Monitoring monitor.

• 7 inch IPS touch screen, 1920x1200 resolution, 8MP TVI/CVI/AHD, SDI/EX-SDI, 4K H.265 IP, CVBS camera test, H.265/H.264, 4K video display via mainstream
• Work ONVIF IP camera test, auto view video and create testing report
• Built in WIFI, create WIFI hotspot, 10/100/100M Ethernet, network state and traffic display, RJ45 cable TDR test, cable quality test. Also support IP discovery , shortcut button, drop-down menu, UTP cable tester
• Support Quick office (excel ,word ,PPT format ) doc. Tester Play: Tester, android version mobile phone, PC display at the same time, HDMI input & output support up to 1080p
• DC12V 3A, DC48V PoE power output, power measurement, Lithium Ion Polymer 7.4V/5000mAh Battery, working time lasts 10 hours, Battery charge time 6 hours
