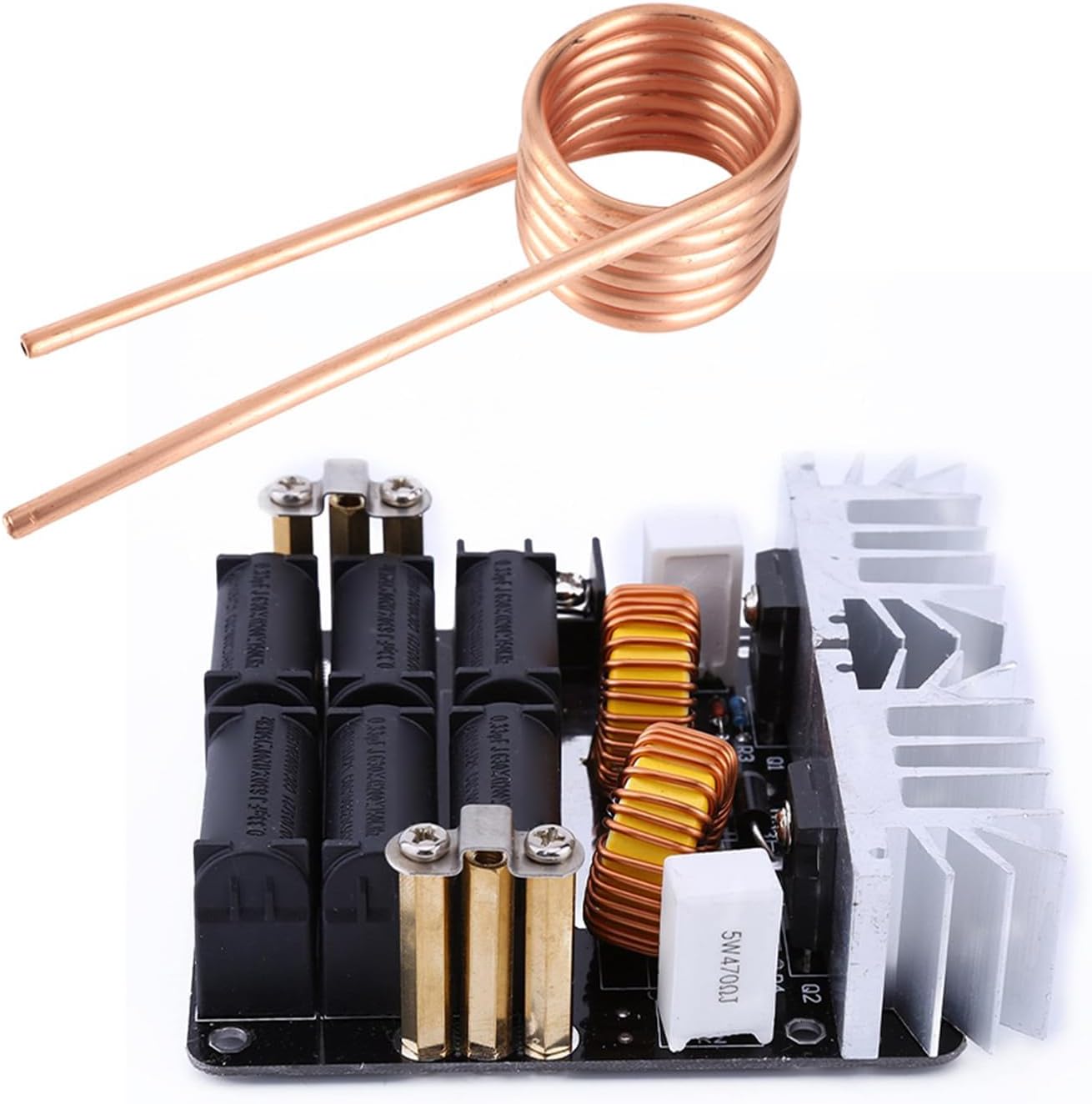

1000W ZVS Low Voltage Induction Heating Board, 12‑48V Heating Module Flyback Driver Heater with Brass Coil for DIY

Specifications: Inside diameter of the coil: 40mmHeight of the coil: 50mm24V input with no load current of 3A48V input with no load current of 6AThe higher the voltage, the greater the heating current when the same thing, the effect is better,But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.It suits 12-36V power supply (not included)The coil accept 40mm crucible.Note:1, The kit contains a full set of driving circuit elements and brass2, Buyers need to bring their own power and cooling unit.3, The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly risingSo the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.4, The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3)Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.1, To increase the heat sink using a customized substrate as thick as 8.5mm!Cooling capacity is very powerful.2, Using the M4 pillars, fever smaller, more efficient. Package Included: 1 x ZVS Low Voltage Induction Heating Board1 x BrassNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Package List：1 x ZVS Low Voltage Induction Heating Board1 x Brass

• ENHANCED COOLING: Induction heater coil kit equipped with a double-sided fiberglass board and widened copper traces, this circuit board supports continuous add a fan for optimal cooling of components
• LOW-VOLTAGE HEATING: This section of induction heating using low-voltage dc power supply 12-48v,maximum current 20a, maximum power 1000w,long-time working power 500-800w
• VERSATILE APPLICATIONS: Low voltage heating module because of its moderate power, the higher the voltage, the greater the heating current, can be used for small parts DIY players do hardening, annealing and other heat treatment, ideal for DIY enthusiasts
• NOTE: The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above
• WIDELY USE: Low voltage zvs induction heating board also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient, resulting in enhanced efficiency for your heating needs
